Meets ADA requirements (power mode).
* See individual series for maximum manual opening.
** Switch provided for continuous Hold-Open (4640 only).
FE
AT
UR
ES
LCN 4640 SERIES
TO
P
JA
M
B
(P
UL
LS
ID
E)
TO
P
JA
M
B
(P
US
H
SI
DE
)
MOUNTING
PA
RA
LL
EL
AR
M
PO
W
DE
R
CO
AT
PL
AT
ED
PL
AS
TI
C
M
ET
AL
N
ON
-H
AN
DE
D
N
ON
-S
IZ
ED
AC
CE
SS
IB
IL
IT
Y*
COVER CYLINDER FINISH
PO
W
ER
OP
ER
AT
OR
CO
N
CE
AL
ED
HO
LD
-O
PE
N
ST
AN
DA
RD
(S
IN
GL
E)
RE
GU
LA
R
(D
OU
BL
E)
EX
TR
A
DU
TY
*ARM FUNCTION
CU
SH
-N
-S
TO
P
SP
RI
N
G
CU
SH
The 4640 AUTO EQUALIZER ™ is LCN’s
SMART & RELIABLE electrically
powered low-energy power
operator. It provides easy access for
people with disabilities, the elderly,
or the frail. Designed primarily for
manual opening applications that
occasionally require automatic
opening.
NEW Digital Control Suite
Utilizes a 10,000,000 Cycle Heavy
Duty Door Closer
On-Board Diagnostics
On-Board Power Supply
Factory-Default Memory
Plug-and-Play Connections
No Destruct Feature
No Guard Rails or Safety Mats
Required
The 4640 Series is UL and cUL listed
with regular arm for self-closing doors
and meets the provisions of ANSI
Standards A117.1, A156.19, and the
Americans with Disabilities Act.
Standard, top jamb (push side) mounted 4640 series closer shipped with
regular arm, metal cover, and wood and machine screw pack. Actuators
available separately, see pages 199-215.
Meets ADA, requirements (power mode).
Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
Non-handed for either right or left swinging door.
4640 has easily accessible switches to provide on/off and continuous hold
open functions. 4640CS provides concealed on/off power switch. Control
module provides all timing and sequential door functions, electric strike
controls and adjustments for opening speed and force.
Standard or optional custom powder coated finish, end caps are black.
Optional plated finish on cover, arm, and fasteners.

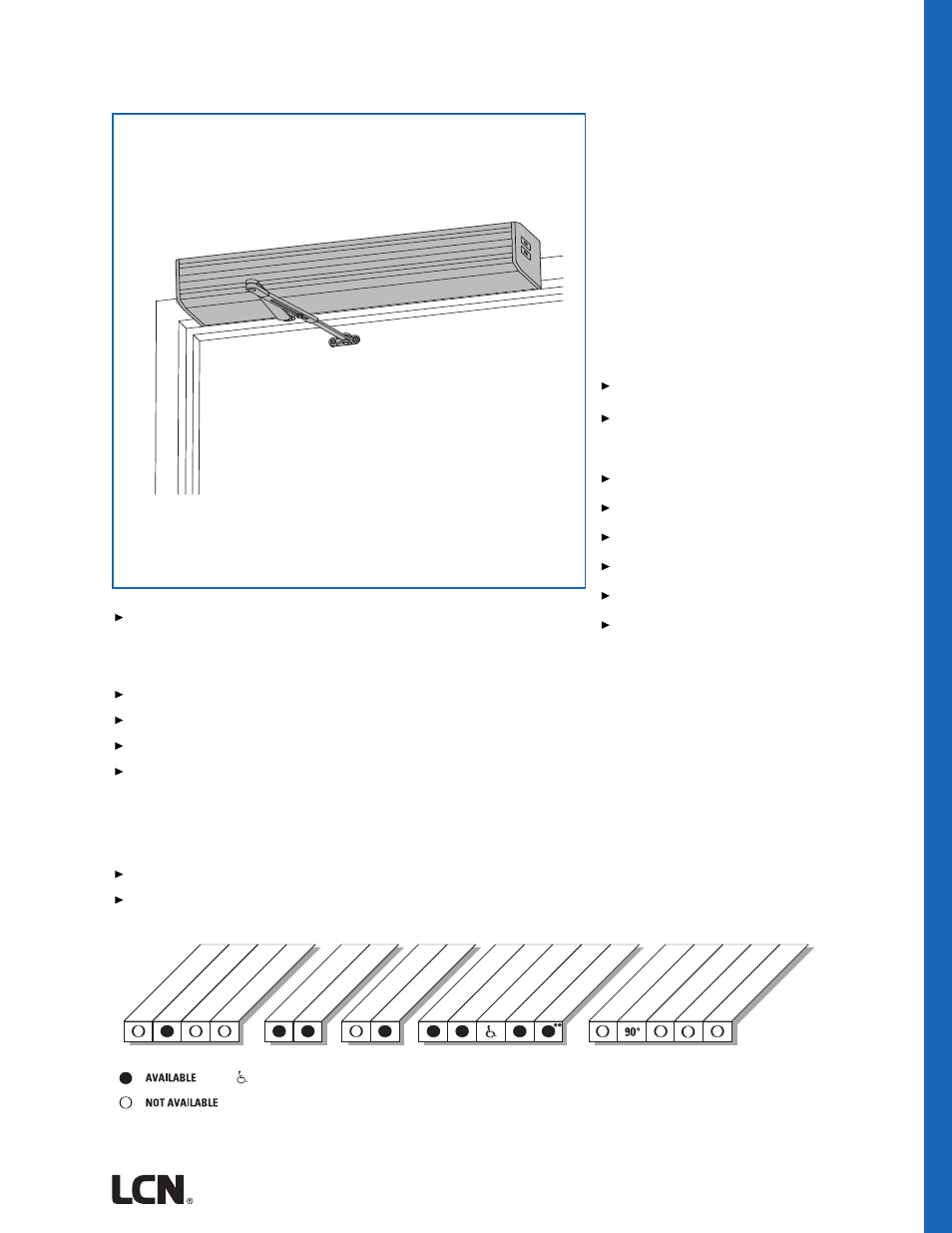

TOP JAMB (PUSH SIDE) MOUNTING
4640 shown
