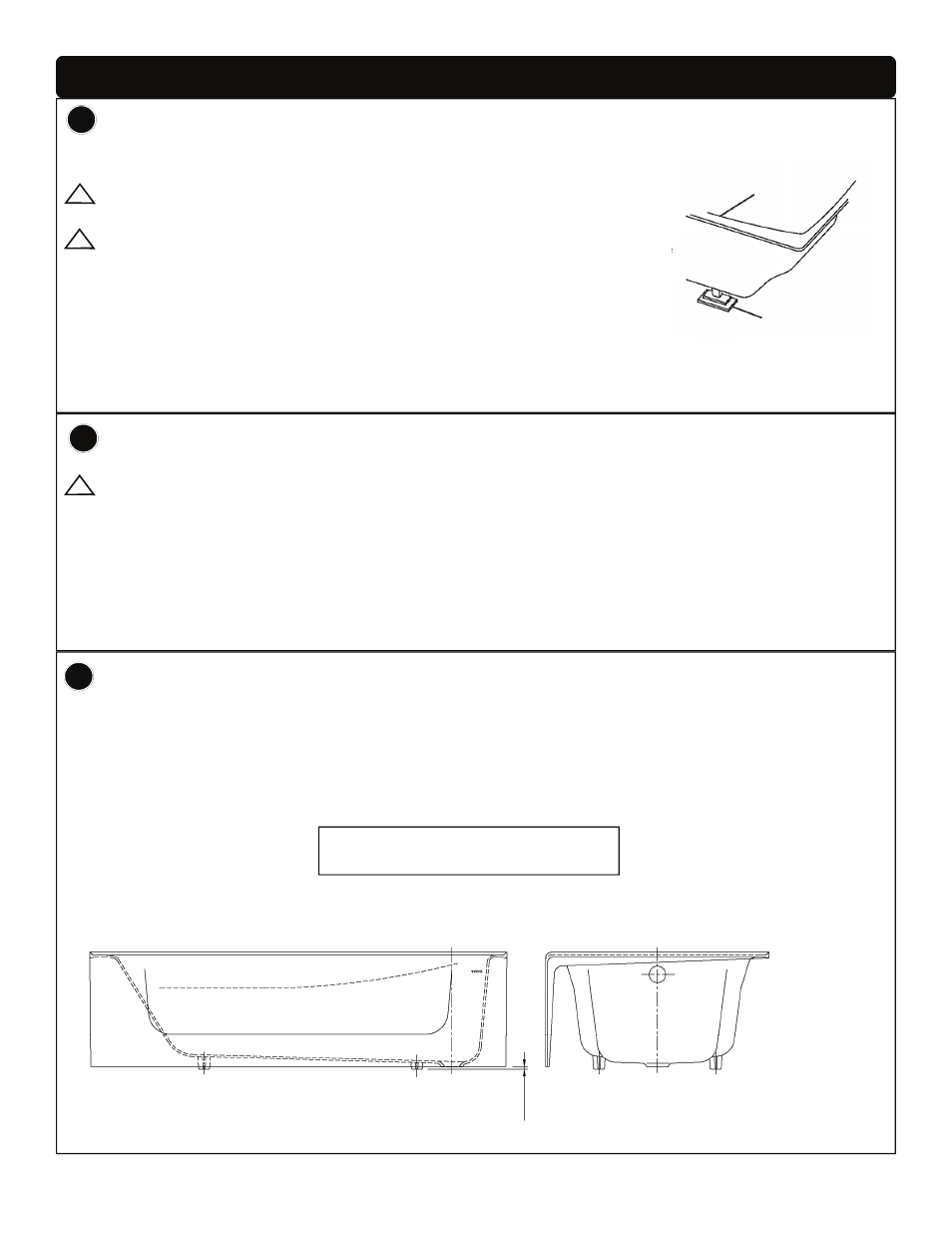

Install Bathtub
• For future maintenance provide proper access to the plumbing areas.
WARNING: Do not lift or move the bathtub without assistance. A
cast iron bathtub is extremely heavy and may cause personal injury.
WARNING: Do not support the bathtub by the rim. Provide ade-
quate support under the bathtub feet.
• With help, carefully place the bathtub into position.
• The bathtub must be resting on all the feet. Level the bathtub by us-
ing metal shims where necessary.
• Verify the bathtub is level by placing a level on the bathtub top sur-
faces in both directions.
!
Installation (continued)
5
Completing the Finished Flooring (Apron models)
• After connecting the drain to the trap add the finished flooring as desired.
• The finished flooring needs to cover over the gap between the apron bottom and the sub-floor.
7
Apron Models
FBY1515, FBY1525 and FBY1715.
!
Level by fitting
metal shims
under the feet
Bathtub top
surface
Install Plumbing
WARNING: Ensure all connections are watertight. This will prevent leaks and property
damage.
• Connect the drain to the trap according to the manufacturer’s instructions.
• Install the faucet valve according to the manufacturer’s instructions.
• Open the water supply and check all connections for leaks.
• Verify there is no leakage at the drain connection.
• Fill the bathtub to the overflow and check for leaks.
6
!
Maximum gap is 10 mm
(3/8”).
