Crown Audio JBL CSMA 180_1120 User Manual
Page 15
15

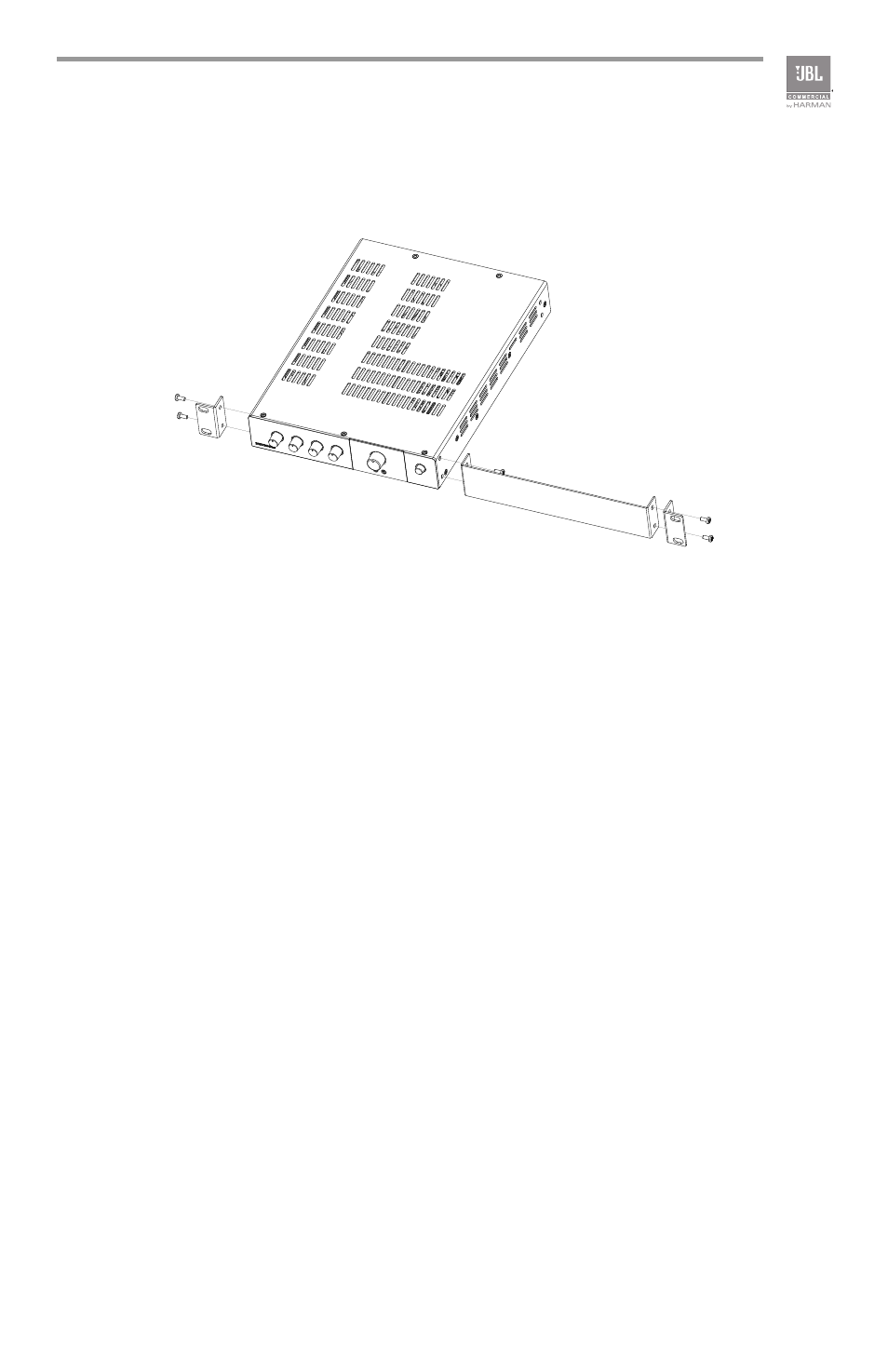

Figure 2.2.4 Rack Mounting a Half Rack Mixer Amplifier
Solution B: Rack Mounting Single Half Rack Mixer Amplifier
To install a single half-rack unit, refer to Figure 2.2.4 and follow the steps below:
1. Determine which side of the rack opening will be used for the amplifier and
attach the long angle bracket to the other side at the front of the amplifier using
the screws provided.
2. Attach the front angle brackets to each side of the front of the assembly, as
shown in the diagram, with the screws provided.
3. Install the assembly into the cabinet using the rack mount screws through the
front angle brackets. For details of installation in the chassis of the cabinet, refer
to the user guide of your cabinet.
