3 operation – Crown Audio XLS Series (2 rack space height with one Speakon connector) User Manual
Page 14
XLS Series Power Amplifiers
page 14
Operation Manual
3.3 Back Panel Controls
and Connectors
G. Power Connector
H. Circuit Breaker
Provides overload protection.
I. Balanced XLR Inputs
Two 3-pin female XLR input connectors are
provided (one per channel).
J. Fans
Provide front-to-back forced airflow for cool-
ing.
K. 5-Way Binding Post Output Jacks
One pair per channel; accept banana plugs,
spade lugs or bare wire. Note: Binding post
outputs on European models come with safety
plugs installed to prevent European power-cord
plugs from being inserted. The top & bottom
entry positions for these connectors should
therefore be used with European models.
L. 4-Pole Speakon Output Connector
One connector is used for the two output chan-
nels. It accepts a 4-pole Speakon connector.
See Page 6, Figure 2.5 and Table 1 for connec-
tor wiring.
3 Operation

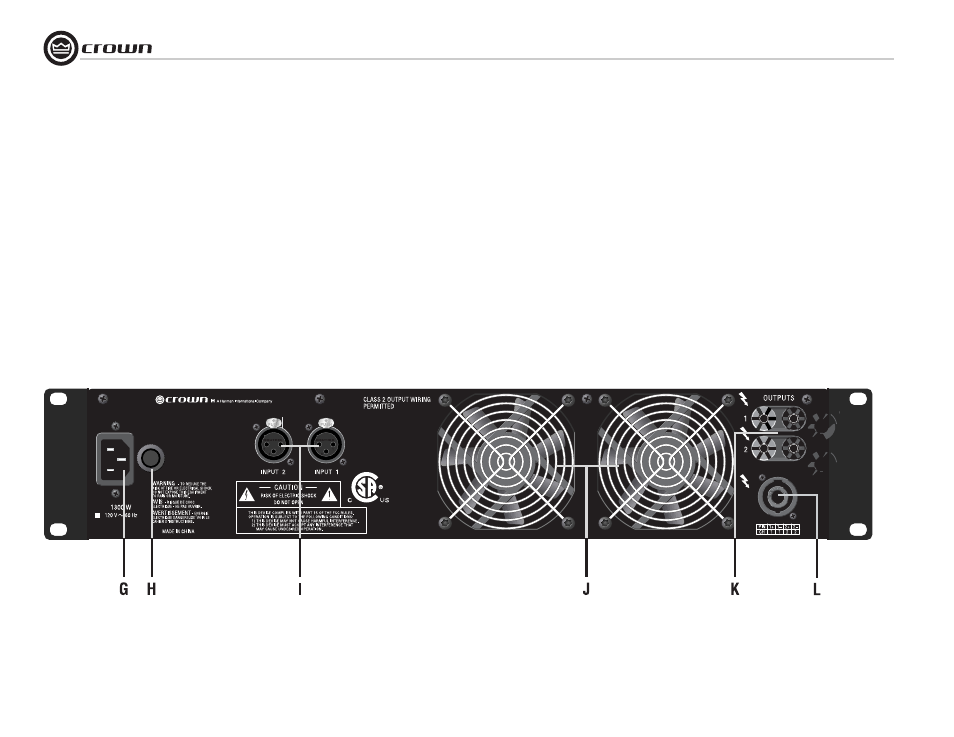

Figure 4.1 Back Panel Controls and Connectors
