page 9
DSi 8M Cinema System Monitor
Operation Manual
L Biamp
C Biamp
R Biamp
Sw Amp
LS/RS Amp
Bsl/Bsr Amp
CINEMA PROCESSOR
MAIN AUDIO
OUTPUTS
OPTION CARD I/O
DB-25
CABLES
DSi-8M
DSi POWER AMPLIFIERS
VGA
CABLES

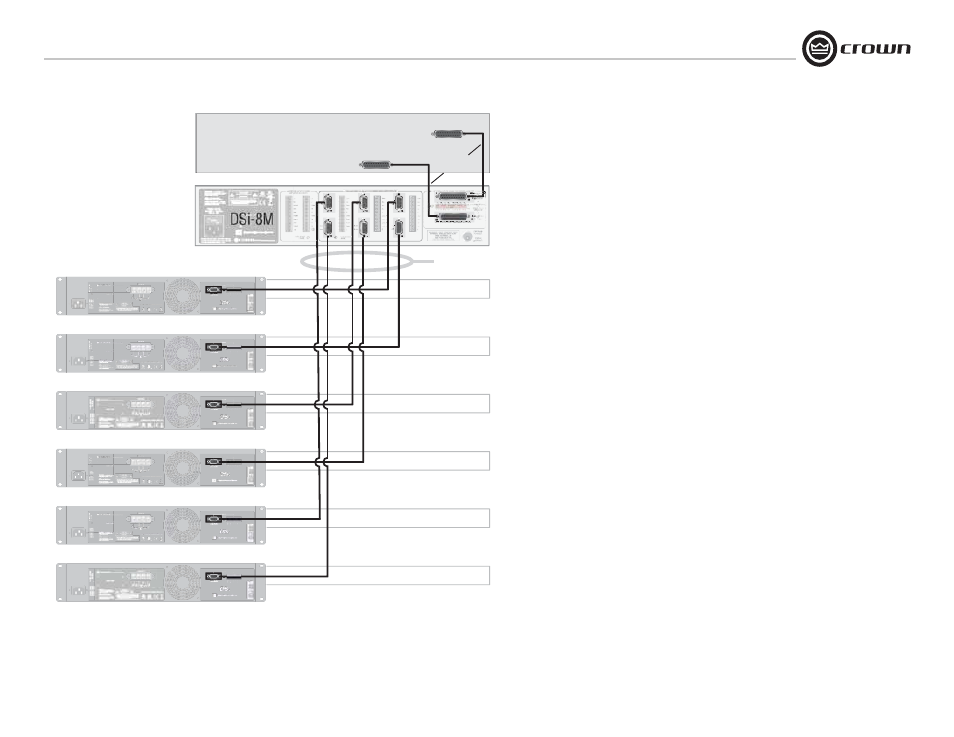

Figure 3.1 Wiring DSi 8M Monitor Panel to DSi Amplifi ers
3 Installation (continued)
2. Connect cinema processor output to DSi 8M input.
See Figure 3-1. Use the male-female 25-pin D cable to connect the
output of the cinema processor to the Main input of the DSi 8M. If
“EX” channels are to be used, plug an additional male-female 25-pin
D cable from the Optional Outputs at the processor to the Optional
Inputs of the DSi 8M.
3. Make DIP switch settings.
Ls/Rs in Main Connector: Set switches 1-4 ON, 5-8 OFF.
Ls/Rs in Optional Connector: Set switches 5-8 ON, 1-4 OFF.
USL JSD-80 processor using:
Bsl/Bsr in Main Connector: Set switches A-D ON, E-O OFF.
Lc/Rc in Main Connector: Set switches A-O OFF.
Lc/Rc and/or Bsl/Bsr in Optional Connector: Set switches E-H ON,
A-D OFF, J-O OFF.
Dolby ® CP-650 processor using:
Le/Re in Optional Connector: Set switches E-H ON, A-D OFF, J-O
OFF.
Lm/Cm/Rm in Optional Connector: Set switches J-O ON, A-H OFF.
