3 installation (continued) – Crown Audio DSi-8M User Manual
Page 12
Operation Manual
DSi 8M Cinema System Monitor
page 12
OUTPUTS TO POWER AMPLIFIER INPUTS
DSi 8M System Monitor
HD-15 I/O connector
DSi power amplifier
HD-15 input
VGA cable

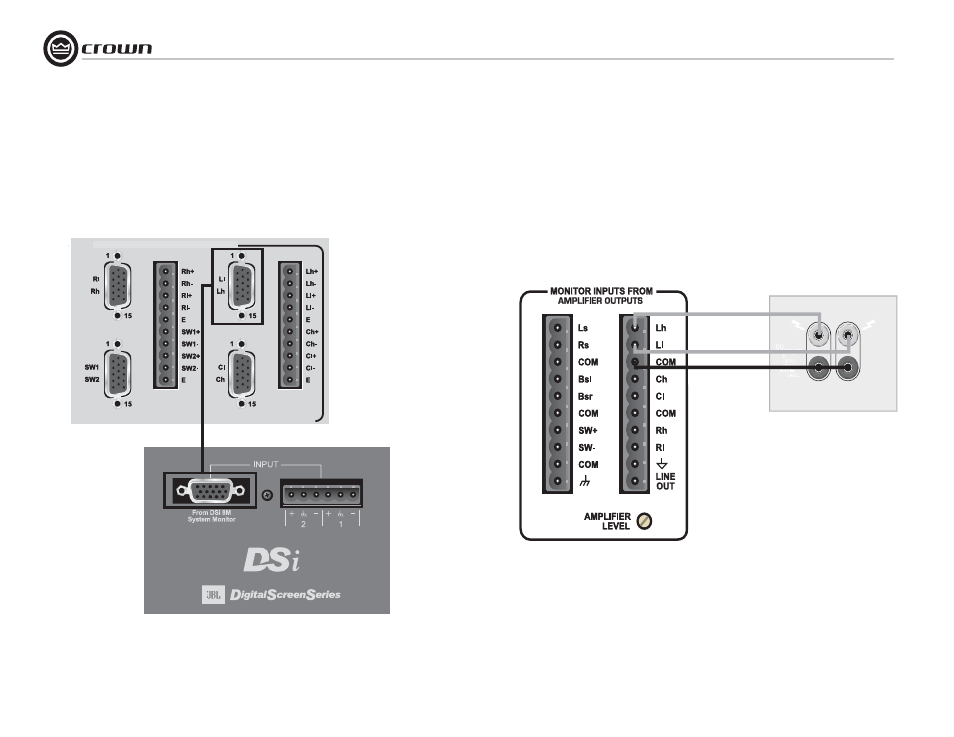

Figure 3.4 Connection to Monitor the DSi Power Amplifi er Output
DSi 8M System Monitor
input connector
Power amplifier outputs
CH-2
CH-1
3 Installation (continued)
5. Connecting DSi 8M inputs to power amplifi er outputs:
two options
Option 1: If you have Crown DSi power amplifi ers, use six VGA
cables as shown in Figure 3.1 and Figure 3.4.
Option 2: Connect the amplifi er loudspeaker outputs to the DSi
8M’s Phoenix input connectors I and J as shown in Figure 3.5.
Unshielded wire can be used. Section 5 gives the connector pin
assignments.
All the inputs on the rear panel are unbalanced except for the
sub woofer input.
Figure 3.5 Using Phoenix Connectors with Non-DSi Amplifi ers
