IQ–P.I.P.-MEM Programmable Input Processor for IQ Systems
The IQ components in a Crown Bus
loop are wired sequentially. The
loop begins and ends with the IQ
interface. The output of one IQ

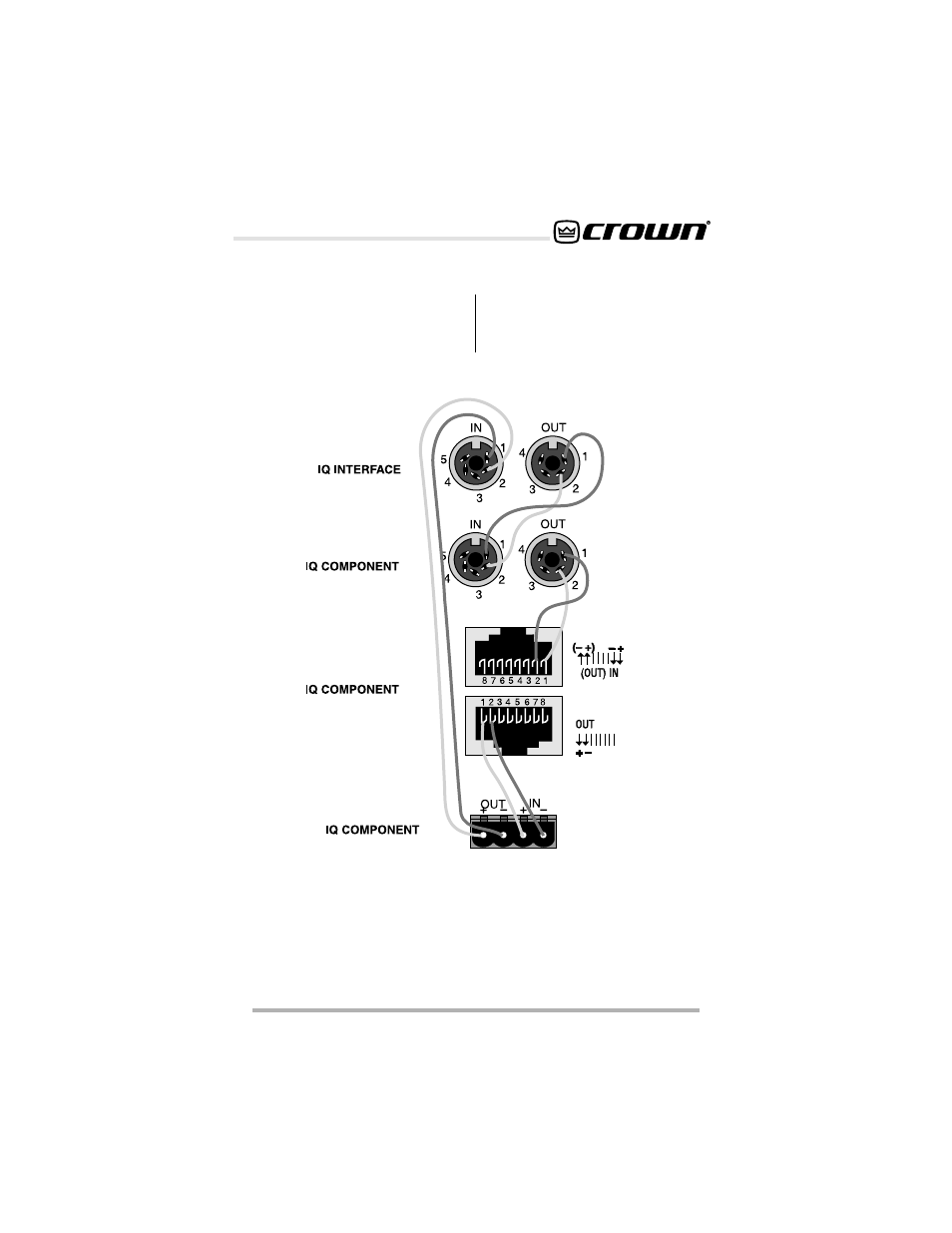

Figure 4.14 Standard Crown Bus Wiring "Loops" from the Output to the Input
of each IQ Component
component “loops” to the input of
the next and so on as shown in
Figure 4.14.
