Page 10 Reference Manual
IQ–P.I.P.-MEM Programmable Input Processor for IQ Systems
Front View
2 Facilities
A. Mounting Screws
The IQ–P.I.P.-MEM is secured to the
back panel of the amplifier with two
phillips-head screws and star-tooth
lock washers. The lock washers are
required for proper ground connec-
tion.

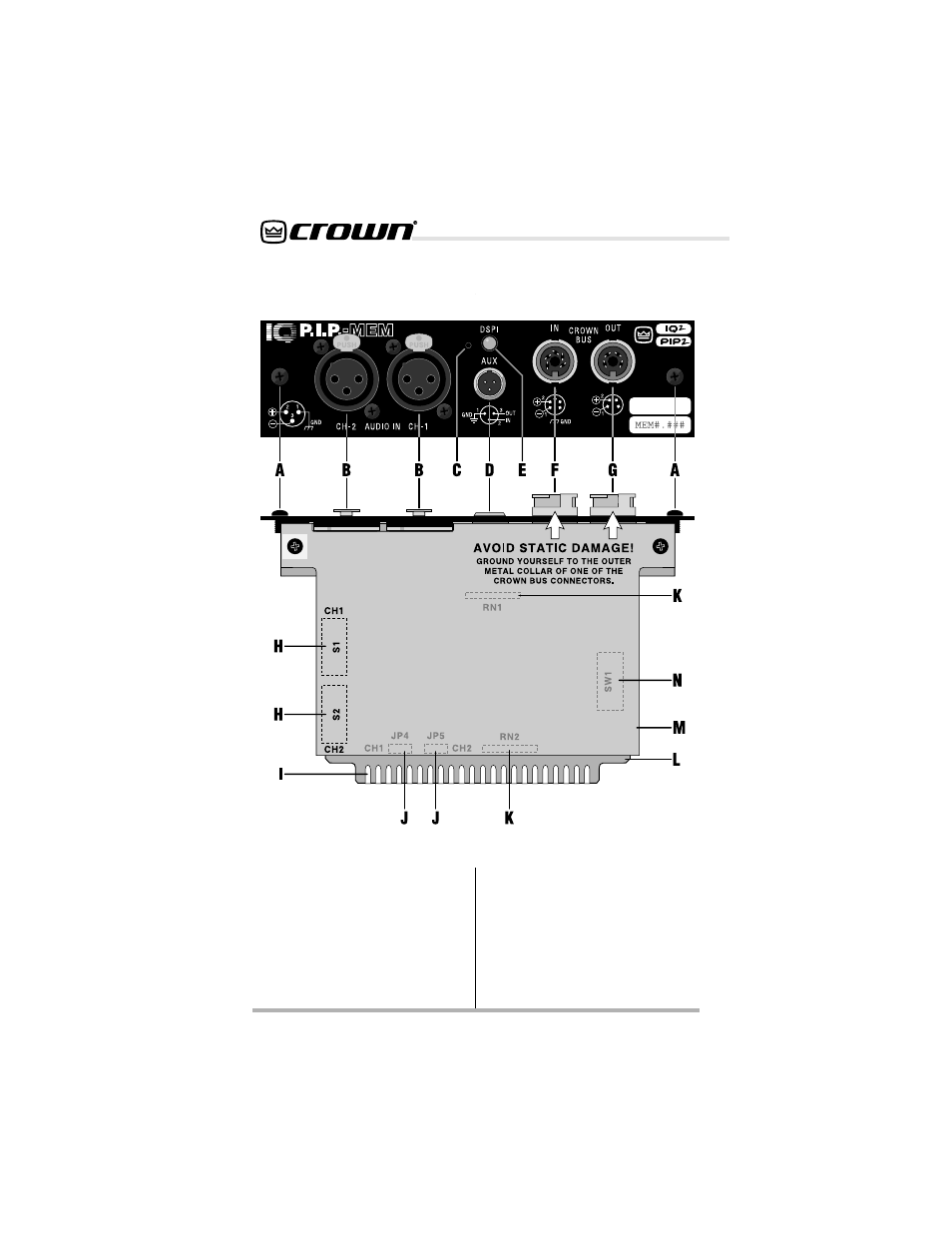

Fig. 2.1 The IQ–P.I.P.-MEM Facilities
Bottom View
B. Balanced Audio Inputs
A 3-pin female XLR connector is
provided for balanced audio input
to each channel of the amplifier. Pin
1 is chassis (gnd); pin 2 is not in-
verted (+); and pin 3 is inverted (–).
Do not use the Ch.2 input if the am-
plifier is configured in either Bridge
or Parallel-Mono mode.
