5 Accessories
There are two accessories available at the time of this
printing: the
MT-XLR and the MT-BB. Important: The MT-
XLR and MT-BB must be installed at a Crown Factory
Service Center or the Crown factory.
5.1 MT-XLR
The MT-XLR is an accessory panel that provides two
standard 3-pin female XLR input connectors. The
MT-XLR accessory makes it easy to quickly change
connections in a system that uses standard XLR con-
nectors. It can also be used in systems that need to
daisy chain an input signal from one amplifier to an-
other. Because the MT-XLR connectors are in parallel
with the amplifier’s built in phone connectors, an input
signal fed to either input can be fed to another amplifier
from the unused connector for that channel.
5.2 MT-BB
The MT-BB is an accessory panel that provides barrier
strip input connectors. An MT-BB accessory might be
desirable in applications requiring bare wire connec-
tions. It can also be used to daisy chain an input signal
from one amplifier to another just like the
MT-XLR.
MT-BB
– + – +
C H - 2 I N P U T C H - 1 I N P U T

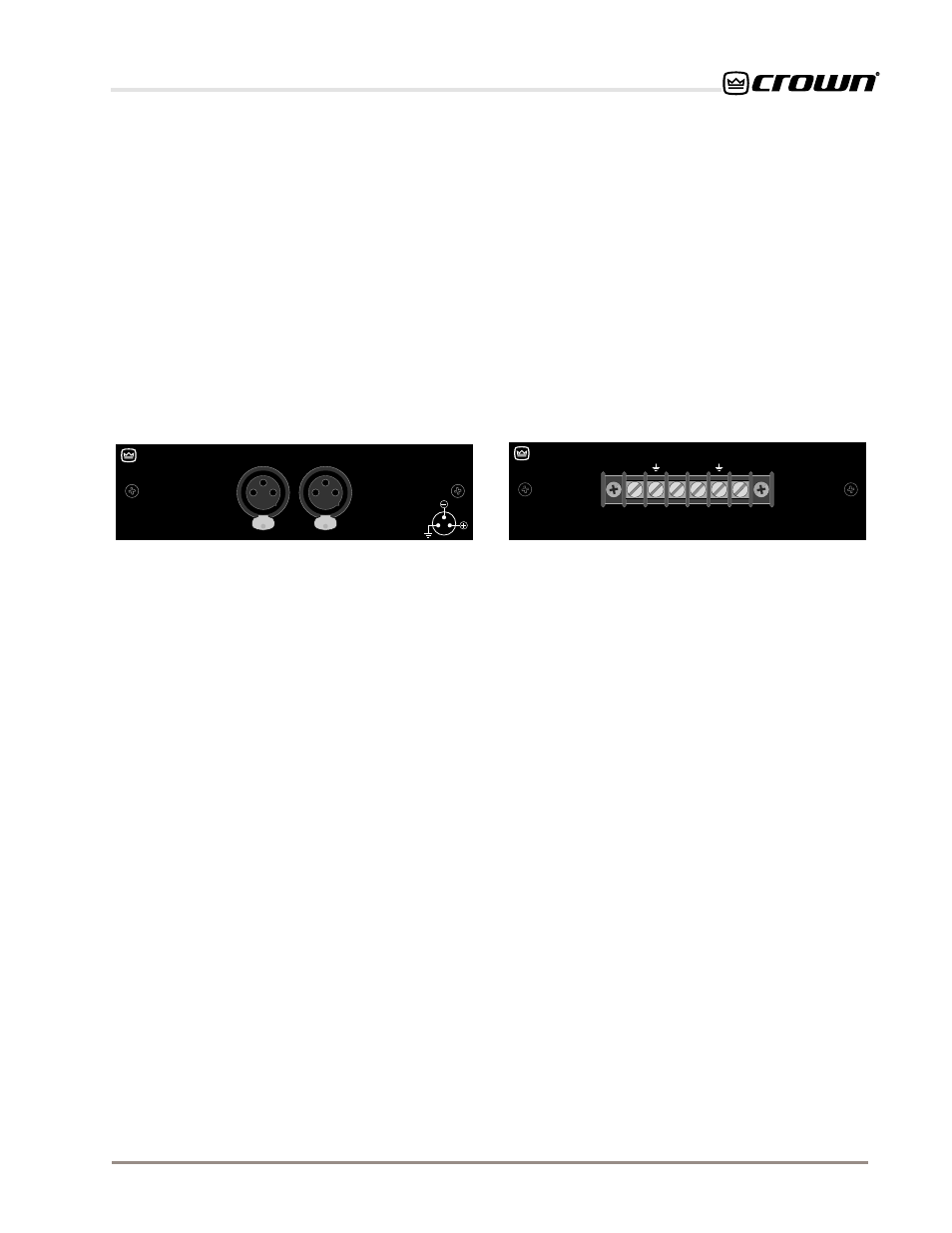

Fig. 5.2 The MT-BB
MT-XLR
C H - 2 I N P U T C H - 1 I N P U T
PUSH PUSH
3
1 2 GND
THESE XLR INPUTS ARE CONNECTED IN PARALLEL WITH THE PHONE JACK INPUTS.
Fig. 5.1 The MT-XLR
