XLi Series Power Amplifiers
page 9 Operation Manual

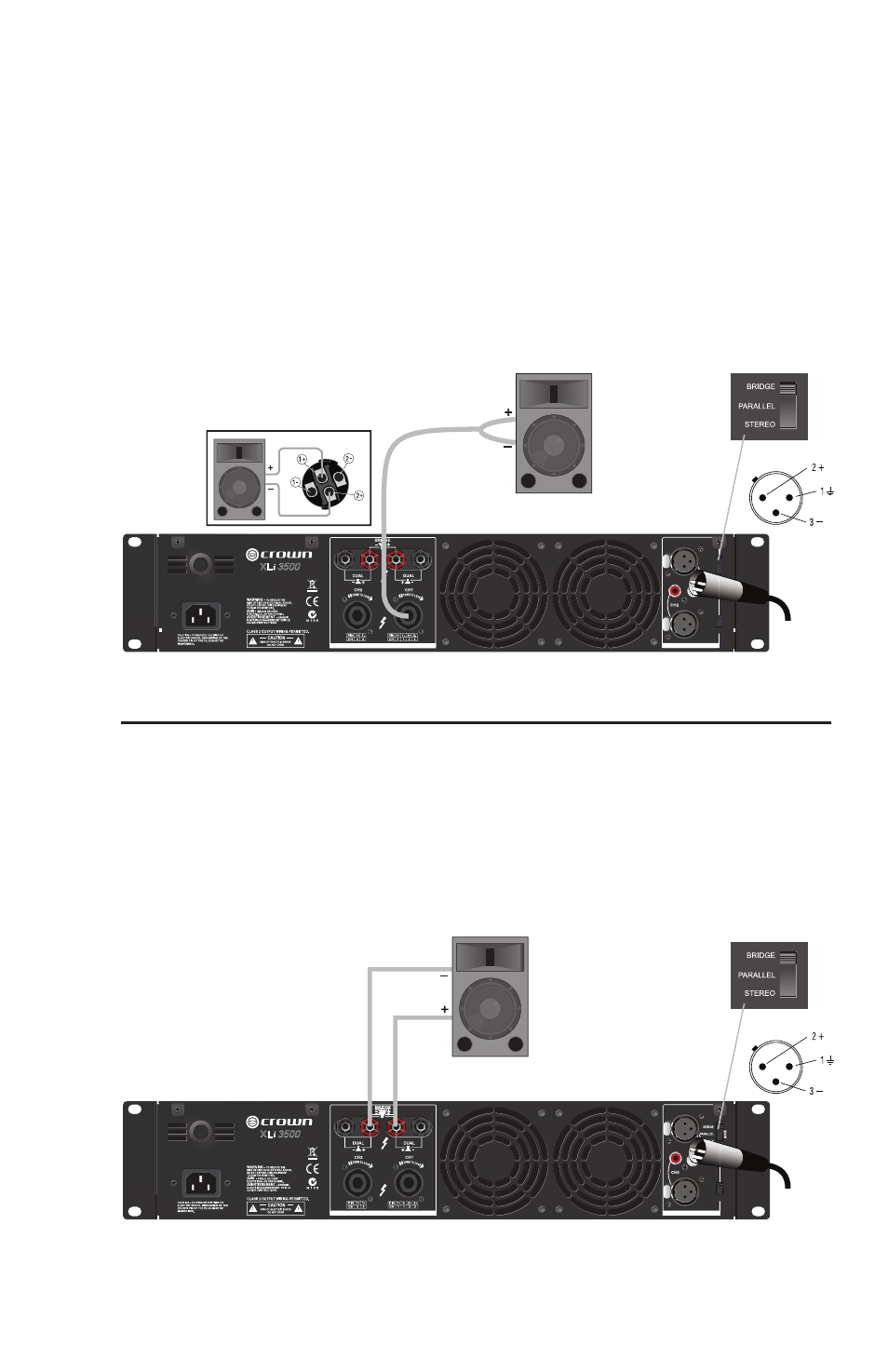

Bridge-Mono Wiring Using the Speakon ® Connectors
Bridge-mono mode doubles the output power of the amplifier.
1.
See Figure 5. On the back panel, set the Output Mode Switch to BRIDGE.
2. Wire the speaker to the Speakon ® connector as shown.
3. Only the Channel 1 Gain Control works in Bridge-mono mode.
Bridge-Mono Wiring Using the Binding Post Connectors
Bridge-mono mode doubles the output power of the amplifier.
1.
See Figure 5. On the back panel, set the Output Mode Switch to BRIDGE.
2. Wire the speaker to the binding post connectors as shown.
3. Only the Channel 1 Gain Control works in Bridge-mono mode.
Wiring
INPUTS
STEREO
PARALLEL
BRIDGE
RESET
UTPUTS
3500 XL
SE SITI IT
ODE
220V ~ 50/60Hz 700W
Professional Audio Amplifier
Manufacture: Crown Audio Inc.
Made in China
INPUTS
STEREO
PARALLEL
BRIDGE
RESET
UTPUTS
3500 XL
SE SITI IT
ODE
220V ~ 50/60Hz 700W
Professional Audio Amplifier
Manufacture: Crown Audio Inc.
Made in China
