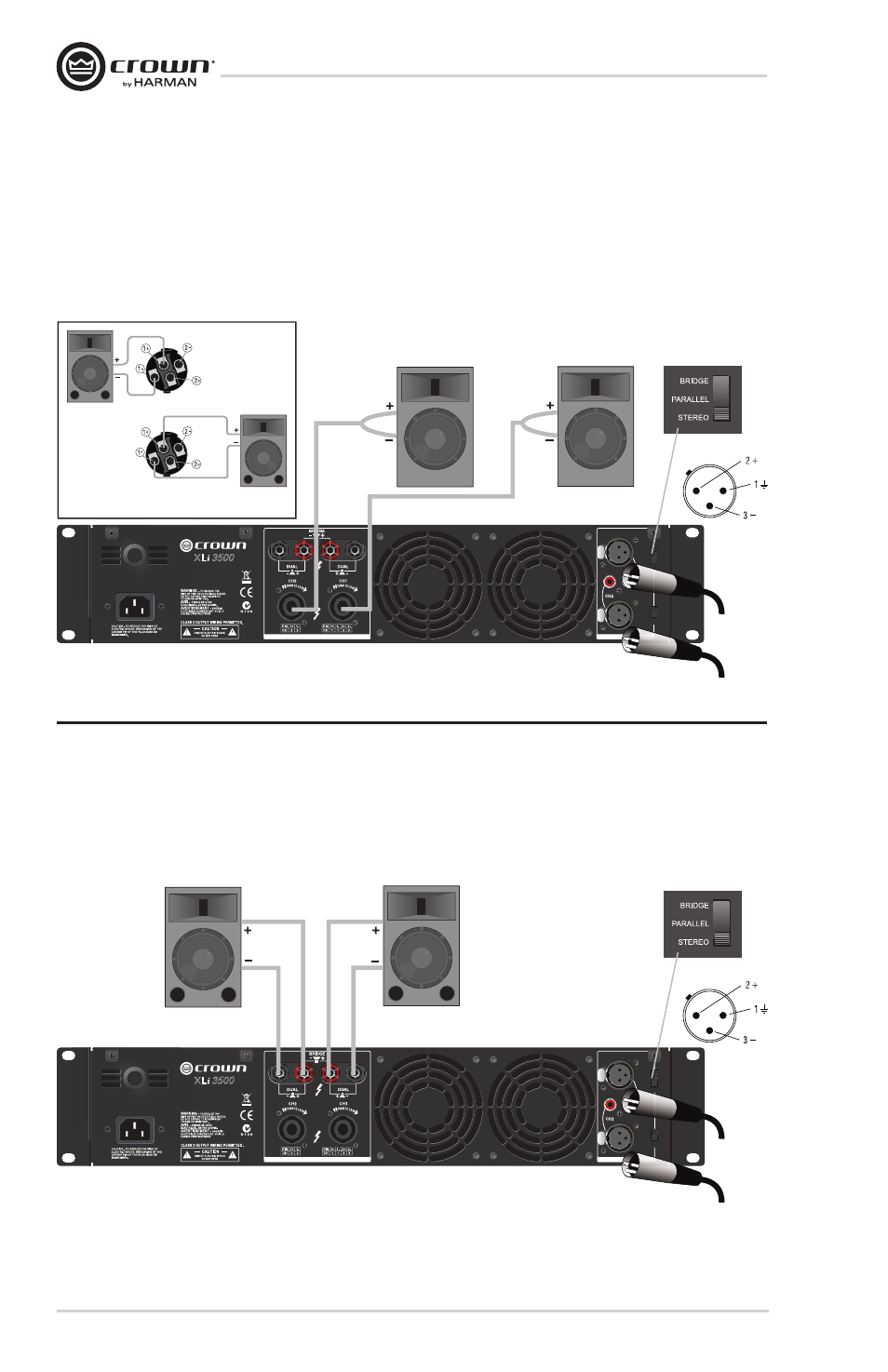

Stereo (Dual) Wiring Using the Speakon ® Connectors
1. See Figure 3. On the back panel, set the Output Mode Switch to STEREO.
2. Wire the speakers to the Speakon ® connectors as shown.
Wiring
Stereo (Dual) Wiring Using the Binding Post Connectors
1. See Figure 4. On the back panel, set the Output Mode Switch to STEREO.
2. Wire the speakers to the binding post connectors as shown.
