2 Facilities
A. Input Connectors
A balanced XLR connector is
provided for input to each chan-
nel. The pin assignments are
labeled on the face of the
P.I.P.
Refer to your amplifier Owner’s
Manual for wiring details.
CAUTION: Input channel 2
should NOT be used in either
mono mode, and its level con-
trol should be turned off (fully
counterclockwise).
B. DIP Switches (S1, S2)
A nine-segment DIP switch is
provided for each channel.
Segments 1–6 select the sub-
sonic corner frequency and
segments 7–9 configure the
compressor. S1 controls chan-
nel 1; S2 controls channel 2.
C. Compressor Threshold
Each channel’s compressor
threshold can be adjusted with
these controls. They set the

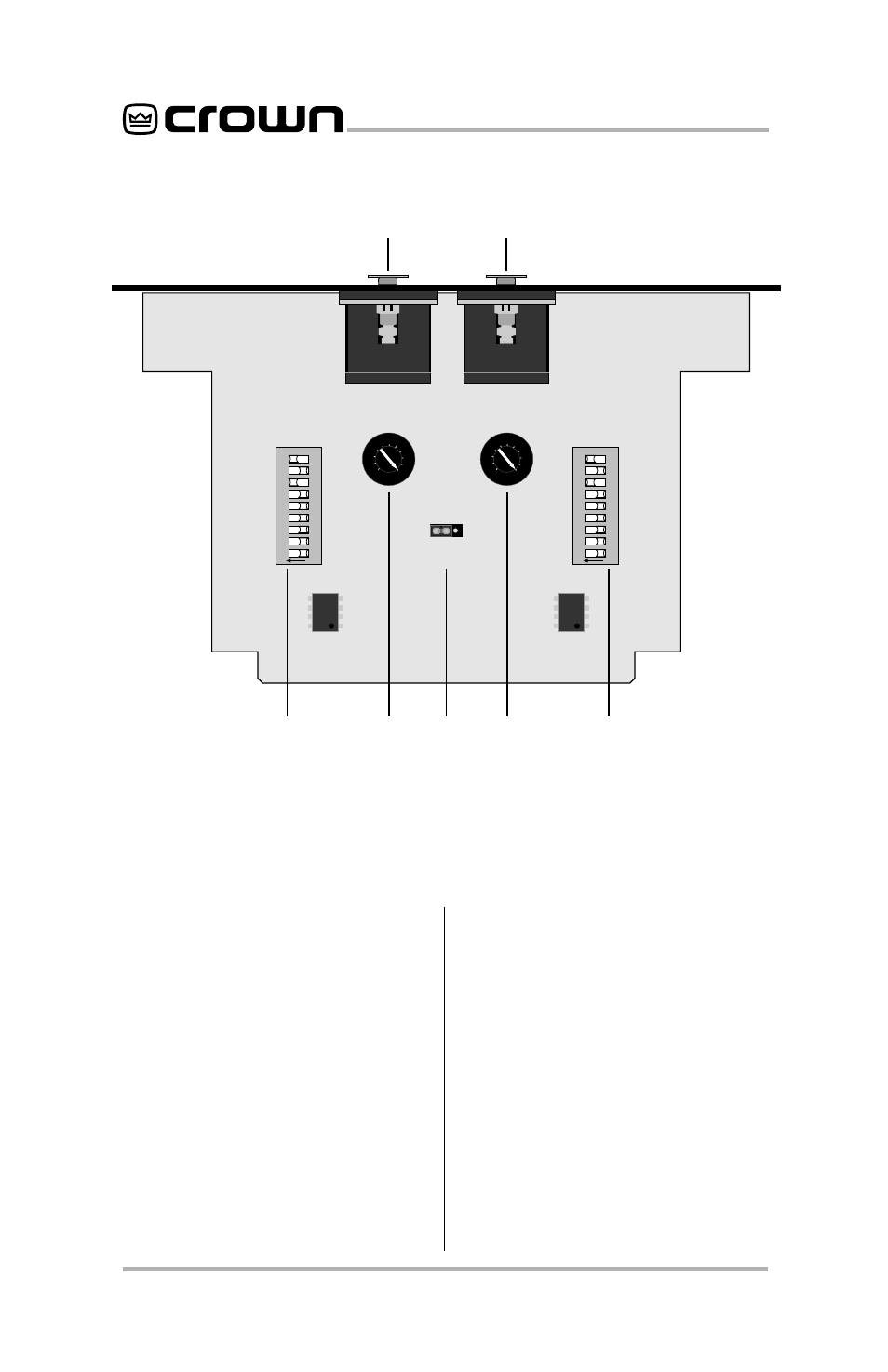

Fig. 2.1 P.I.P.-EDCb (Bottom View)
12345
ON
6789
S2
12345
ON
6789
S1
Z1
ON OFF
COMPRESSOR
TRACKING
A A
10
0
5
10
0
5
B C D C B
