P.I.P.-XOV
Appendix B:
Reading Component Values
Capacitors
Capacitors’ values are usually stamped on the capacitor. However, not all
capacitors are labeled the same way. For example, a 0.022 microfarad
(µF) capacitor may be marked as .022 K, 22n, .022 µF, or 223 K. The last
example could be read 22 x 10
3 picofarads (pF), where 1 pF=10 6 µF.
Resistors

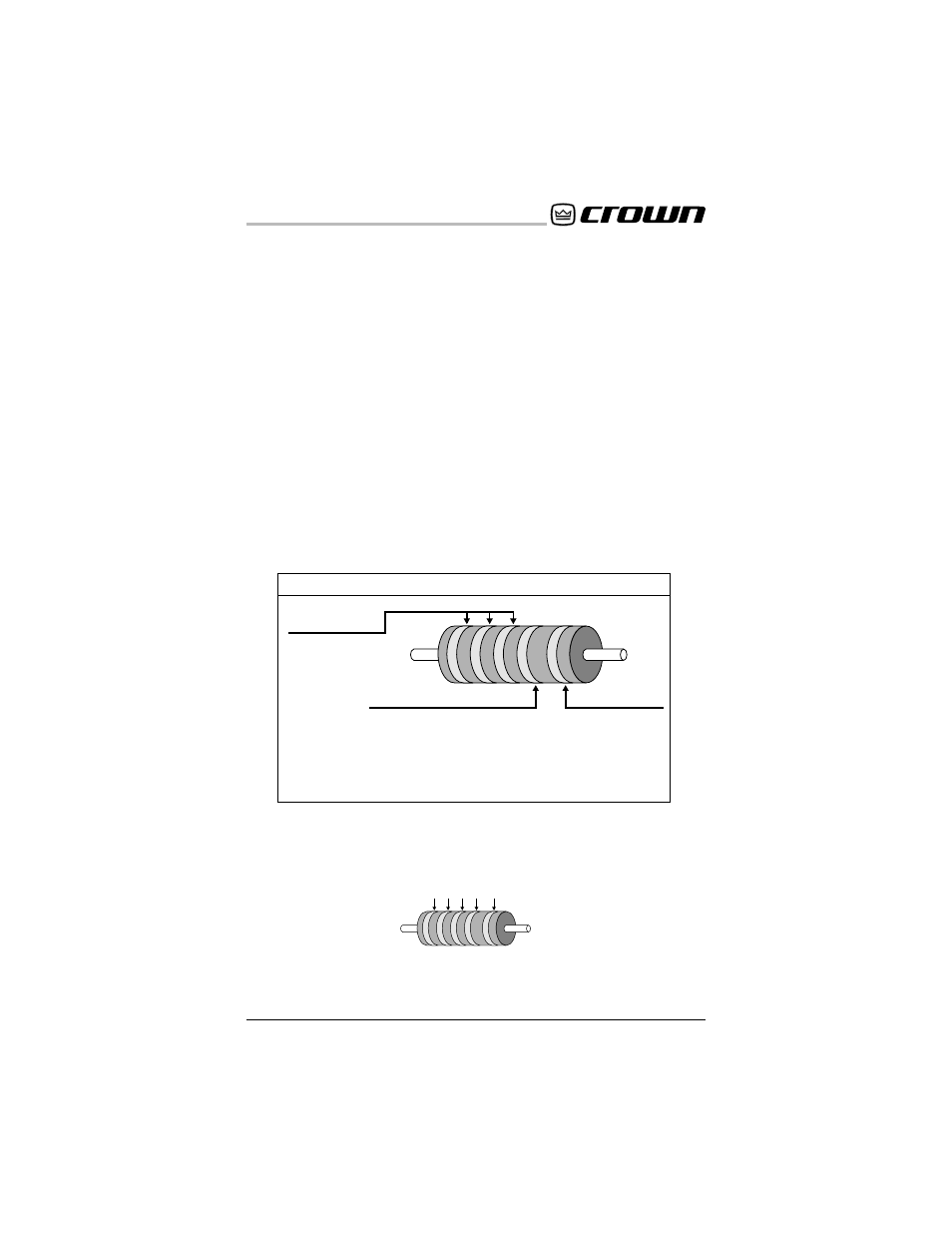

Figure B.1 shows how to read the value of a resistor:
R E S I S T O R C O L O R C O D E
SIGNIFICANT FIGURES
(1st, 2nd, 3rd BANDS)
BLACK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
O
1
2
3
4
5
6
7
8
9
BLACK
BROWN
RED
ORANGE
YELLOW
1
10
100
1,000
10,000
GREEN
BLUE
VIOLET
GRAY
WHITE
100,000
1,000,000
10,000,000
100,000,000
1,000,000,000
MULTIPLIER (4th BAND) TOLERANCE (5th BAND)
SILVER
GOLD
RED
BROWN
10%
5%
2%
1%
1% tolerance resistors are recommended.
Resistors with 5% or 10% tolerance have two (instead of three) significant figures.
The third band is the multiplier and the fourth is the tolerance.
EXAMPLE:
WHITE GREEN ORANGE BROWN BROWN
9 5 3 10 1% x
ANSWER:
9530 OHMS (OR 9.53 K OHMS)
WITH 1% TOLERANCE
Fig. B.1 Reading Resistor Color Codes
B-1
