1 Welcome
Thank you for purchasing the
Crown
P.I.P. ® -XOV accessory.
PIP TM modules are designed to
quickly install in the rear panel
of many Crown amplifiers. PIP
stands for “Programmable Input
Processor.” Their versatile fea-
tures expand the capabilities of
your amplifier and enable you to
customize it for your particular
needs.
The P.I.P. -XOV is a versatile and
economical mono crossover filter
that plugs into Crown amplifiers
with PIP compatibility. It provides
high-pass and low-pass filters
with 18 dB/octave (3rd order)
slopes for bi-amp and tri-amp
systems.
Five two-position sliding switches
make it easy for the user to se-
lect one of twenty-four modes of
operation.
Plug-in resistor and capacitors
make it easy to change the cross-
over frequencies.
Features
❏ 18 dB/octave high-pass and
low-pass filters.
❏ User-selectable Butterworth,
Bessel, or Chebyshev response.
❏ Fully protected from output
shorts.
❏ Unity gain.
❏ Very economical.
❏ Twenty-four modes of operation.
❏ Both 3-pin XLR connectors and
1 / 4 -inch phone jacks are provided
for input and output connection.

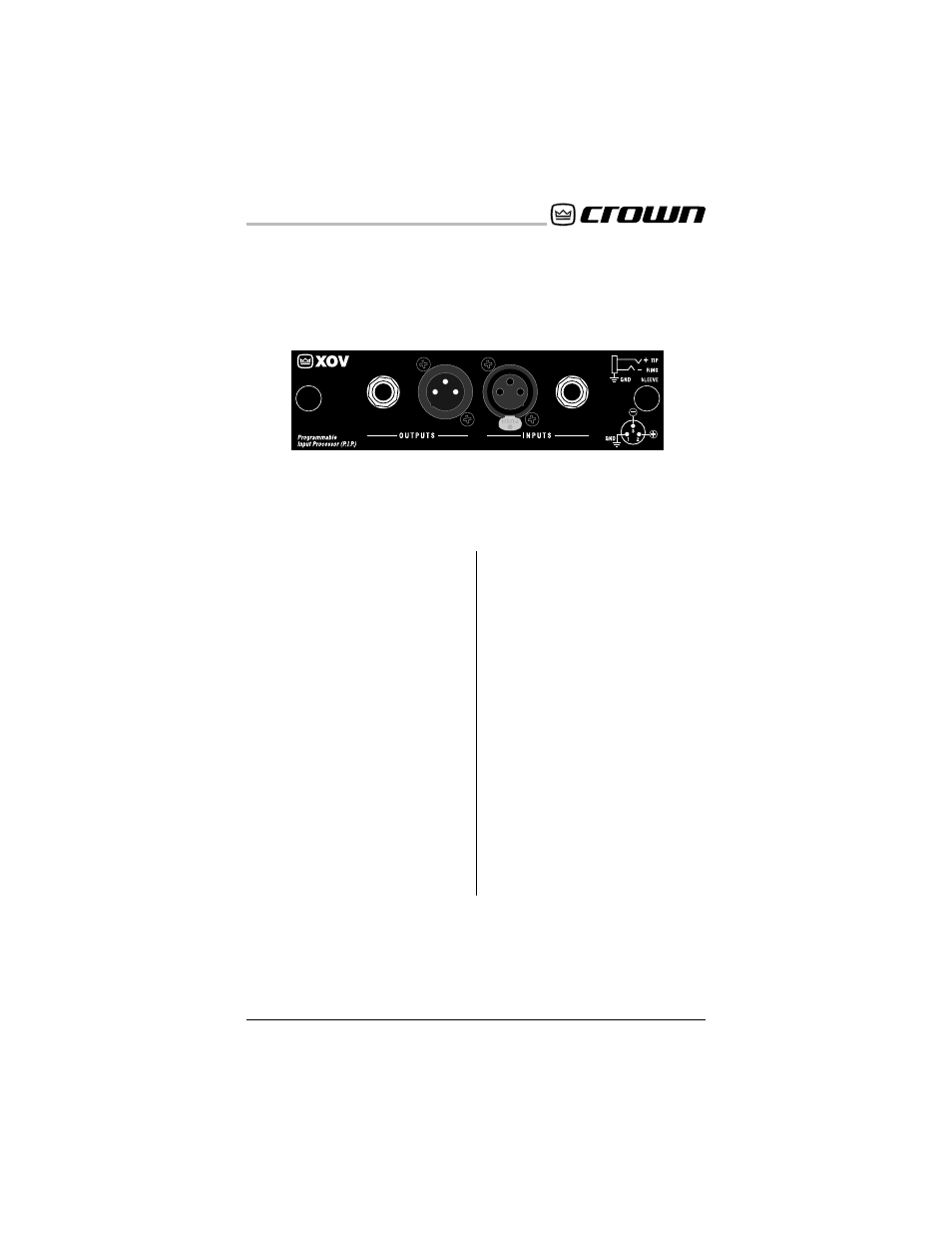

Fig. 1.1 P.I.P.-XOV
