P.I.P.–BEQ
Page 14
sert the assembly into the P.I.P.
opening in the back of the ampli-
fier.
4. Tighten the two P.I.P. mounting
thumbscrews.
5. Connect input and output wiring.
6. Plug in the amplifier and turn it on.
Adjust its level controls to a de-
sired setting. (In Dual mode, the
level controls can now be used to
balance the low and high fre-
quencies.)
Do not tamper with the circuitry.
Circuit changes made by unautho-
rized personnel, or unauthorized
circuit modifications are not al-
lowed.
Remember: Crown is not liable for
any damage resulting from over-

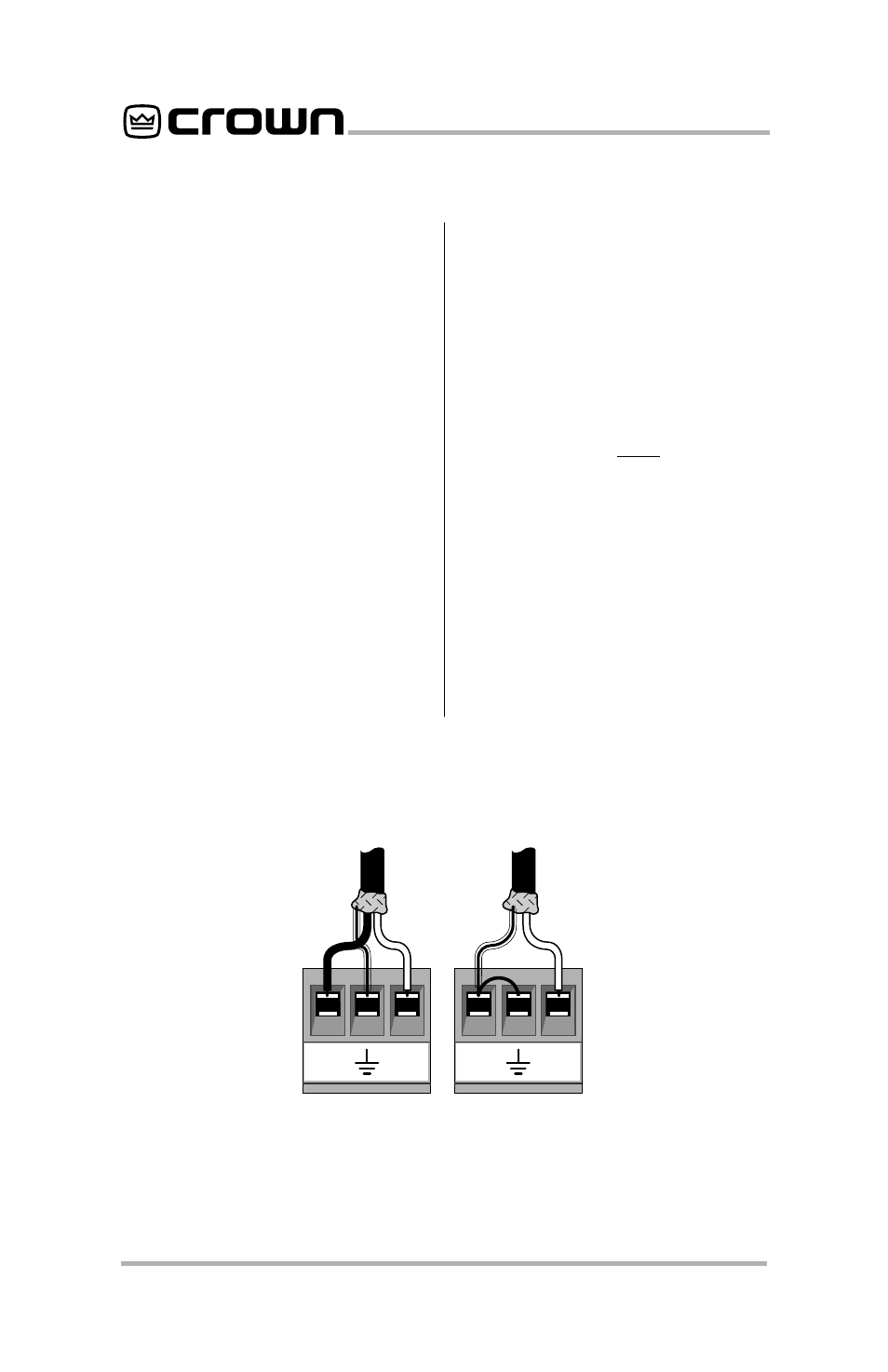

Fig. 3.20 Audio Wiring
– + – +
BALANCED
SOURCE
UNBALANCED
SOURCE
driving other components in your
sound system.
Figure 3.20 shows how to wire a
balanced and unbalanced source
or daisy-chain output to the barrier
block connectors.
Important: If the amplifier is used
in either Bridged-Mono or Parallel-
Mono mode, you must turn the Ch.
2 amplifier level control off (fully
counterclockwise). The input and
level control of Ch. 2 are not de-
feated in mono mode so any signal
applied to Ch. 2 will beat against
the signal in Ch. 1.
Refer to the amplifier Reference
Manual for more information about
Bridged-Mono or Parallel-Mono
modes of operation.
