P.I.P.–BEQ
Page 12
20
5
0
-5
-10
-15
-20
dB
10 100 1000 10000
Frequency (Hz)
100000
10
15
20
5
0
-5
-10
-15
-20
dB
10 100 1000 10000
Frequency (Hz)
100000
10
15
20
5
0
-5
-10
-15
-20
dB
10 100 1000 10000
Frequency (Hz)
100000
10
15
3.1 Biamping
Those who are not familiar with Bose
products may need to understand
that Bose handles the biamping of its
loudspeaker products in a different
manner than the traditional industry
practice. Standard industry practice
is to split the audio bandwidth into two
discrete sections divided by 2nd-
order (12-dB/octave) or steeper filters
(see Figure 3.12).
20
5
0
-5
-10
-15
-20
dB
10 100 1000 10000
Frequency (Hz)
100000
10
15
The way Bose uses the biamp desig-
nation does not limit the bandwidth
passing to the upper (high pass) sec-
tion; however, it does lower the level
of bass equalization employed (see
Figures 3.13 and 3.14). The additional
bass energy required is then derived
from the 502B subwoofer( see Fig-
ures 3.25 and 3.16).

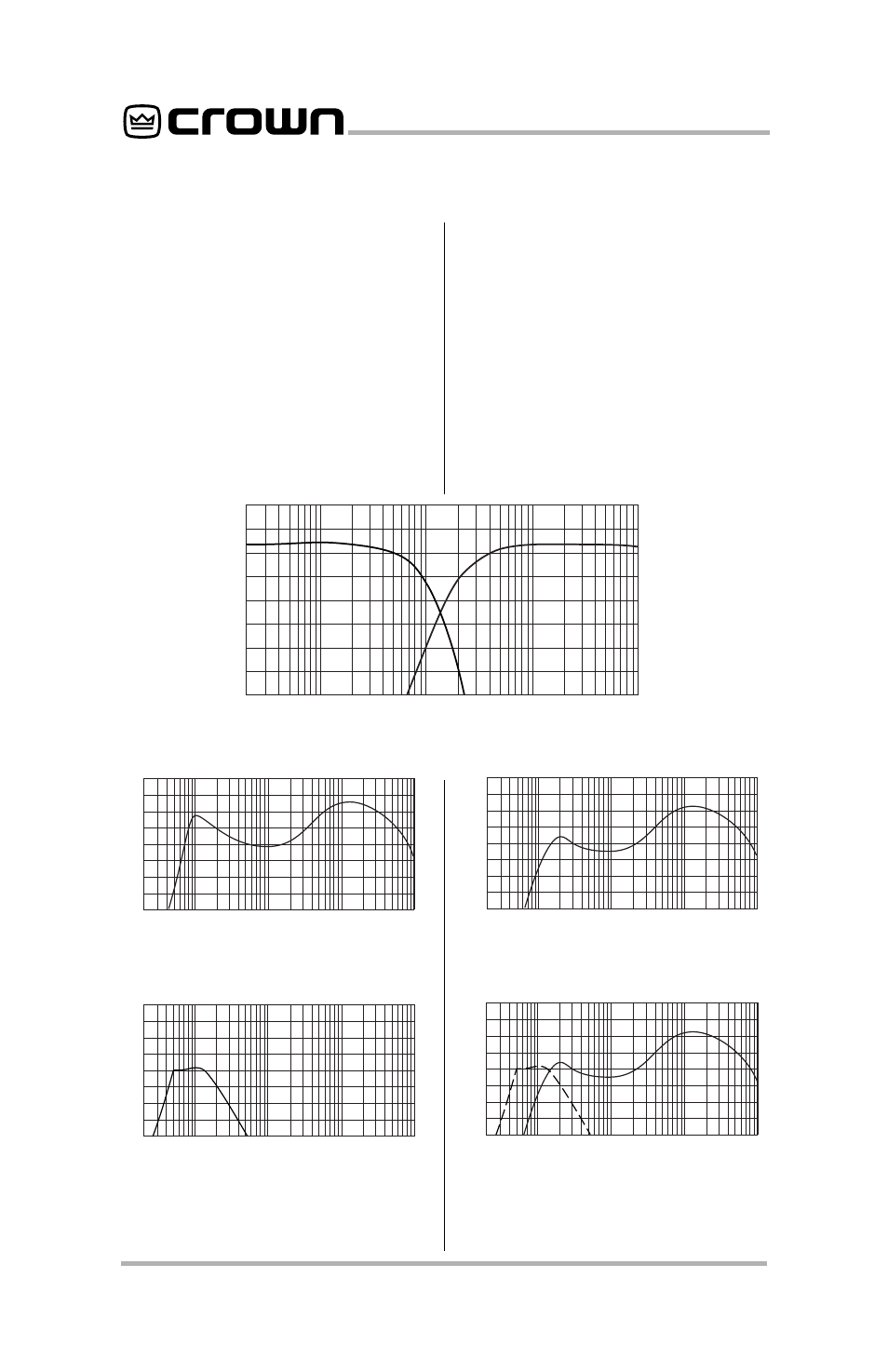

Fig. 3.12 Traditional Industry Practice for Biamping
20
5
0
-5
-10
-15
-20
dB
10 100 1000 10000
Frequency (Hz)
100000
10
15
Fig. 3.13 Typical Bose Full-
Range Response
Fig. 3.14 Typical Bose
Biamplified Response
Fig. 3.15 Bose 502B
Subwoofer Response
Fig. 3.16 Typical Bose
Response Using 502B for Bass
Supplement
