Factory Direct Hardware Schlage FE595PLY626JAZ User Manual
Page 9
15

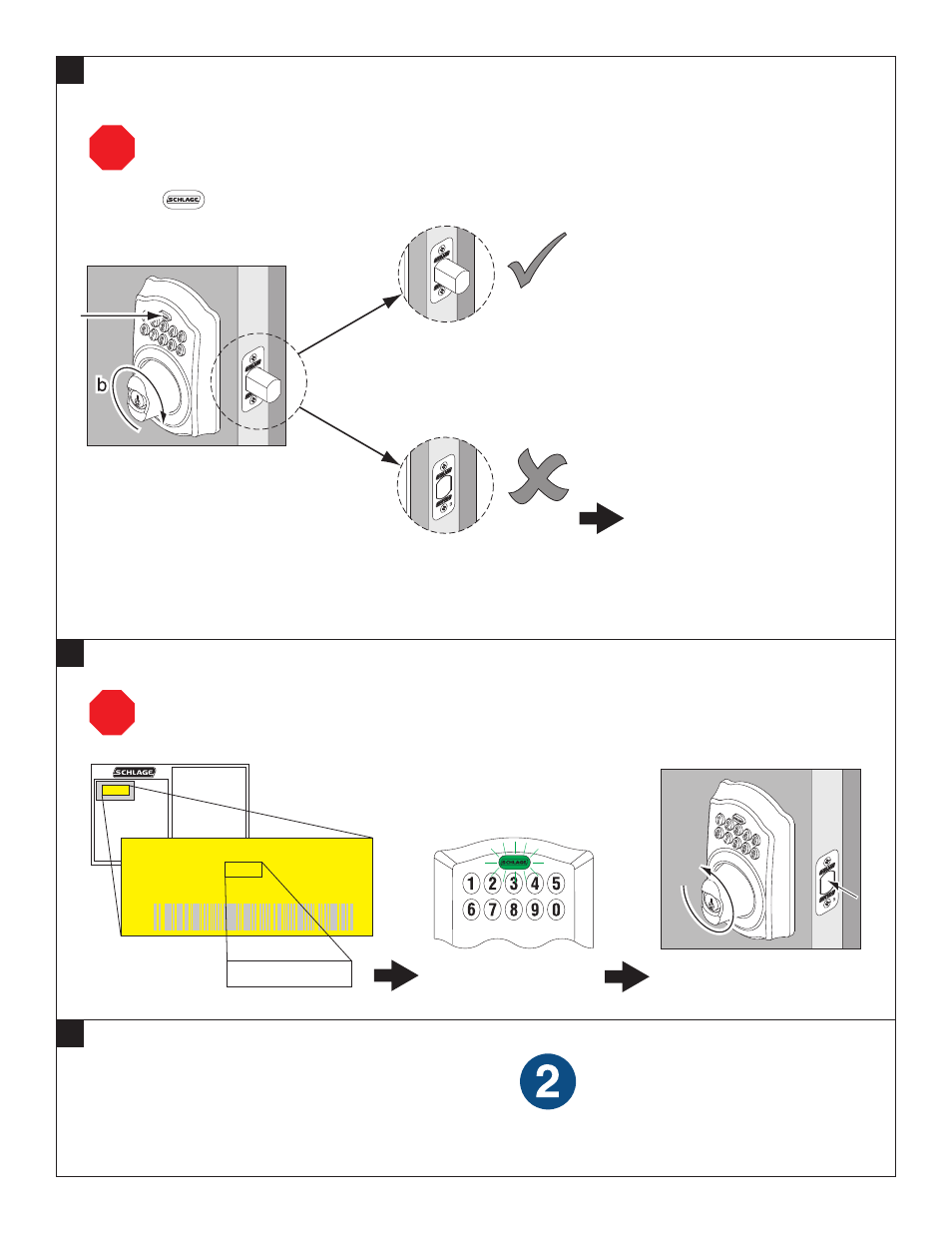

Test Locking Function
Make sure that the bolt extends as shown in the “correct” drawing below.
OR
Incorrect
Correct
If bolt does not extend, remove
lock from door. Follow steps5-10 to
reinstall lock.
Pay special attention to step 7. The
cam orientation is the most likely
source of a problem.
a. Press
b. Rotate turn towards
door edge until bolt extends
a
16
Test Unlocking Function
Press (four numbers)
Programming Code XXXXXX
User Code A xxxx
User Code B xxxx
S/N x-xxxxxxxx
Model BE369
on keypad
Green flash = unlock
Rotate turn away from door
edge and bolt will retract
Follow the directions on document to continue setup.
!
Test with door open to
avoid being locked out!
!
Test with door open to
avoid being locked out!
17
This portion of the setup is complete.
Document 2 is located at part2.schlage.com.
