Preparation/Assembly
6
8
6
Install spout to spout shank:
Slide back canopy from spout end. Insert spout into the spout
mounting shank. Tighten set screw with Allen wrench provided.
Slide canopy to spout trim ring.
7
Thread the sleeve onto the handle valve. Slide the escutcheon onto
the sleeve until it is against the wall. Install handle. See 7A & 7B.
A. For lever handle, install handle and secure with screw. Insert Index
button. (See image 7-2)
B. For Spiral handle, install handle canopy and secure with screw
(see image 7-3). Install and align handle wire, and secure by
tightening set screw with Allen wrench provided
(see image 7-4). Install handle knob.
8
Remove the aerator, and turn on hot and cold water for 1 minute
each to flush the lines. Turn faucet off, and replace aerator.

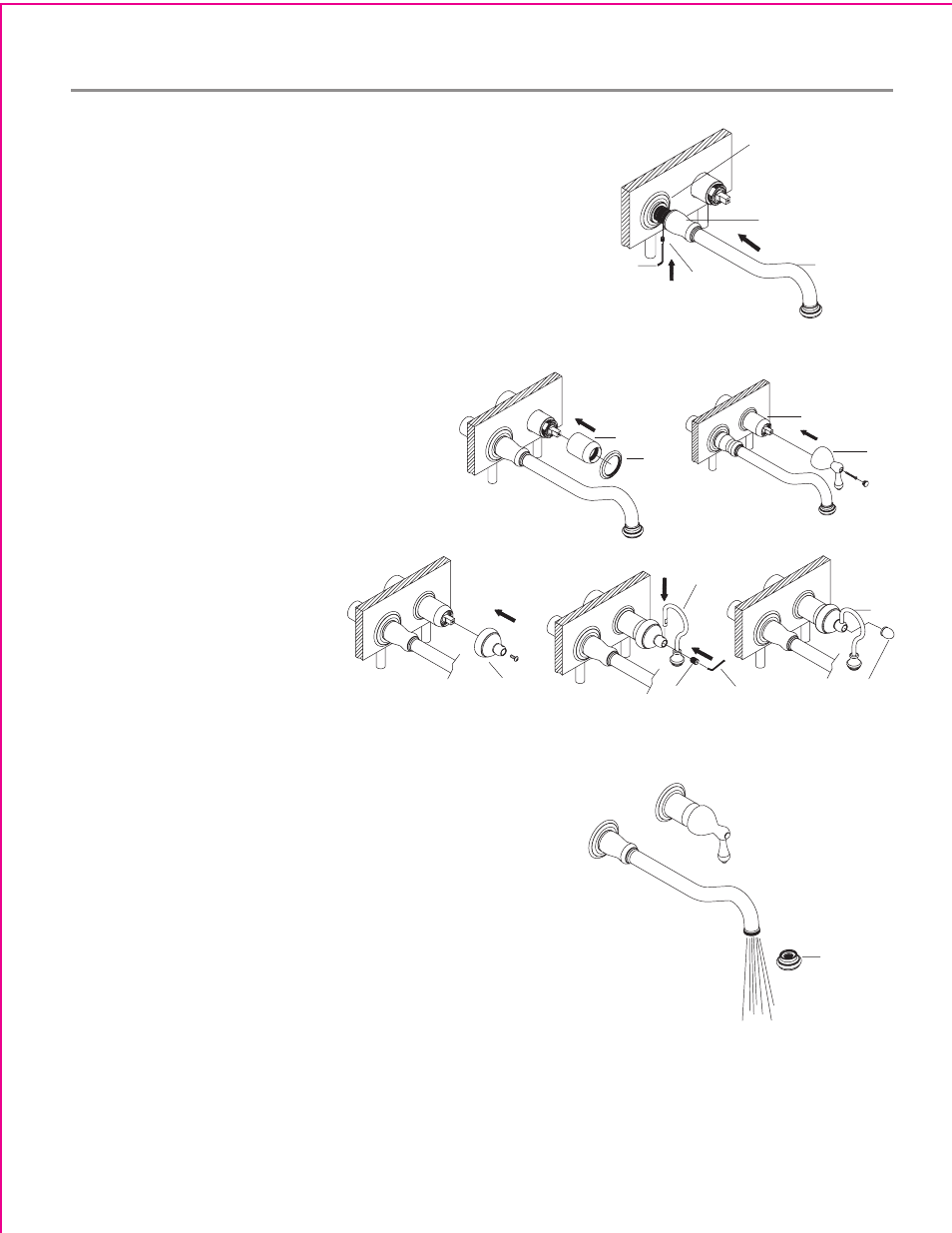

Steps 6-8
7-2
7-5
7-1
7-4 7-3
Allen wrench Spout
Aerator
Set screw
Spout canopy
Spout trim ring
Canopy
Set screw Allen wrench
Handle wire
Handle
Handle knob
Handle valve
Handle
Sleeve
Escutcheon
