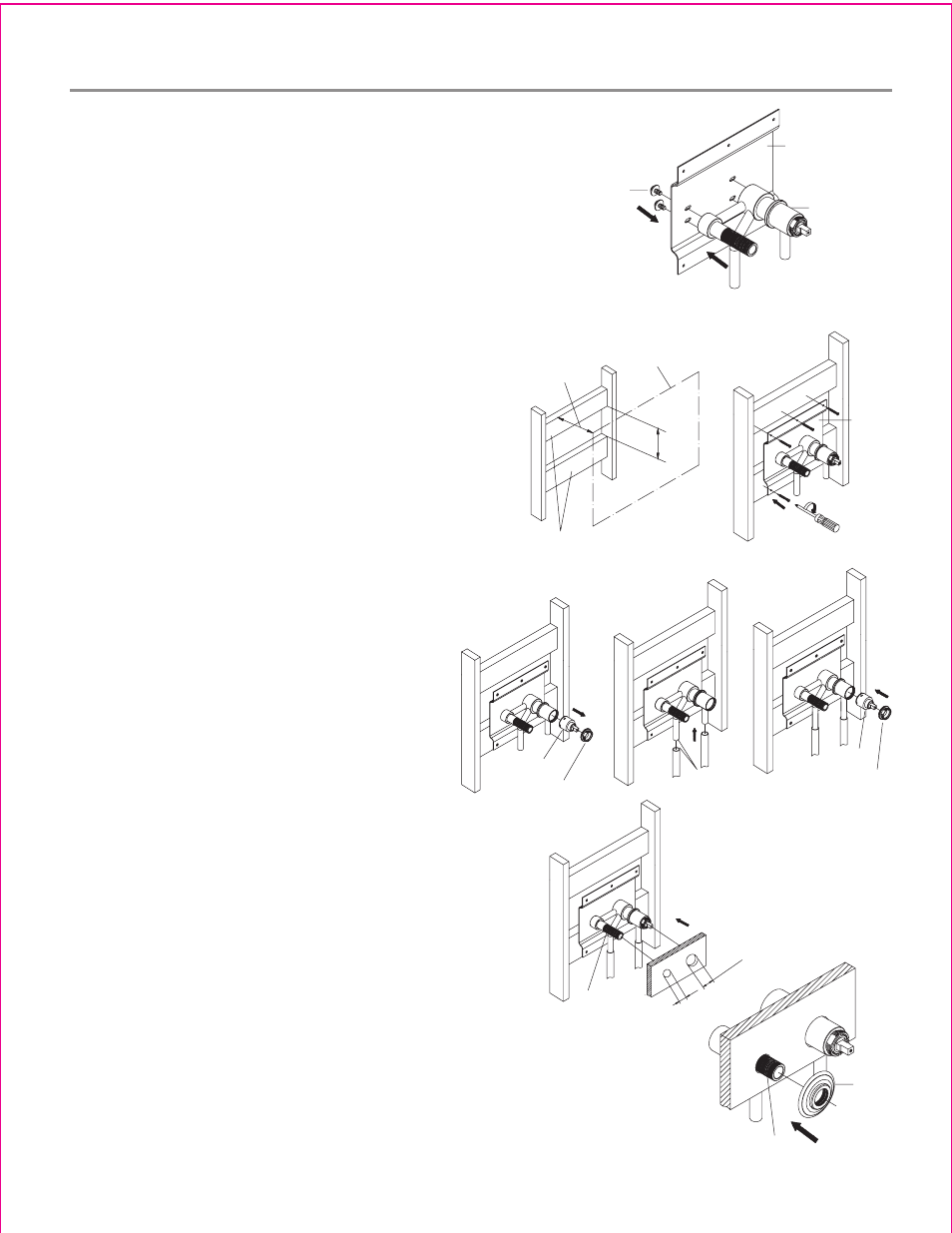

Preparation/Assembly
1
2A 2B
3-1 3-2 3-3
4
5
1
Shut off main water supply before installation.
Place faucet body on wall plate and secure with screws provided.
2
Construct suitable stud framing. Horizontal braces should be spaced
5
1/2 " apart, and should be placed 2 1/8 " min to 3 1/4 " max depth
from the finished wall. Secure the wall plate to stud framing with
screws provided.
3
Remove adjusting ring and cartridge. Connect to 1/2 copper water
supplies. Replace cartridge and secure with lock nut. Turn on water
supply and faucet, and check for leaks. Place the plastic protective
sleeves on the body.
4
Complete finished wall, leaving a 1" diameter hole for the spout
outlet, and a 1
7/8 " hole for the cartridge & bonnet.
5
Remove the plastic protective sleeves. Thread spout trim ring on to
spout outlet until it is flush to the wall.
Steps 1-5
Solder connection
1-7
/8"
1"
Screw
Wall plate
Wall plate
Faucet body
Finished wall
5-1/2"
2-1/8" min to 3-1/4" max
1-1/2" x 3-1/2"
Trim ring
Spout outlet
Spout outlet
Cartridge
Lock nut
Cartridge
Lock nut
