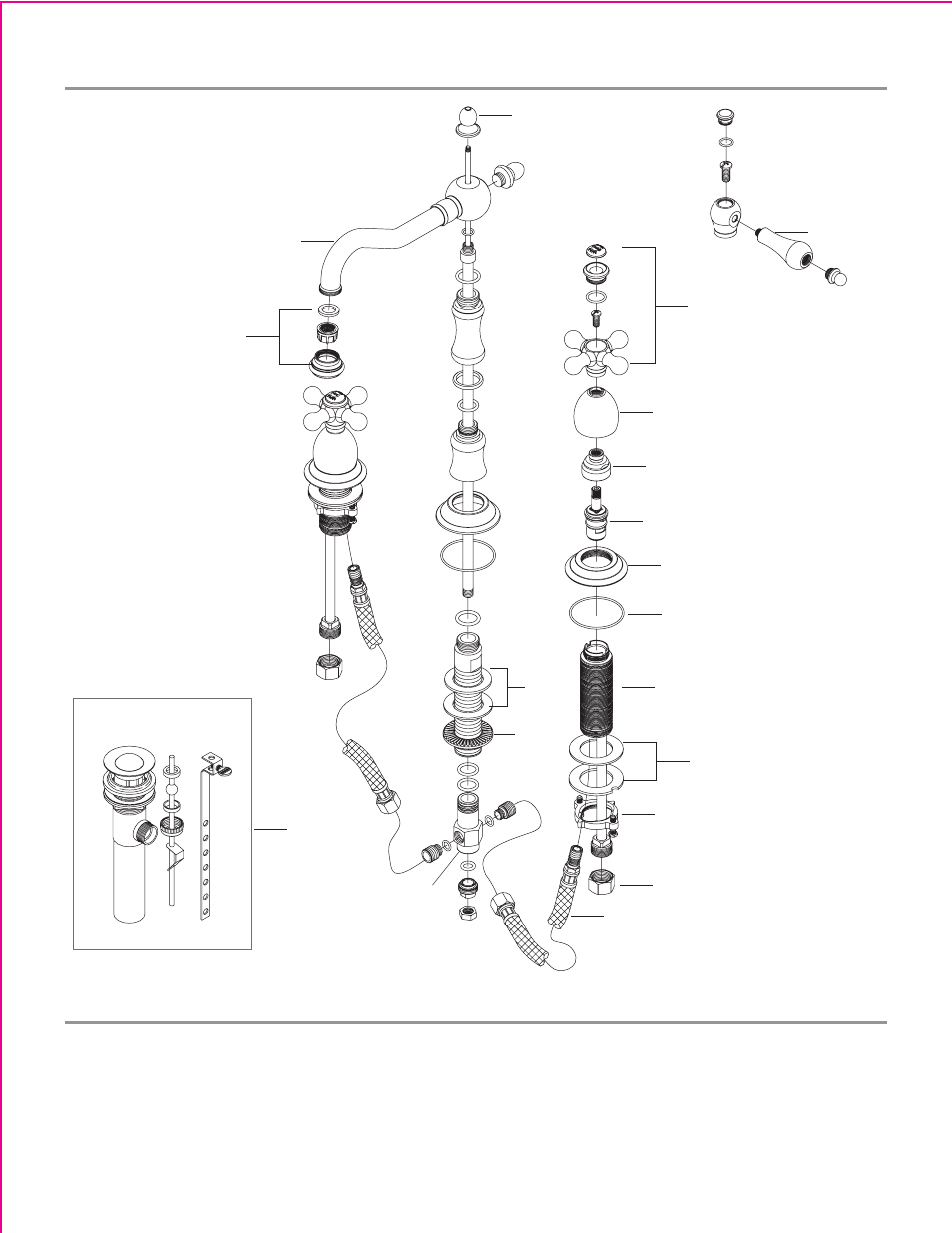

Parts Breakdown
Trouble-Shooting
PROBLEM
Leaks underneath handle.
CAUSE
Retainer nut is loose or O-ring on cartridge is dirty or twisted.
SOLUTION
Tighten the retainer nut. Clean or replace o-ring.
PROBLEM
Aerator leaks or has an inconsistent water flow pattern.
CAUSE
Aerator is dirty or improperly installed.
SOLUTION
Remove aerator, check for debris in the aerator screens, and confirm the rubber
washer is properly installed.
Cross handle
Lever handle
Washers
Washers
Canopy
Lift-rod cap
Retainer nut
Aerator
Cartridge
Flange
Body
O-ring
Lock nut
Lock nut
Coupling nut
Spout connector hose
Pop-up assembly
Spout
Spout connector
