1 Remove flange from pop up main body. Leave large black washer
and nut on drain body.
2
Unthread the nut from the pop-up body and remove the spring clip
from the ball rod (please note: retain the white packing ring on the
ball rod), and place the nut in the ball rod. lnsert the ball rod into the
side hole of drain, through the hole in the stopper, slide the nut on
and tighten securely.
3
Place a ring of putty around drain opening of sink. Insert threaded
end of drain body up through drain hole and attach flange to body
with ball rod pointing to rear of sink.
Installation - Pop-Up drain
4
Thread locknut from underside of sink until rubber washer seats
securely inside opening of sink. Tighten locknut with a wrench. Wipe
excess putty.
5
Place one end of spring clip on the end of the ball rod. Insert rod
through hole in lift rod strap. Secure the lift rod strap by placing the
other end of the spring clip on the ball rod.
6 Insert bottom of lift rod into hole at top of pop-up strap. Tighten with
thumb screw.

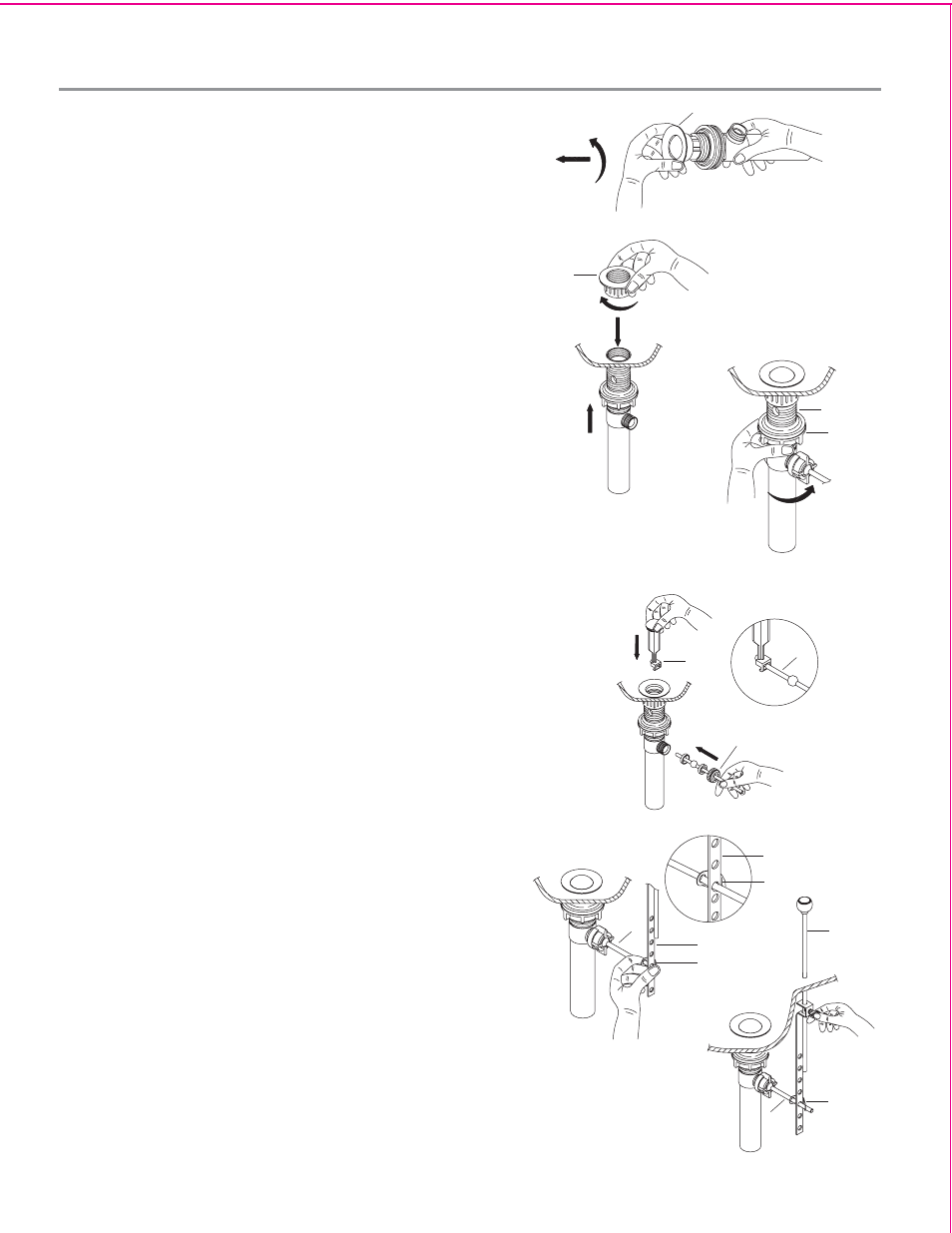

Steps 1-6
Flange
Ball rod
Ball rod
Ball rod
Ball rod
4
Lift rod
Stopper
Flange
Rubber washer
Lock nut
Lift rod strap
Lift rod strap
Lift rod strap
Spring clip
Spring clip
