Preparation/Assembly
6
Wrap valve body inlets with pipe tape and connect to water supply.
5
Wrap spout connector inlets with pipe tape, and connect to valve
bodies with flexible spout connector hoses.
7
Install handles.
8
Remove aerator and turn on water for 1 minute to flush the lines.
Replace aerator. Check for leaks.

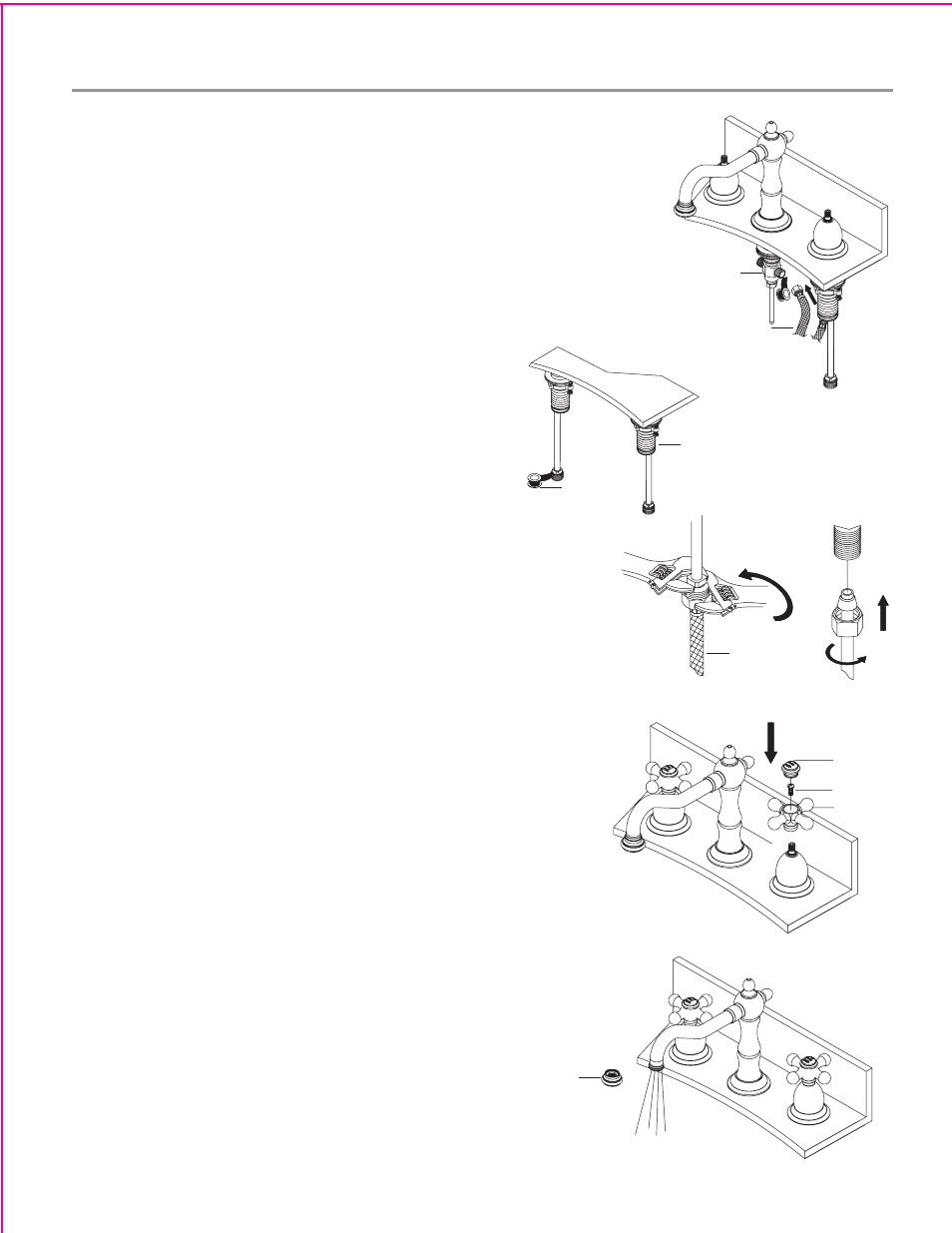

Steps 5-8
8
5
7
6-2
6-1
Spout connector inlets
Flexible spout connector hoses
Valve body inlets
Pipe tape
Aerator
Water supply
Screw
Cap
Cross handle
