Install the pop-up drain
Remove the plunger assembly.
Unscrew the drain outlet flange from the tee.
Unscrew the tailpiece from the tee. Wrap
the threads with two layers of Teflon tape and
replace.
Install the white, flexible sealing gasket to the
flange. Place it in the sink outlet.
Install the black mack gasket, white friction ring
and retainer nut to the flange. Do not tighten the
nut against the bottom of the sink at this time.
Thread the tee and tailpiece to the flange. The
pivot must face the faucet. If necessary, turn the
drain assembly.
Tighten the retainer nut.
Place the plunger assembly in the drain.
Install the horizontal rod so that the end goes
through the loop in the bottom of the height
adjuster.
Install and hand tighten the pivot ball nut.
Attach the swivel connector to the end of the
horizontal rod.
Attach the swivel connector to the end of the
pull rod. Position as desired and tighten with a
small, flathead screwdriver.

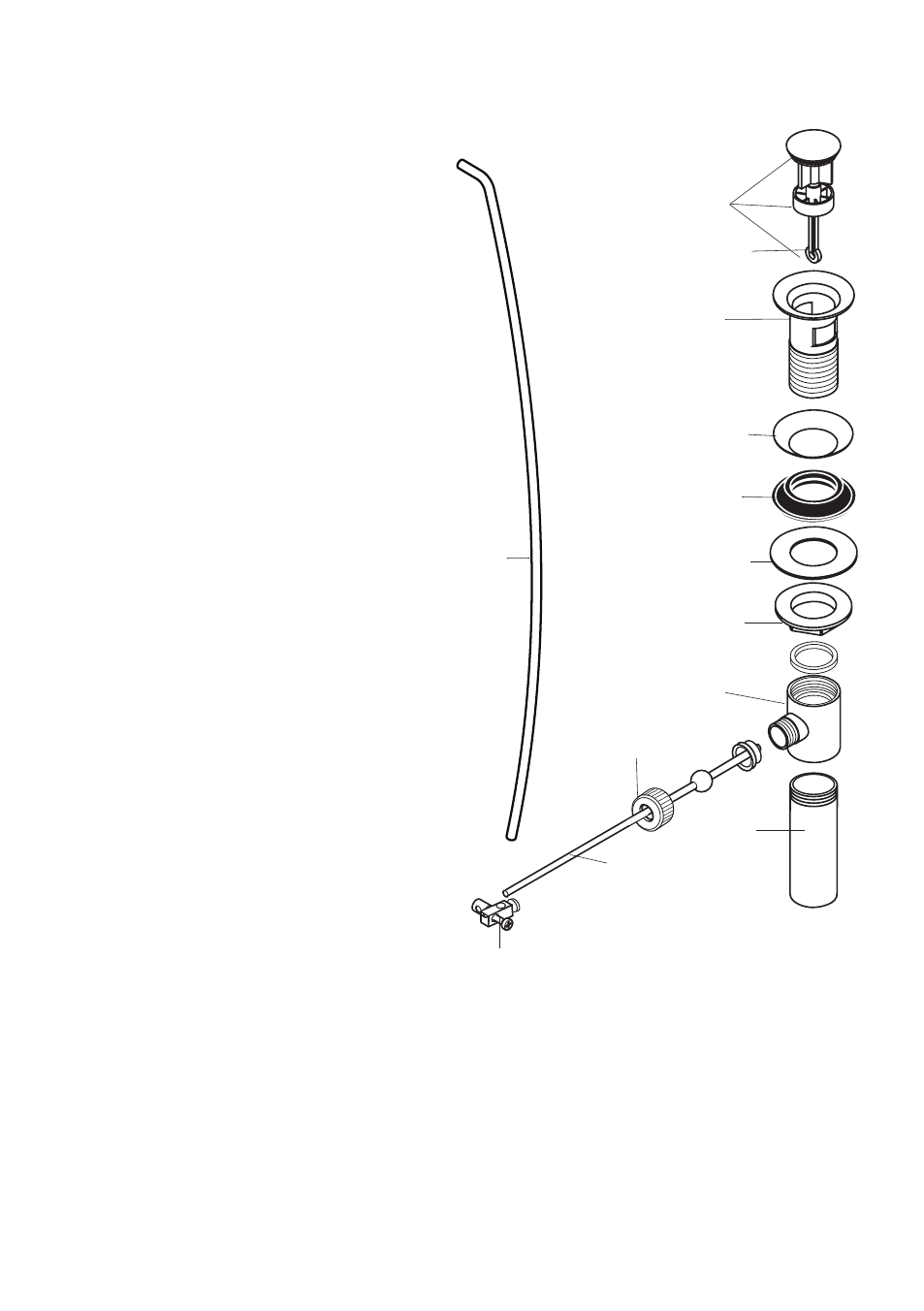

plunger
flange
sealing gasket
mack gasket
friction ring
retainer nut
horizontal rod
height adjuster
pivot ball nut
swivel connector
pull rod
tee
tailpiece
