Installation Considerations
For best results, Hansgrohe recom-
mends that this unit be installed by a
licensed, professional plumber.
Please read over these instructions
thoroughly before beginning instal-
lation. Make sure that you have all
tools and supplies needed to complete
the installation.
This faucet may be used with a con-
tinuous flow water heater as long as
the flow pressure is at least 14.5 psi.
•
•
•
Technical Data
Max. flow rate 2.2 gpm
Max. water pressure 145 psi
Recommended pressure: 14.5 - 72 psi
Max. hot water temperature: 176° F
Recommended hot water temp. 120°F - 140°F*
Hole size in mounting surface
valve 1 1/4"
spout 1 3/8"
Maximum mounting surface depth 1 5/8"
Requires 1/2" supply lines and nuts.
Bidet faucet not for use on vertical spray bidets.
*Please know and follow all applicable local codes when setting
the temperature on the water heater.

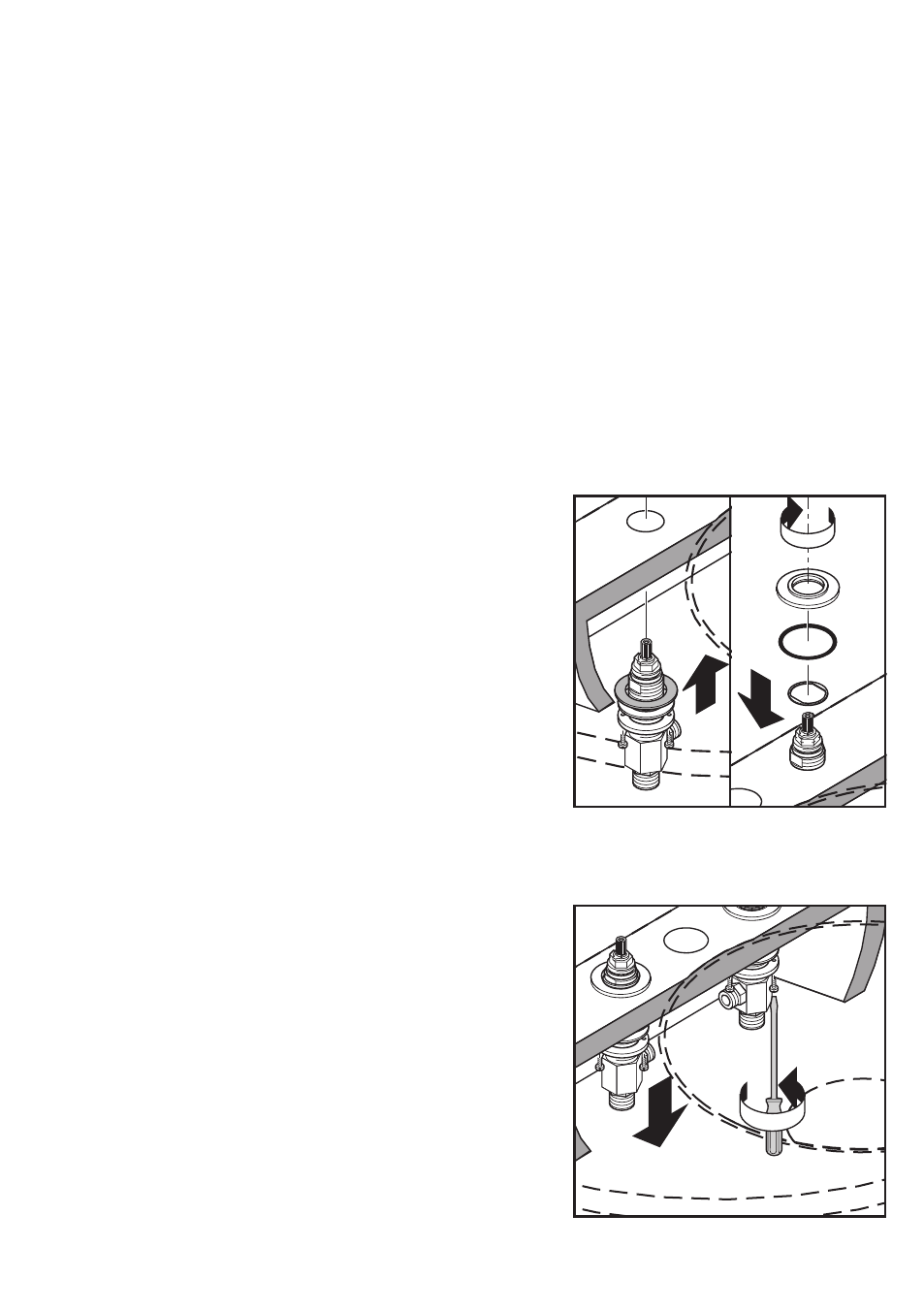

Installation
Remove the mounting ring with o-ring and stop
ring from the valve body.
Push the valve up through the hole in the mounting
surface.
Install the stop ring on the valve. Install the
mounting ring -- it will stop at the proper mounting
height.
Rest the valve on the mounting surface.
Tighten the mounting nut and the tensioning
screws.
