2

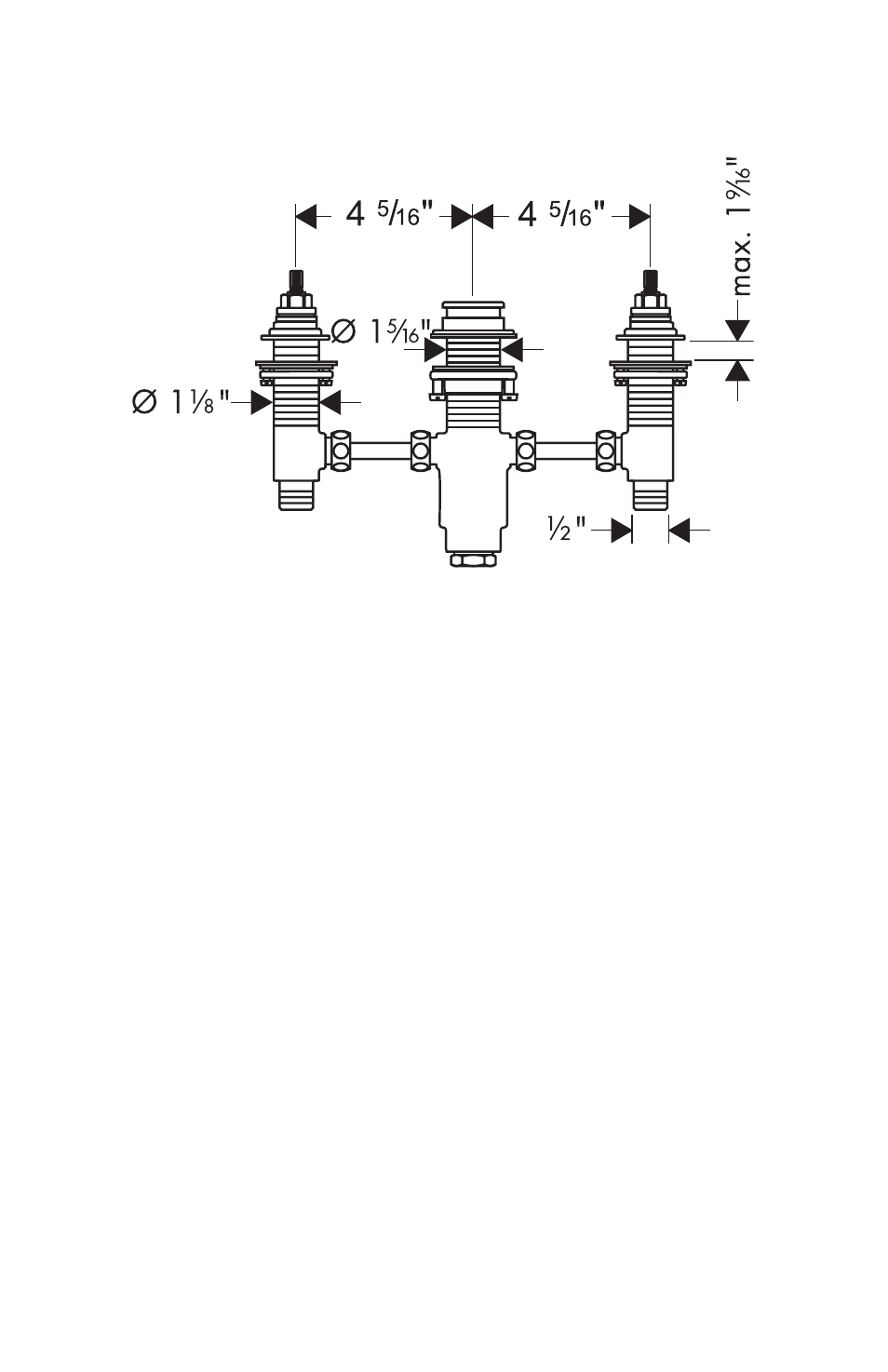

3-Hole Roman Tub Rough
06607000
Technical Specification
Recommended operating pressure 45 - 80 psi
Recommended hot water temp. 120 o - 140 o F*
Max. flow rate 10 gpm
Hole sizes
valves 1 1/4”
spout 1 3/8”
spout pin 3/16”
Max. mounting surface thickness 1 9/16”
Requires 1/2” supply lines (not included)
*Please know and follow all applicable local plumbing codes when setting the temperature on the
water heater. In Massachusetts, the water heater may be set no higher than 112 o F.
Installation Considerations
For best results, this unit should be installed by a licensed, professional plumber.
Large differences in pressure between the hot and cold supplies should be balanced.
The included connecting tubes are type “K” copper tubing. If an installation different from
the one shown here is desired, the plumber may provide his own copper tubing.
To insure proper fit of the trim, this valve should be installed after the mounting surface is
finished and made watertight.
The hot and cold water supplies should be flushed thoroughly before installation of this
rough valve. Damage to the cartridges caused by debris is not covered by the warranty.
