· Measure the spout connector. It
should extend from the plaster
shield 1 3/8”.
· Place the spout escutcheon over
the spout connector. Press the
spout over the spout connector.
The pin on the back of the spout
should align with the detent on the
spout escutcheon. Tighten the set
screw on the bottom of the spout.
User Instructions – Lever handle version
· Turn the handle downwards
(clockwise for cold, counter-
clockwise for hot) to turn the water
on. Turn the handle upwards to
turn the water off.
· In the off position, the handles should be parallel to the floor.

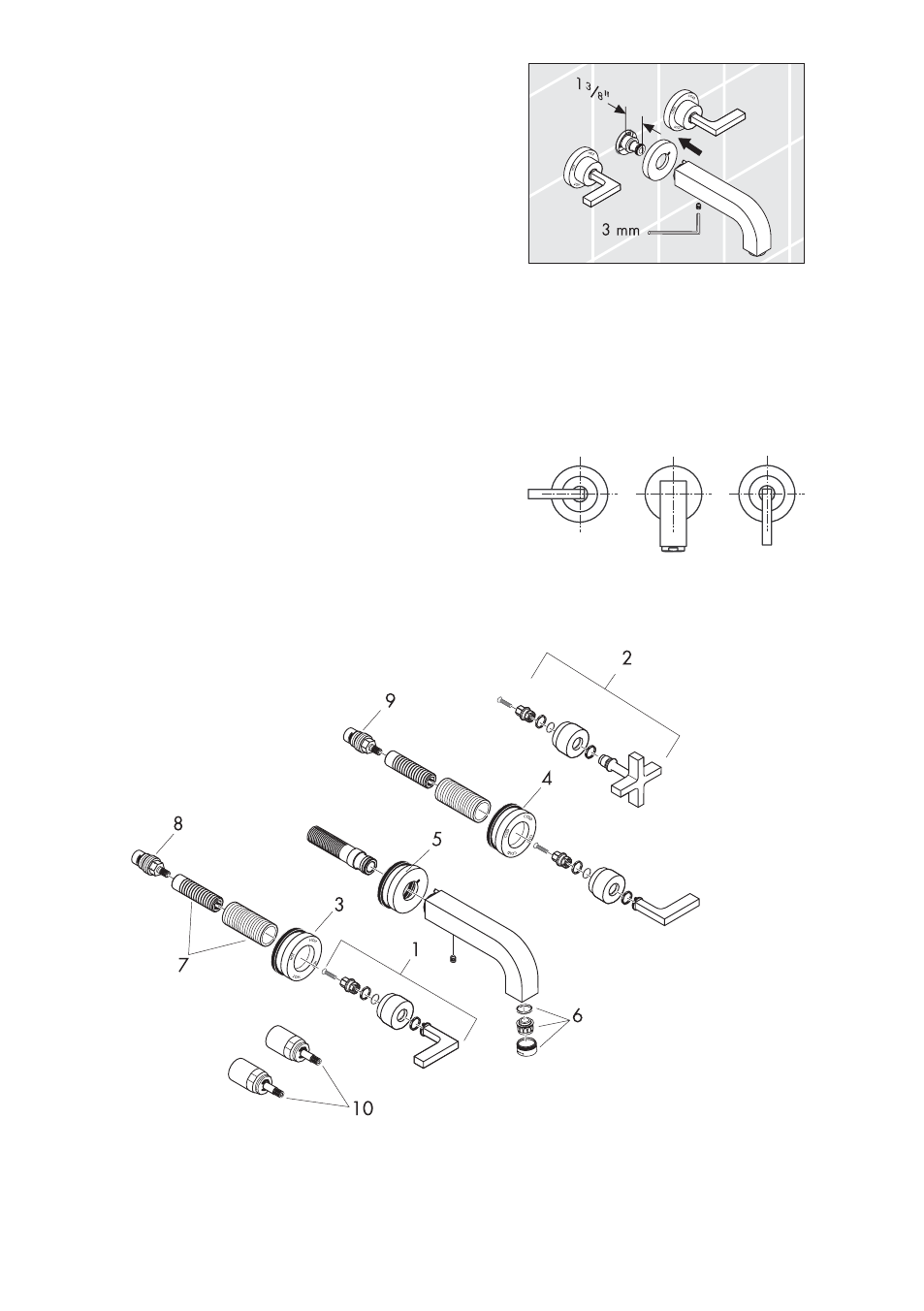

1 Lever handle 39396XXX
2 Cross handle 39295XXX
3 Hot escutcheon 96755XXX
4 Cold escutcheon 96754XXX
5 Spout escutcheon 96756XXX
Replacement parts
6 Aerator 13085000
7 Mounting set 96392000
8 Hot cartridge 96351000
9 Cold cartridge 96350000
10 Extension kit (optional) 96259000
