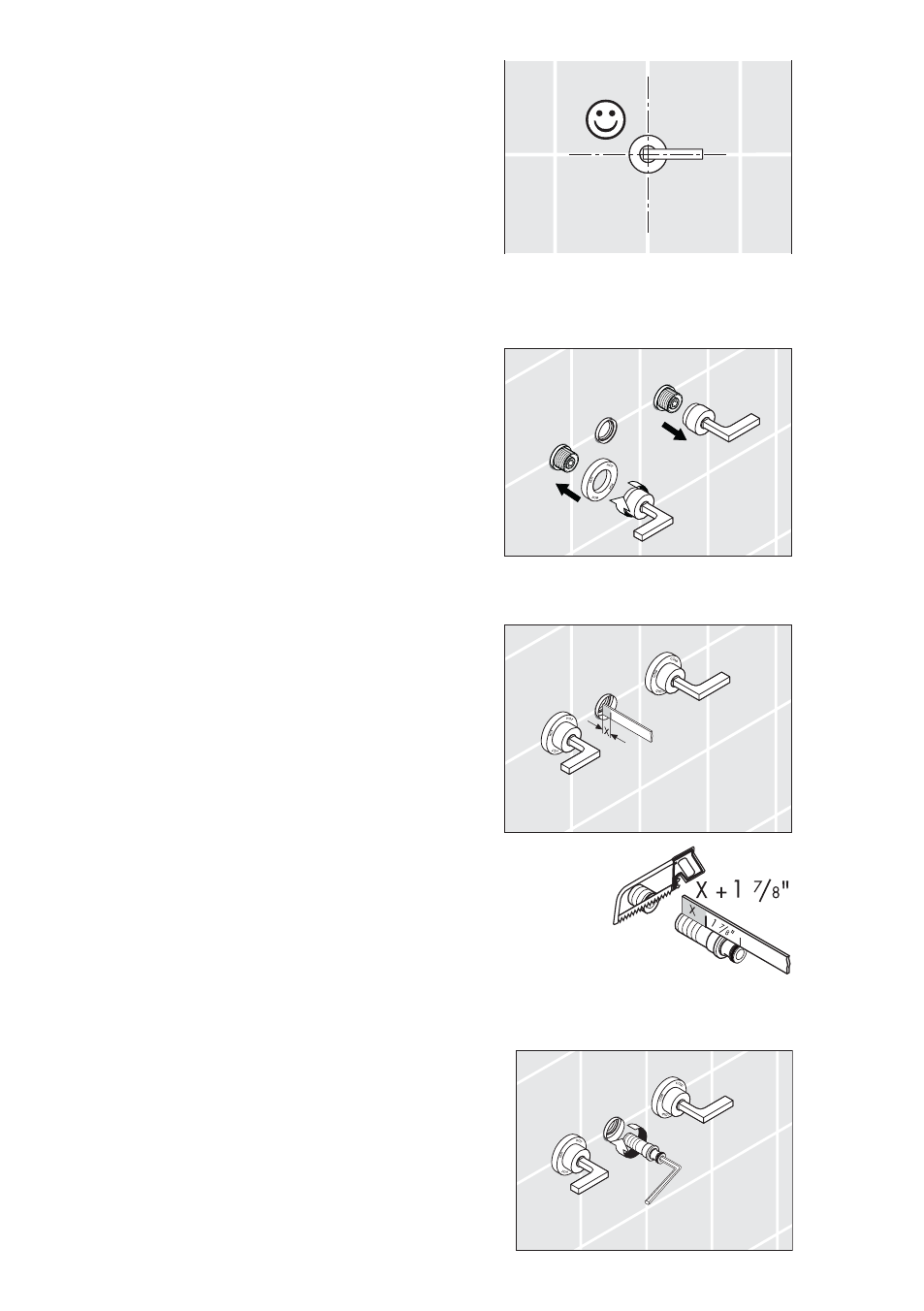

· Remove the handle. Push the
escutcheon over the outer sleeve.
Place the handle over the valve.
Turn the handle base clockwise,
so that it threads onto the outer
sleeve.
Install the spout.
· Use a ruler to measure from the
metal part of the spout port to
the outside edge of the plaster
shield. Record the measurement
(“x”). Add 1 7/8”. Record this
measurement. Measure the
spout connector from the outlet
end to a pout X + 1 7/8”. Mark
the spout connector at this point.
Cut it. The total length of the spout
connector should be X + 1 7/8”.
· Wrap the threads on the spout
connector with several layers of
Teflon® thread tape. Screw the
spout connector into the port.
