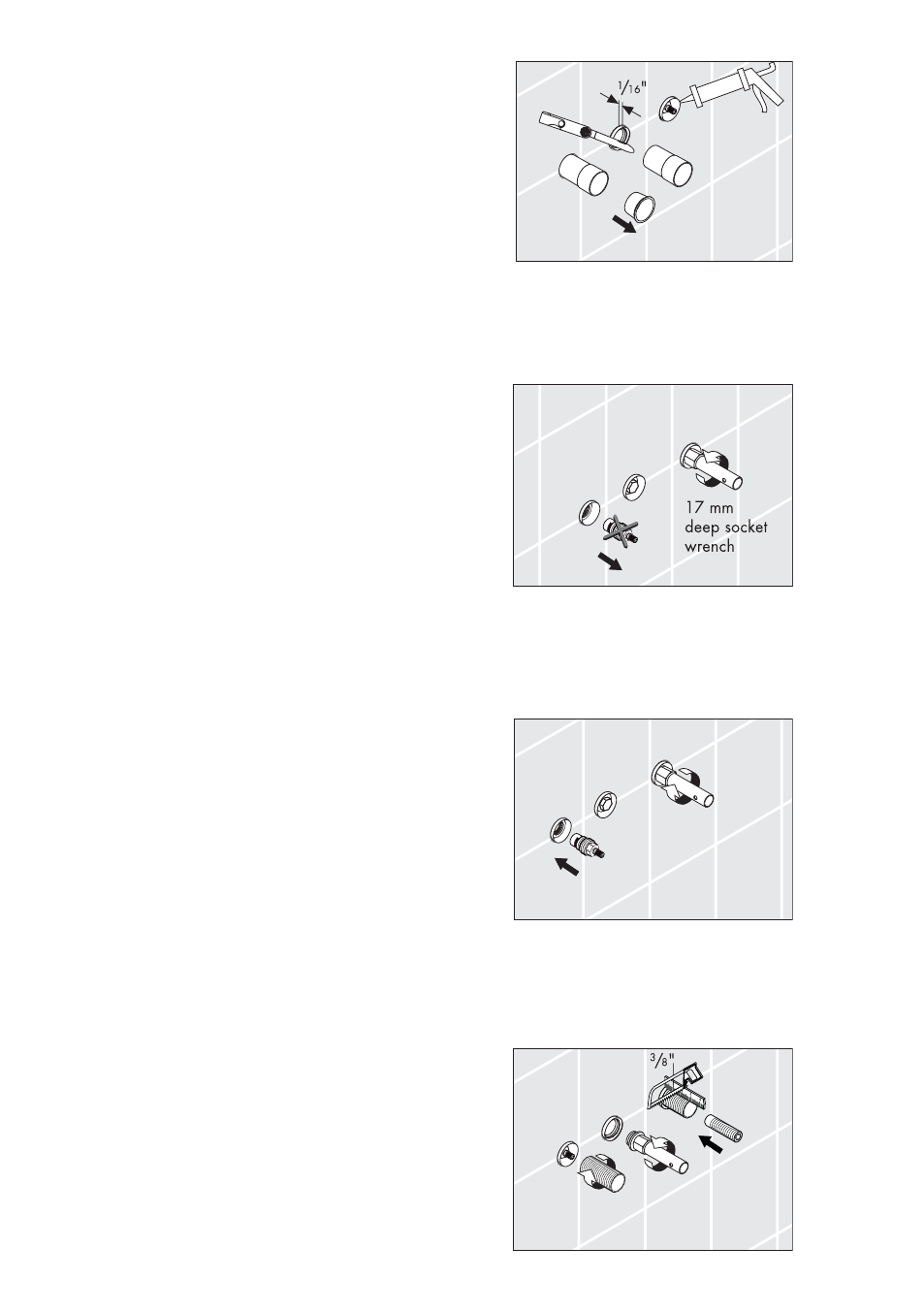

· Pull the inserts from the plaster
shields on the hot and cold rough-
in valves.
· Trim the plaster shields on the hot,
cold, and spout to 1/16” from the
finished wall.
· Lever handle model only:
Use a 17 mm deep socket wrench
to remove the cartridges from the
rough-in. Install the new ¼ turn
ceramic cartridges included with
the trim kit. The new hot cartridge
is marked with notches on the
wrench flats.
· All models: Install the white
plastic threaded sleeve to the hot
and cold sides of the valve. Use
a ruler to measure a point on the
sleeve 3/8” from the surface of
the finished wall. Mark the sleeve
at that point. Cut the sleeve.
Insert the inner sleeve.
