30
NC3FD-L-1
NC7MD-L-B-1
NC3FD-L-1
NC3MD-L-1
NC*FDM3-H
NC*MDM3-H
NC3FD-LX
NC3FD-LX-HE
NC5MD-LX
NC*MD-LX
innovative
solutions
I
superior quality

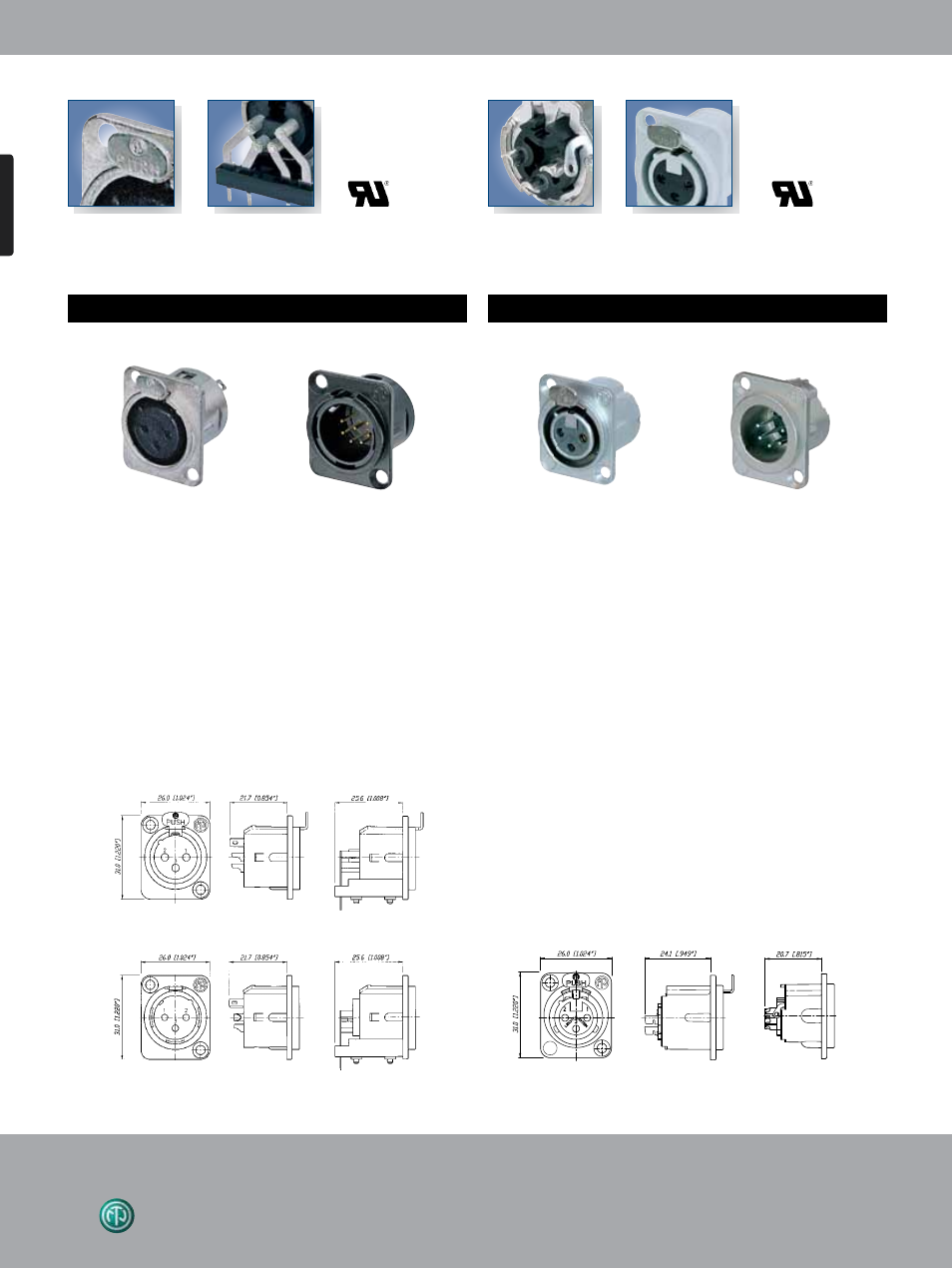

X L R C h a s s i s C o n n e c t o r s
X L R C h a s s i s C o n n e c t o r s
•
Unified "D" metal shell
•
Solder cups on 3 – 7 pole version
•
Additional PCB mount on 4 and 5 pole
•
Front and rear mountable
•
Next generation of the popular DL Series with greater
functionality
•
All metal housing works in combination with a new duplex
ground contact yielding the best RF protection and ground
conductivity in a chassis mount XLR
•
Male connector’s retention bar replaces plastic design with
all metal version
•
Unique cage type female contacts on 3 pole version for
increased conductivity
•
Machined male and female contacts on four to seven pin
versions
•
D-style housing provides installation compatibility with
industry standard D mounting dimensions
D L S e r i e s
D L X S e r i e s
Locking release tab
Horizontal PCB
mount
Ground shielding
White painted
housing
*: 3 - 7 contacts
*: 3 - 5 contacts
