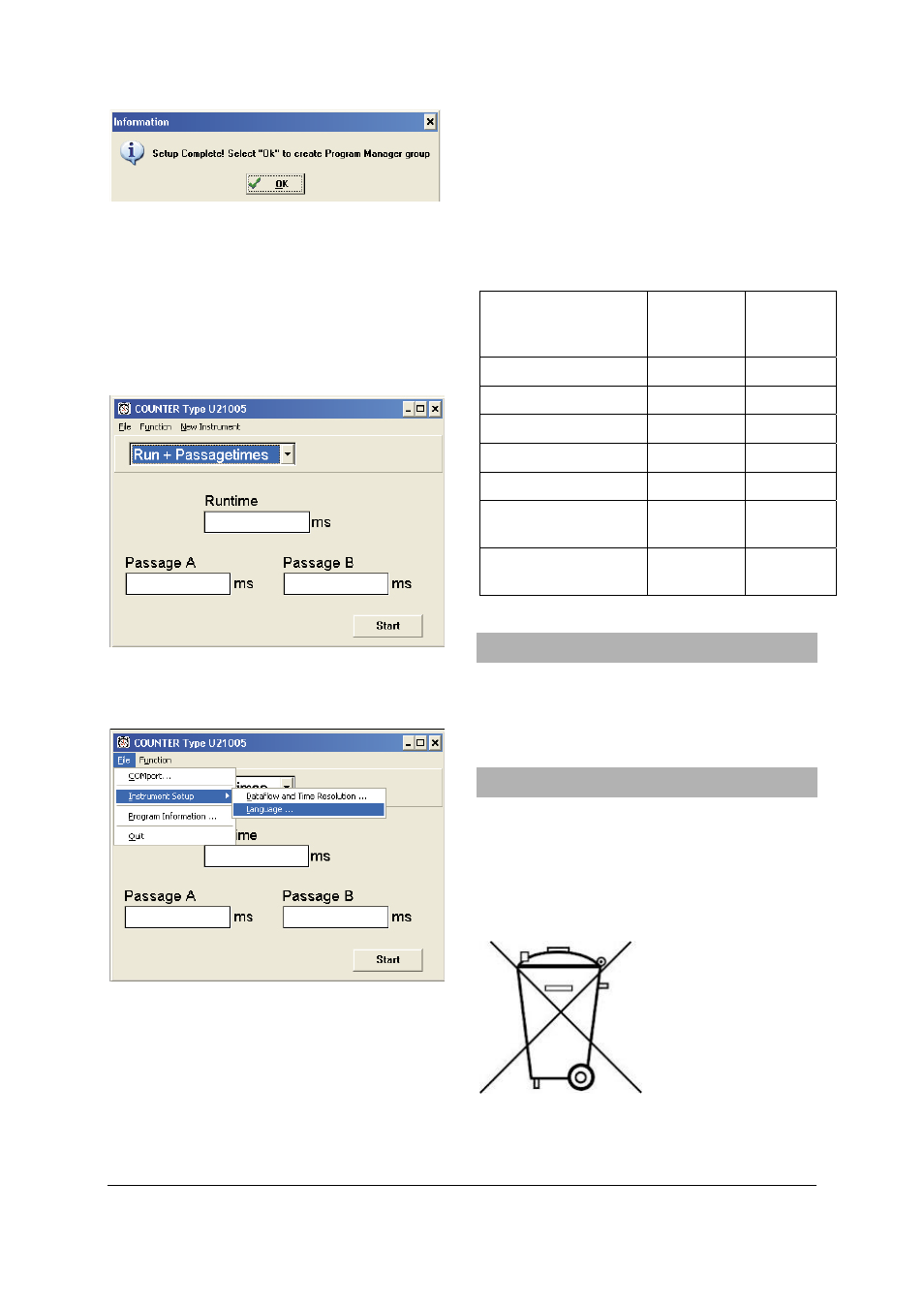

Start the programme „CNT“ in the folder
„CNT“, and select the ComPort from the File
pull down menu, used to connect to the
Counter

When the counter has been correctly connected
with the supplied cable, the programme auto-
matically displays the current function set on the
counter. See the example below.

•

To change language, use this sub-menu
, , :

In the pull-down menu “File” the following is
available:
ComPort:

Selection of the PC‘s Serial port

(COM-1 or COM-2).
U21005 setup Data flow:

Selection of

Start/Stop or Continuous data fl ow from the
counter to the PC. Only active during IMPULSE
COUNT and START A - STOP B.
Language:

Select the language.

Programme Information:

Displays the version

of the programme etc. If a counter is connected,
the version of the instrument is also displayed.
Exit:

Exit programme.

In the menu “Function” all of the above de-
scribed measurement methods are available.
The following keys can be used when IMPULSE
COUNT or IMPULSE COUNT GM were chosen:

Measurement method IMPULSE

COUNT

IMPULSE
COUNT
GM

Impulse count cont.

Shift F1

Impulse count 1 s

Shift F2

Impulse count 6 s

Shift F3

Impulse count 10 s

Shift F4

Impulse count 60 s

Shift F5

Impulse count 10 s,
5 s pause

F6 Shift

Impulse count 10 s
continuous

F7 Shift

7. Care and maintenance

•

Before cleaning the counter, disconnect it
from the mains.

•

Use a soft, damp cloth to clean it.

8. Disposal

•

The packaging should be disposed of at
local recycling points.

•

Should you need to dispose of the counter
itself, never throw it away in normal domes-
tic waste. Local regulations for the disposal
of electrical equipment will apply.
