6
11.
SETUP
AFS
RECALL
SUBHARMONIC COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
Inputs Sub Outs
UTILITY
PREV PG
WIZARD
0
6
12
24
36
SIG
Headroom dB Headroom dB Headroom dB
Outputs
Limiter
DriveRack PX ®
Powered Speaker
Optimizer
0
6
12
24
36
SIG
0
6
12
24
36
SIG

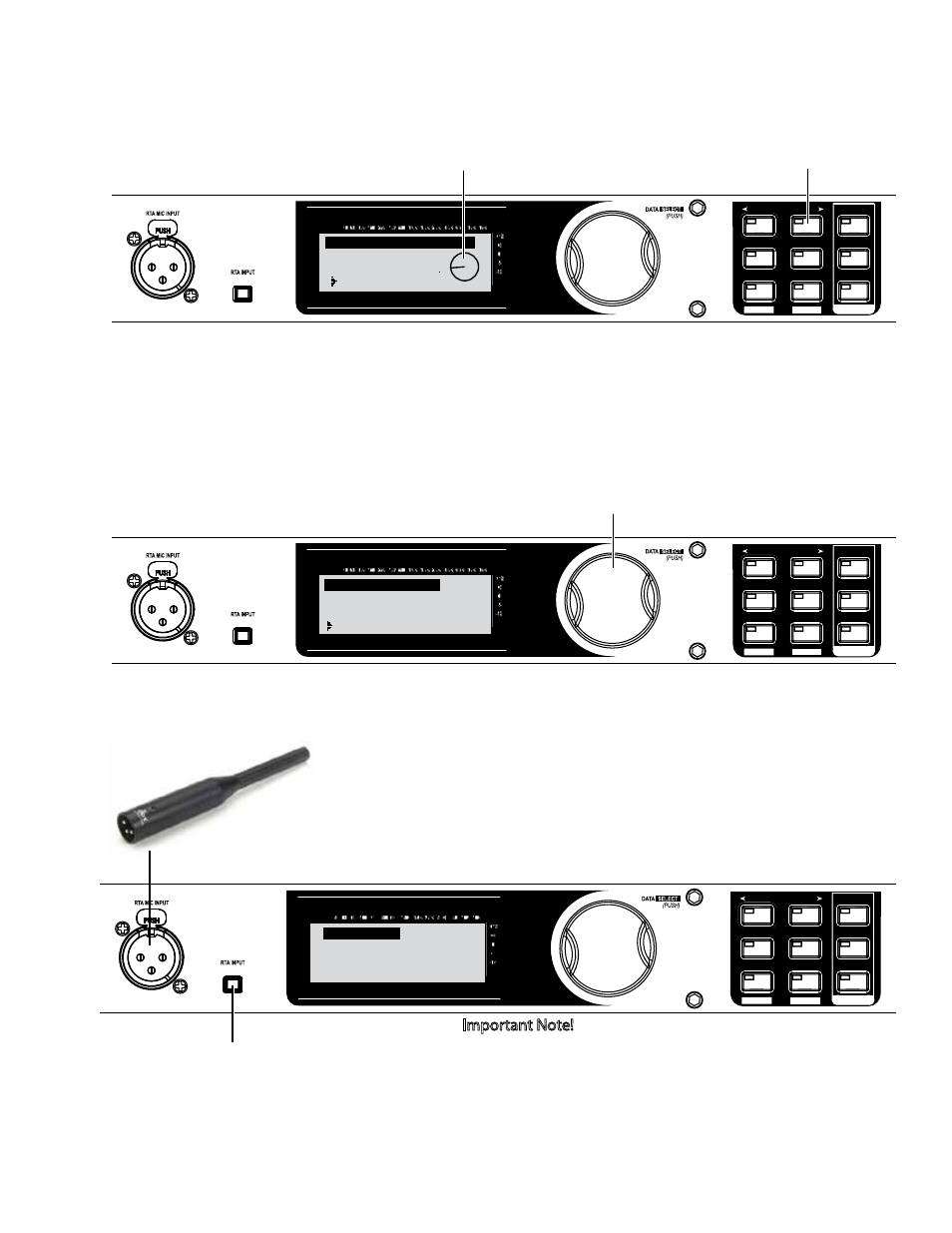

B. Press the NEXT PG button.
A. Set the level knobs on your subwoofer speakers
to match the position shown on the display.
(Note that you also have the option to turn the Data
Wheel to adjust the level shown on the display
to match a preferred setting on your speakers.)
Adjust speaker
levels as shown
> 21% Level
Sub Speaker Levels
12.
SETUP
AFS
RECALL
SUBHARMONIC COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD
Inputs Sub Outs
UTILITY
PREV PG
WIZARD
0
6
12
24
36
SIG
Headroom dB Headroom dB Headroom dB
Outputs
Limiter
DriveRack PX ®
Powered Speaker
Optimizer
0
6
12
24
36
SIG
0
6
12
24
36
SIG
Press the Data Wheel to load the preset you just created.
Press Select to Load
> New Preset
Load New Preset
13.
SETUP
AFS
RECALL
SUBHARMONIC COMP/LIMITER
UTILITY
PRESET
NEXT PG
STORE
EQ
WIZARD UTILITY
PREV PG
WIZARD
A. Connect the included dbx M2 RTA mic to the
RTA MIC INPUT using an XLR cable at least 25’ long.
B. Press the RTA INPUT button.
Connect mic to RTA
input. Press RTA
input button.
Auto Level
(Important Note! This feature requires that signal be present
from both main outputs of the processor! If you are not using
both of these outputs or you do not want to use this feature,
you can skip this step by pressing the PRESET button. You can
still Auto EQ the system by following the prompts in the
display. If there are no prompts in the display, press and hold
the EQ button for 5 seconds. Proceed to step 19.)
