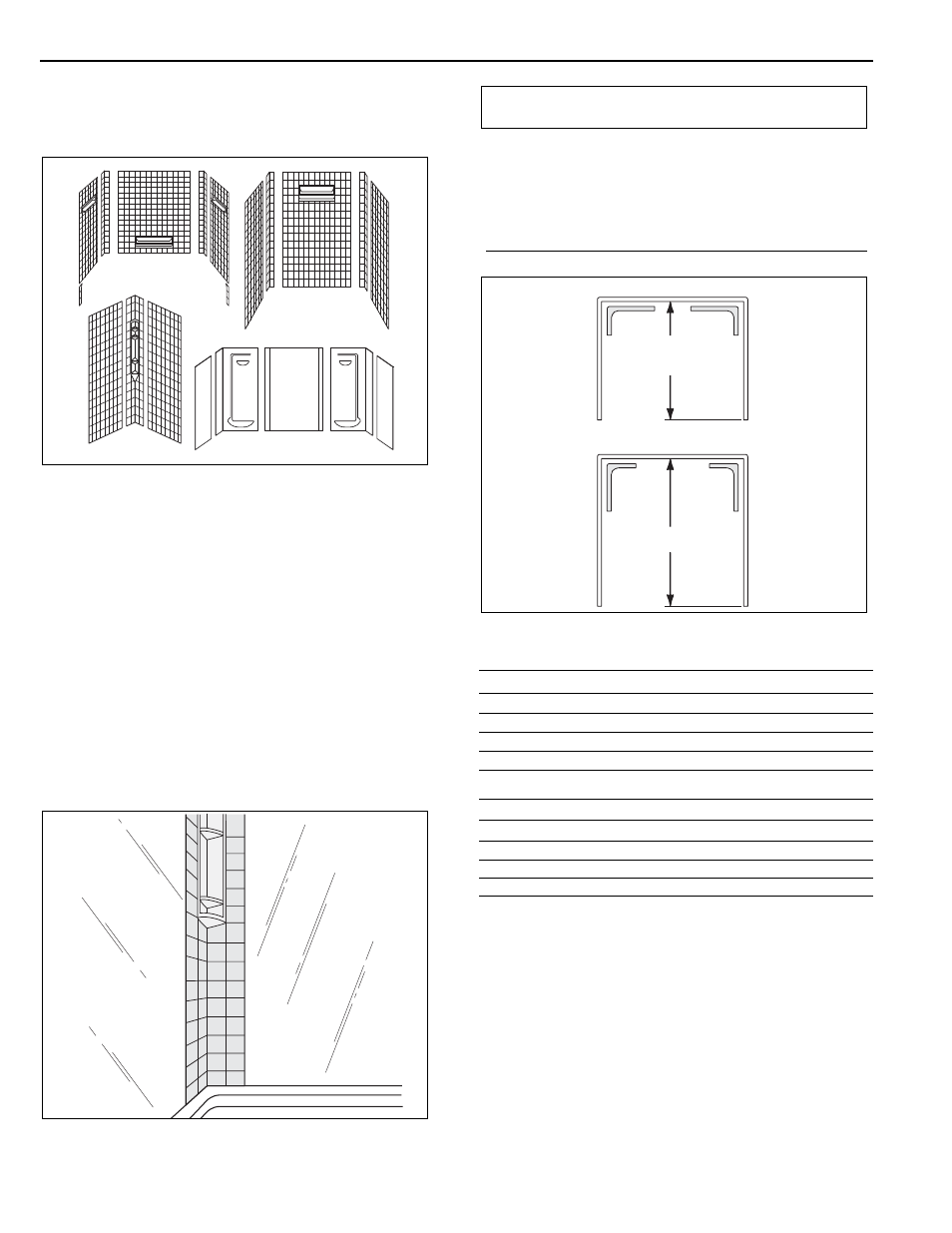

Wall Kits With Separate Corner
Panels - TF-57, TI-5, TI-NEO-DTF,
TI-7236, TI-7248, and TI-7260
Note: Faux tile wall kit installation shown. Smooth
finish wall kit installation is the same.
Corner Panels
Many corner panels are designed to be installed a
certain way. Check for identification tags on the back of
the panels. Molded in shelves must be installed with the
flat surface facing up.
1. Select either a left or right corner panel. Trial fit the
corner panel, and make any necessary adjustments.
Note: Corner shower wall kits only have one corner
panel. Install it with the flat surface of the molded in
shelf facing up.
Model TI-7236, TI-7248, and TI-7260 Shower Wall
Kits. The sides of the corner panels are different
widths. One side is 5 inches wide and the other is 7
inches wide. The orientation of the corner panel will
affect the allowable width of the wall dimensions. Refer
to the illustration and chart for proper orientation.
Corner Panel with 7 Inch Dimension on Enclosure Back Wall
Side Panel Fits 31 to 34 inch Side Wall
TI-7236 Back Panel Fits 29-1/4 to 39-3/4 inch Back Wall
TI-7248 Back Panel Fits 41-1/4 to 51-3/4 inch Back Wall
TI-7260 Back Panel Fits 53-1/4 to 63-3/4 inch Back Wall
Corner Panel with 5 Inch Dimension on Enclosure Back Wall
Side Panel Fits 31 to 36 inch Side Wall
TI-7236 Back Panel Fits 29-1/4 to 35-3/4 inch Back Wall
TI-7248 Back Panel Fits 41-1/4 to 47-3/4 inch Back Wall
TI-7260 Back Panel Fits 53-1/4 to 59-3/4 inch Back Wall
7”
7”
34”
or less
Over 34”
BACK WALL
SIDE W
ALL
BACK WALL
SIDE W
ALL
5”
5”
IMPORTANT NOTICE
TI-NEO-DTF
TI-5
TF-57
TI-7236
TI-7248
TI-7260
The Swan Corporation 12 800-325-7008
