R&M Materials Handling ELECTRIC CHAIN HOISTS LoadMate Chain Hoist TDU Motorized Trolley User Manual
Page 22

R&M Materials Handling, Inc
LoadMate Chain Hoist
Springfield, Ohio USA
TDU Instruction Manual
(: 800 955-9967
Revision 2
web:
www.rmhoist.com
08/13/02
RM-LM-TDU-MAN-1999-2-ENG.doc
22

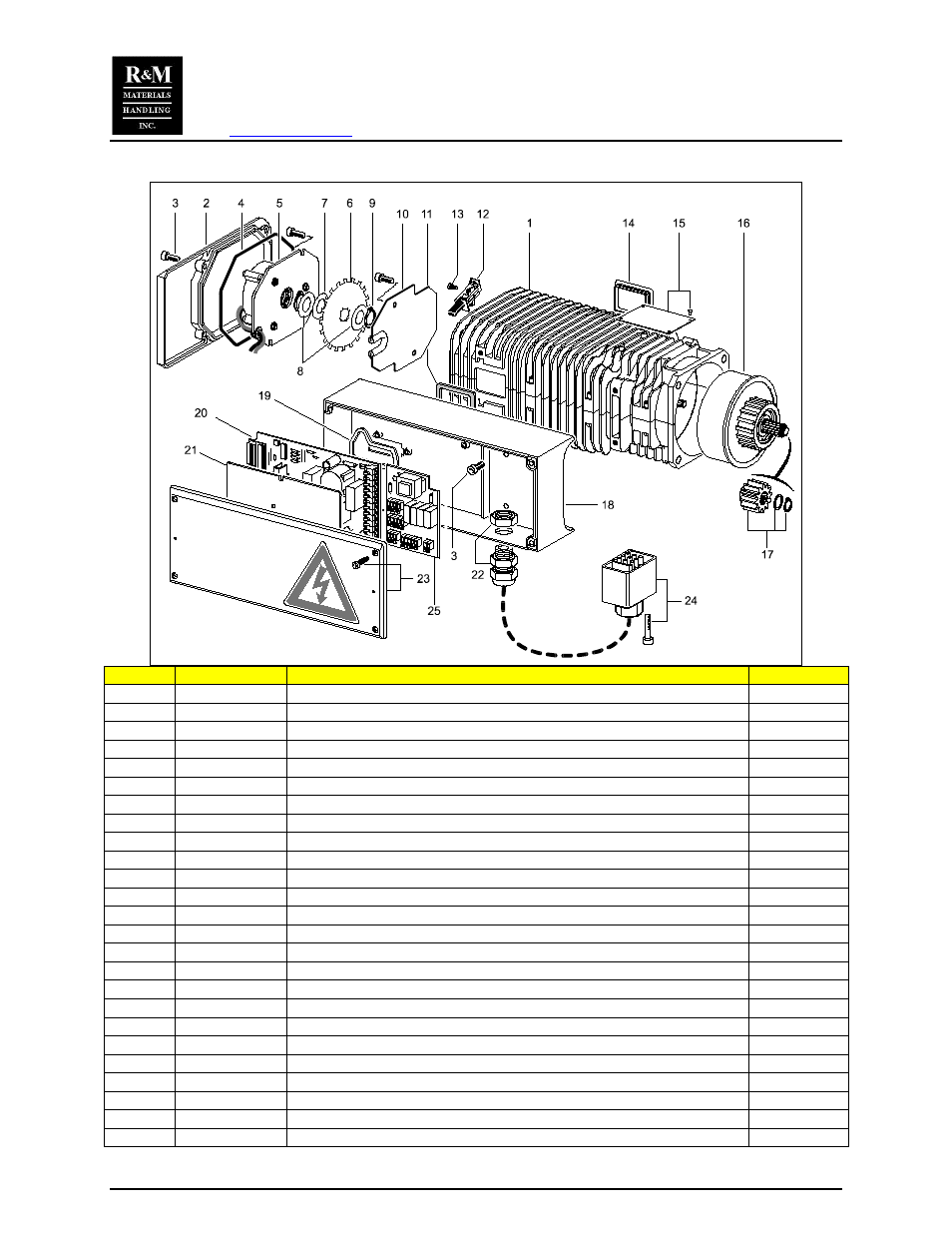

Gearmotor Assembly
Item
Part Number
Description
Quantity
1
2220000
Gearmotor assembly
1
2
2221009
Brake housing
1
3
7215353A
Screw CHC M6 x 16
4
4
8370001
Gasket
1
5
2221002
Brake assembly
1
6
2221003
Disk
1
7
8593422
Plastic washer
1
8
8582232
Spacer
2
9
8292112
Retaining ring
2
10
2221004
Protection plate
1
11
2221005
Box gasket
1
12
2221006
Motor brush
2
13
8083508
Screw
4
14
2221013
Closing gap
1
15
2226502
Rating plate
1
16
2221014
Gears
1
17
2144001
Drive pinion, washer, retaining ring
1
18
2221015
Control enclosure & hardware
1
19
2221016
Gasket
1
20
2223004
P.C. Board & hardware
1
21
2221017
Protection plate
1
22
7481630
Cable gland
1
23
2221018
Enclosure cover
1
24
2221019
Plug
1
25
2223005
Transformer card
1
