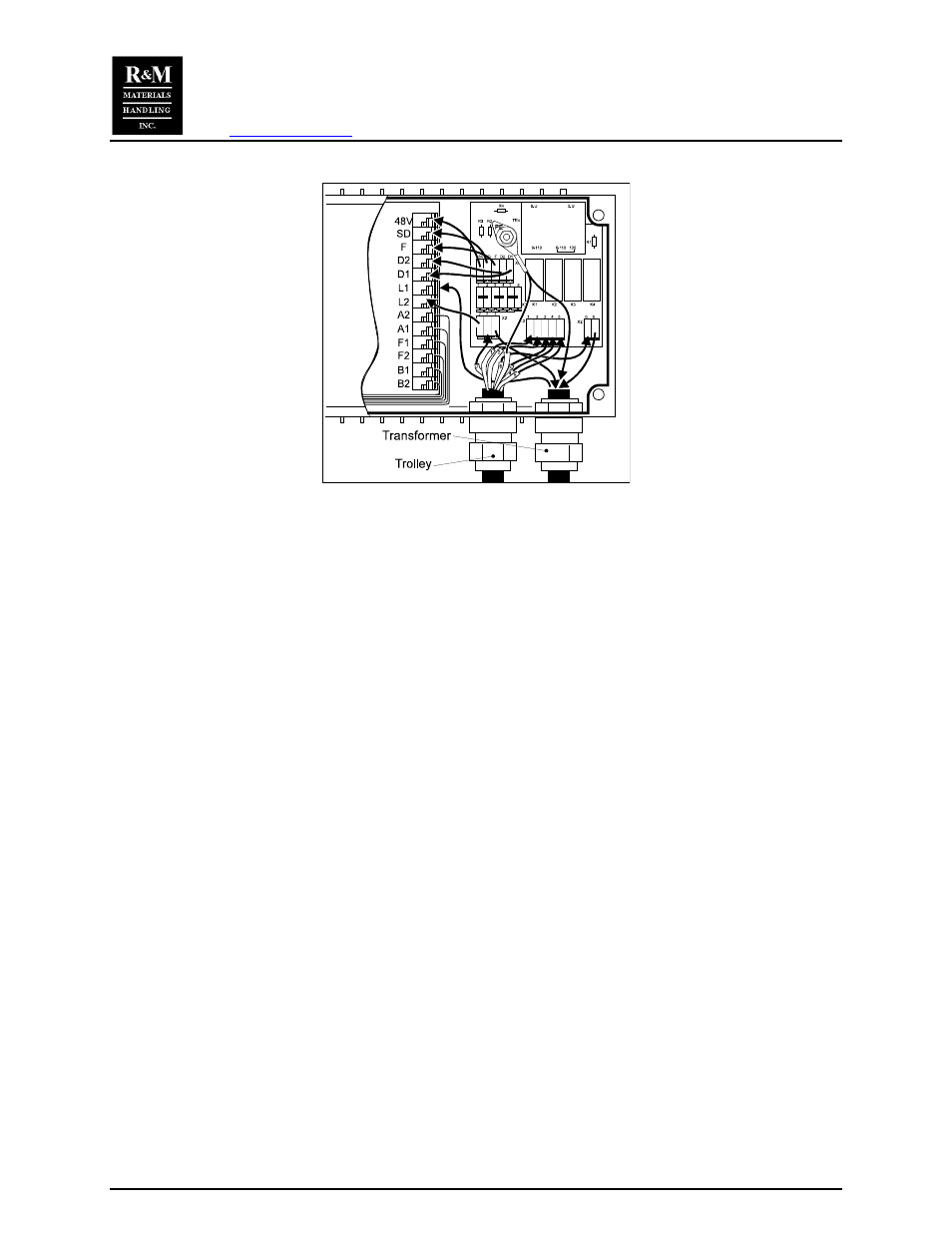

Control Panel
Trolley Plug
Pin No.
Function Connection
1 common X3, 1
2 slowdown X3, 2
3 fast X3, 3
4 left X3, 4
5 right X3, 5
6 supply X2, 6
7 supply X2, 7
9 Ground PE
Terminal board Function Wires Connection
48 V gray common - X4, 48V
SD gray slowdown - X4, SD
F gray fast - X4, F
D2 gray left - X4, D2
D1 gray right - X4, D1
L1 orange supply - transformer
L2 orange supply - X2, 7
A1 gray rotor white -
A2 gray rotor blue -
F1 gray stator brown -
F2 gray stator green -
B1 orange brake (-) yellow -
B2 orange brake (+) yellow -
