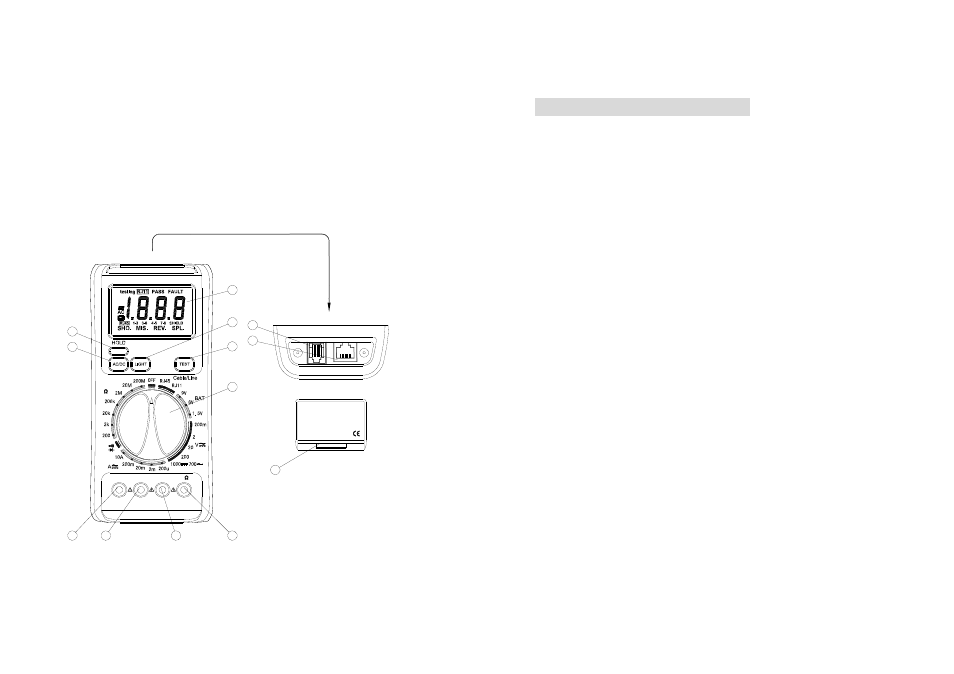

○ 9 RJ45 jack（Remote）
○
10 Function/range select rotary switch
○
11 Cable test key/Resent
○
12 Back light key
○
13 LCD display
V COM A 10A
12
11
10
9
8 7 6 5
3
4
2
1
13
- 6-
3. OPERATING INSTRUCTION
3.1 MEASURING VOLTAGE
3.1.1 Connect the black test lead to the COM jack
and the red test lead to the V/
 jack.
3.1.2 Set the rotary switch at the desired “V” range
position and connect test leads across the source
or load under measurement.
3.1.3 Put down the "AC/DC" when measuring the
voltage. Meter will be transformed between DC
and AC range.
3.1.4 If you need data hold when measuring, you
can put on “HOLD”, it will hold the reading; if you
put the button again, data hold will not continue.
3.1.5 When only the figure“1”is displayed, it
indicates overrange situation and the higher range
has to be selected.
3.2 MEASURING CURRENT
3.2.1 Connect the black test lead to the COM jack
and the red test lead to the A jack for a maximum
of 200mA. For a maximum of 10A, move the red
lead to the 10A jack.
3.2.2 Set the rotary switch at desired “A”
range
