1.4
MAINTENANCE
* Before opening the meter, always disconnect test leads from all sources of electric
current.
* For continue protection against fire, replace fuse only with the specified and current
rating:
F1: F2A / 250V F2: F 10A/250V
*If any faults or abnormalities are observed, the meter can not be used any more and
it has to be checked out.
*Never use the meter unless the back cover is in place and fastened fully.
*To clean the meter, use a damp cloth and mild detergent only, do not use abrasives
or solvents on it.
-4-
2. DESCRIPTION
This meter is a portable professional measuring instrument with 3 1/2 digit LCD,
capable of performing functions:
－DC voltage measurement, 5 ranges from 200mV to 1000V
－AC voltage measurement, 5 ranges from 200mV to 700V
－DC current measurement, 7 ranges from 20μA to 10A
－AC current measurement, 6 ranges from 200μA to 10A
－Resistance measurement, 7 ranges from 200Ωto 200MΩ
－Diode test
－Transistor test
－Audible continuity test
-5-

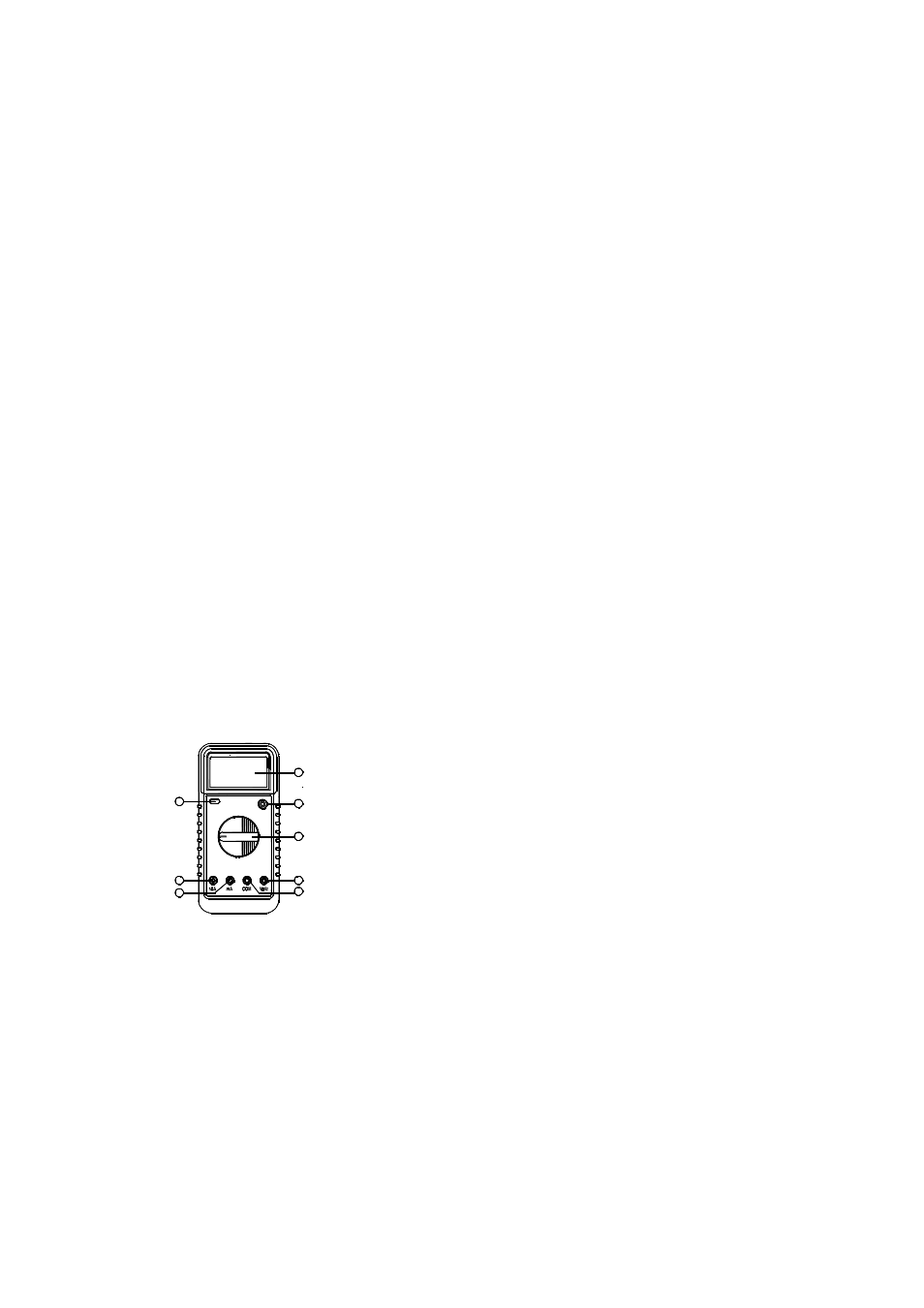

1. Power Switch
2. LCD Display
3. Transistor Testing Socket
4. Rotary Switch
5. V/
Ω Input Jacks
6. COM Input Jack
7. A Input Jack
8. 10A Input Jack
