NOTE: *Notch indicates front.

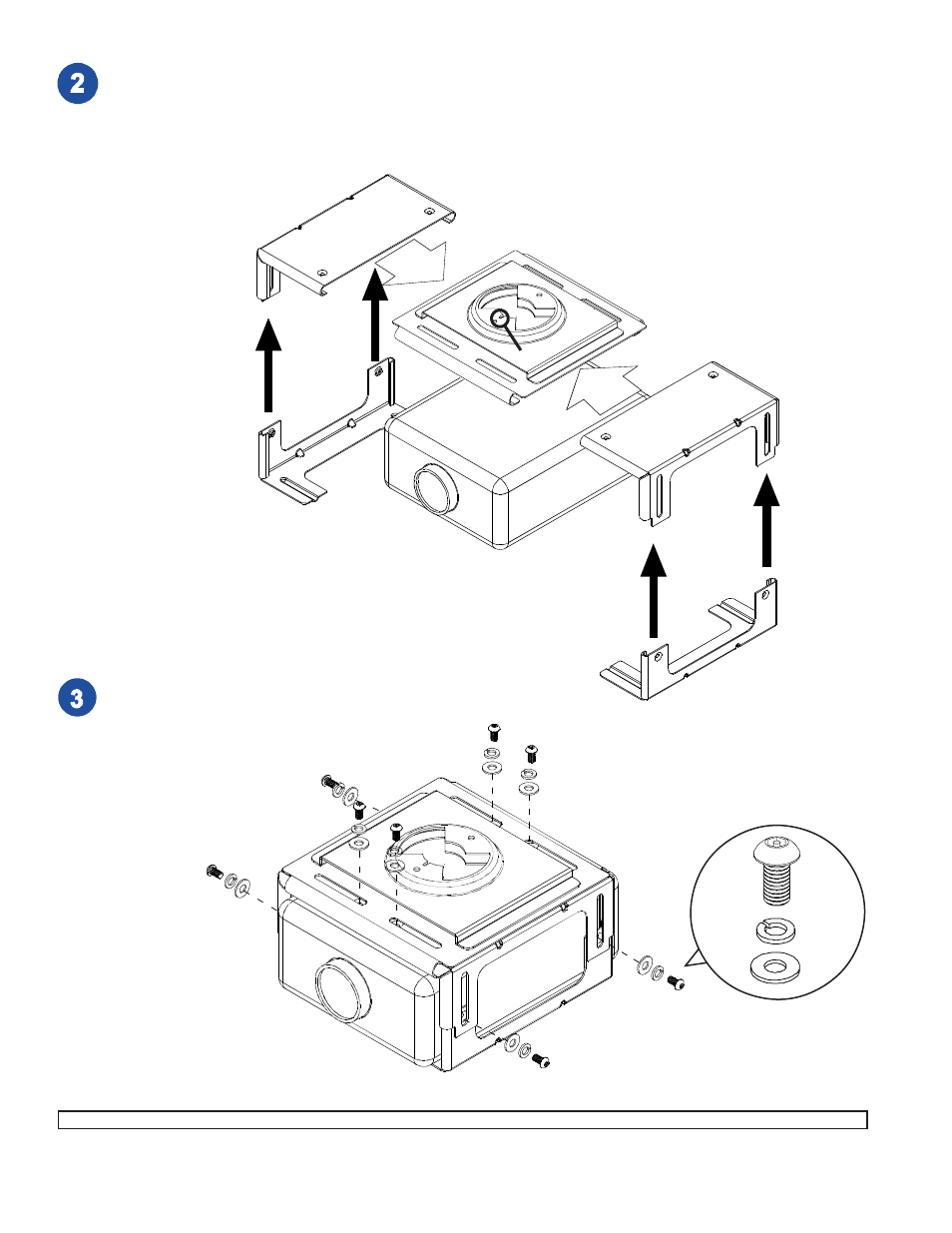

Connect vertical slides (C) to horizontal slides (B).
Next attach horizontal slides to top plate (A)
wrapping projector mount assembly around
projector.
A
B
B C
C
Once projector is encompassed with projector
mount assembly, secure with eight screws (D)
and washers (G,H). Be sure projector is centered
in projector mount. Tighten with allen wrench (F).
*
D
H
G
