ISSUED: 12-19-05 SHEET #: 087-9013-4 05-10-06

Visit the Peerless Web Site at www.peerlessmounts.com

For customer service call 1-800-729-0307 or 708-865-8870.

1 of 4

MSA-101

MSA-101S

DESCRIPTION

QTY.

PART #

PART #

A center speaker mount

1

087-1041

087-4041

B interface bracket

1

087-1047

087-4047

C speaker attachment bracket

2

087-1042

087-4042

D M5 x 6 mm socket pin serrated

4

510-1114

510-1114

washer head screw

E M5 x 10mm socket pin screw

1

520-1063

520-1063

F spacer

1

540-1032

540-1032

G 1/4 x 1.5" hex bolt

2

520-1096

520-1096

H 1/4" flat washer

2

540-9440

540-9440

I

3/8 x 1" bolt

2

520-1242

520-1242

J flat washer

2

540-9407

540-9407

K tear drop locking tab

1

200-1871

200-1871

L 4 mm security allen wrench

1

560-9646

560-9646

Note: some parts may not appear exactly as illustrated.

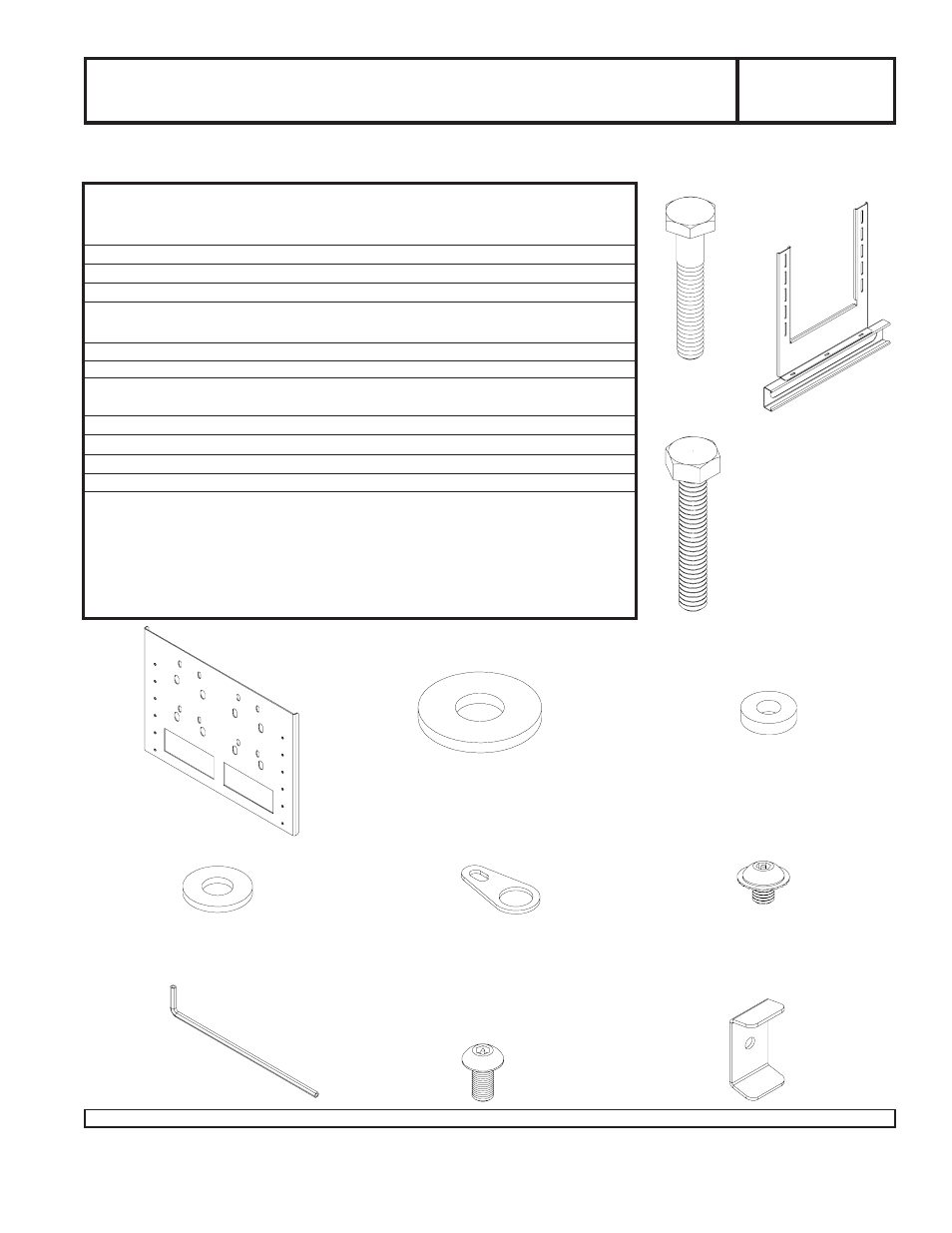

Parts List

Installation and Assembly - Multi-Channel Speaker Mount
for Boston Acoustics P400 or Polk Audio Center Channel

Models: MSA-101,

MSA-101S

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

MAXIMUM LOAD CAPACITY:

25.00 lb (11.4 kg)

L

J

C

B

D

H

F

E

I

G

K

A
