Assembly Instructions - Wall or Ceiling Speaker Mounts

IMPORTANT!

Read entire instruction sheet before you start installation and assembly.

MAXIMUM LOAD CAPACITY:
10 lbs.(4.5 kg.) each mount.

Peerless Industries, Inc.
1980 Hawthorne Avenue
Melrose Park, IL 60160

For customer service, call
1-800-729-0307 or
708-865-8870.

087-9009 rev:A

1 of 2

Models:
SPK810
SPK810W

Note: Mounting plate (J)
may be attached at any
angle.

F

1 5/8"
(40mm)

A

B

C

D

D

H

G

H

11/32"
(9mm)

J

J

G

F

L

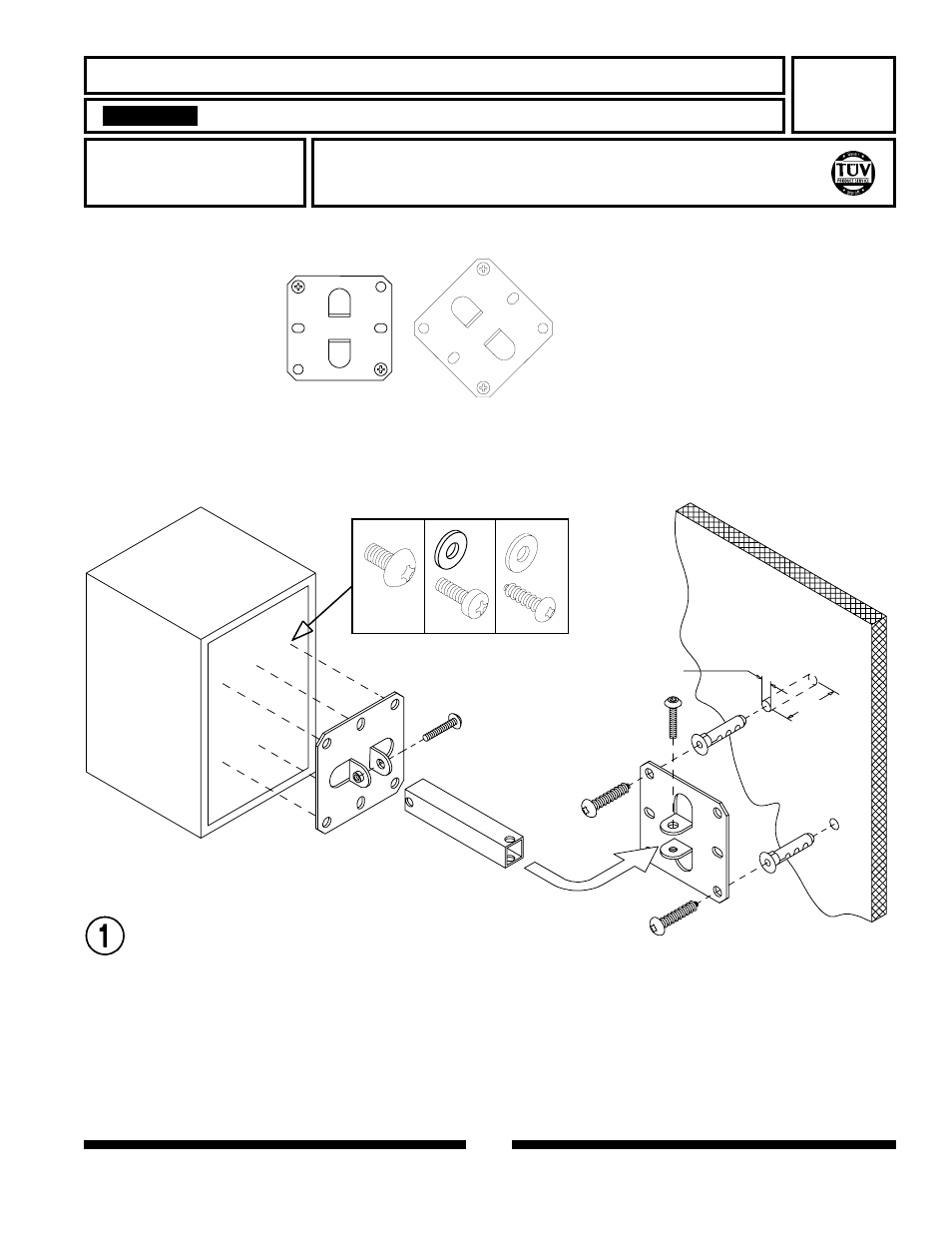

Attach one mounting plate (J) to back of speaker. Many
speakers have threaded inserts that will accept screws (A or
B). For speakers with wood or particle board backs that do
not contain threaded inserts
drill four 1/8" (3mm) dia. holes
no deeper than 5/8" (16mm) and attach with #10 partical board
screws (C). Use washers (D) with screws (B or C).
Attach remaining mounting plate (J) to wall (or ceiling) and
assemble speaker mount as shown. Note: Plastic anchors (G)
may be used in concrete, concrete block, brick, wood, plaster,
or drywall.

J
