PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
PAG-unV-Hd
9.31" x 4.25" x 12.62"
(236 x 107 x 320mm)
6.2lb (2.81kg) 735029265030
Arakno Heavy Duty Projector
Mount, Ceiling Plate, Threaded
Coupler, Spider ® Universal
Adapter Plate, Mounting and
Projector Attachment Hardware,
Assembly Instructions
1
Package Specifications
Accessories
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
PAG-unV-Hd
8.50"-17.63" x 8.39"-9.39" x 8.50"-17.63"
(216-448 x 213-239 x 216-448mm)
4lb (1.81kg) 100lb (45kg) Power Coat Black
Product Specifications
Model Numbers
WARRAntY: limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The mount shall be a Peerless-AV model PAG-UNV-HD and shall be located where indicated on the plans. The finish shall be scratch resistant black aluminum.
Assembly and installation shall be done according to instructions provided by the manufacturer.
CMj Models, ACC570, ACC571, ACC912: Ceiling Kits
ACC840/845: Anit-Vibration Mount
AEC, Alu and EXt Models: Extension Columns
All dimensions = inch (mm)
ACC830: Side-to-Side Adjuster
PWA14 & EXA/B: Wall Mount Arm
ACC050: Stability Kit
PAG-unV-Hd: Arakno Heavy Duty Geared Projector Mount for projectors weighing up to 100lb (45kg)
LIT-0466 rev.3
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, Il 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  www.peerless-av.com

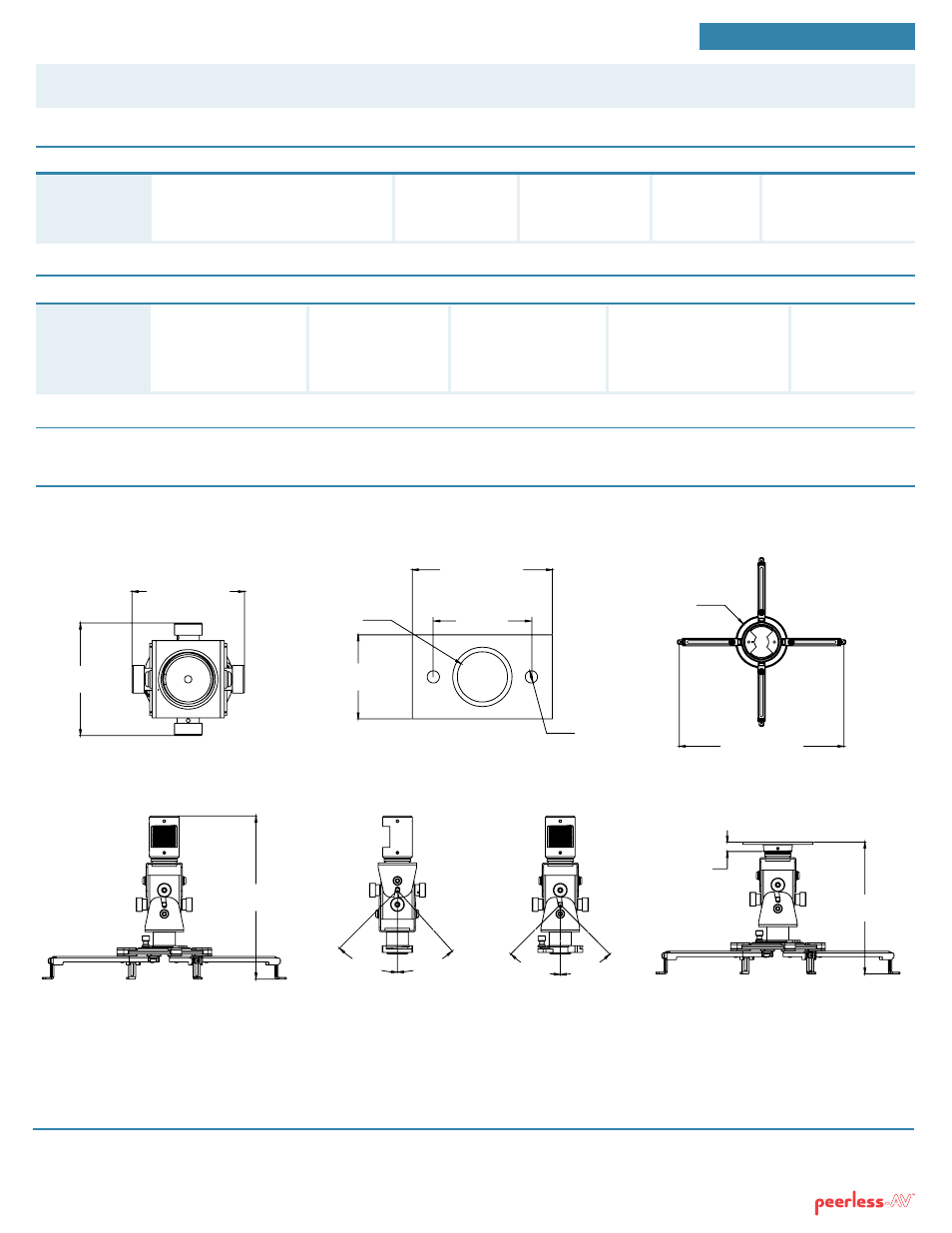

(270mm - 296mm)
10.64" - 11.64"
FROnt VIEW
25° 25°
SWIVEl RAnGES
PItCH
25° 25°
ROll
(213mm - 239mm)
8.39" - 9.39"
0.66"
(17mm)
FROnt VIEW
WItH CEIlInG PlAtE
4.02"
(102mm)
4.02"
(102mm)
tOP VIEW
17.65"
(448mm)
Ø5.55"
(141mm)
unIVERSAl AdAPtER PlAtE
5.00"
(127mm)
3.50"
(89mm)
3.00"
(76mm)
1-1/2 x 11.5 NPT
Ø0.44"
(11mm) CEIlInG PlAtE
