Package Specifications
Accessories
Product Specifications
Model Numbers
Warranty: limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Universal Projector Wall Arm shall be a Peerless model PST%-028(-W) and shall be located where indicated on the plans.
It shall be constructed of heavy gauge cold rolled steel and feature scratch resistant white and black fused epoxy finish.
Assembly and installation shall be done according to instructions provided by the manufacturer.
WbK100 Double Stud Wall Plate
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
All dimensions = inch (mm)
aCC020 Projector Security Cable
psta-028 Ultra-short throw projector arm (Includes PRG-UNV) for projectors weighing up to 50lb (22kg)
pstK-028 Ultra-short throw projector kit (Includes PRG-UNV and wall plate) for projectors weighing up to 50lb (22kg)
psta-028-W Ultra-short throw projector arm (Includes PRG-UNV) for projectors weighing up to 50lb (22kg)
pstK-028-W Ultra-short throw projector kit (Includes PRG-UNV and wall plate) for projectors weighing up to 50lb (22kg)
PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
psta-028
17.13" x 4.75" x 45.75"
(435 x 120 x 1162mm)
12.24lb (5.5kg) 735029262848
Short throw arm,
PRG-UNV, installation
hardware, assembly
instructions.
PSTK Model also includes
double stud wall plate.
1
pstK-028 16.26lb (7.3kg) 735029263043
psta-028-W 12.24lb (5.5kg) 735029262855
pstK-028-W 16.26lb (7.3kg) 735029263050
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
psta-028
3.93" x 11" x 36.20"
(100 x 279 x 919mm)
11lb (4kg)
50 lb (22 Kg)
Scratch-resistant
fused epoxy
Black and White
pstK-028
18.50" x 13.11" x 36.62"
(470 x 333 x 930mm)
16lb (7kg)
psta-028-W
3.93" x 11" x 36.20"
(100 x 279 x 919mm)
11lb (4kg)
pstK-028-W
18.50" x 13.11" x 36.62"
(470 x 333 x 930mm)
16lb (7kg)
LIT-0393 rev.3
peerless Industries, Inc.  2300 White oak Circle  aurora, Il 60502  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com

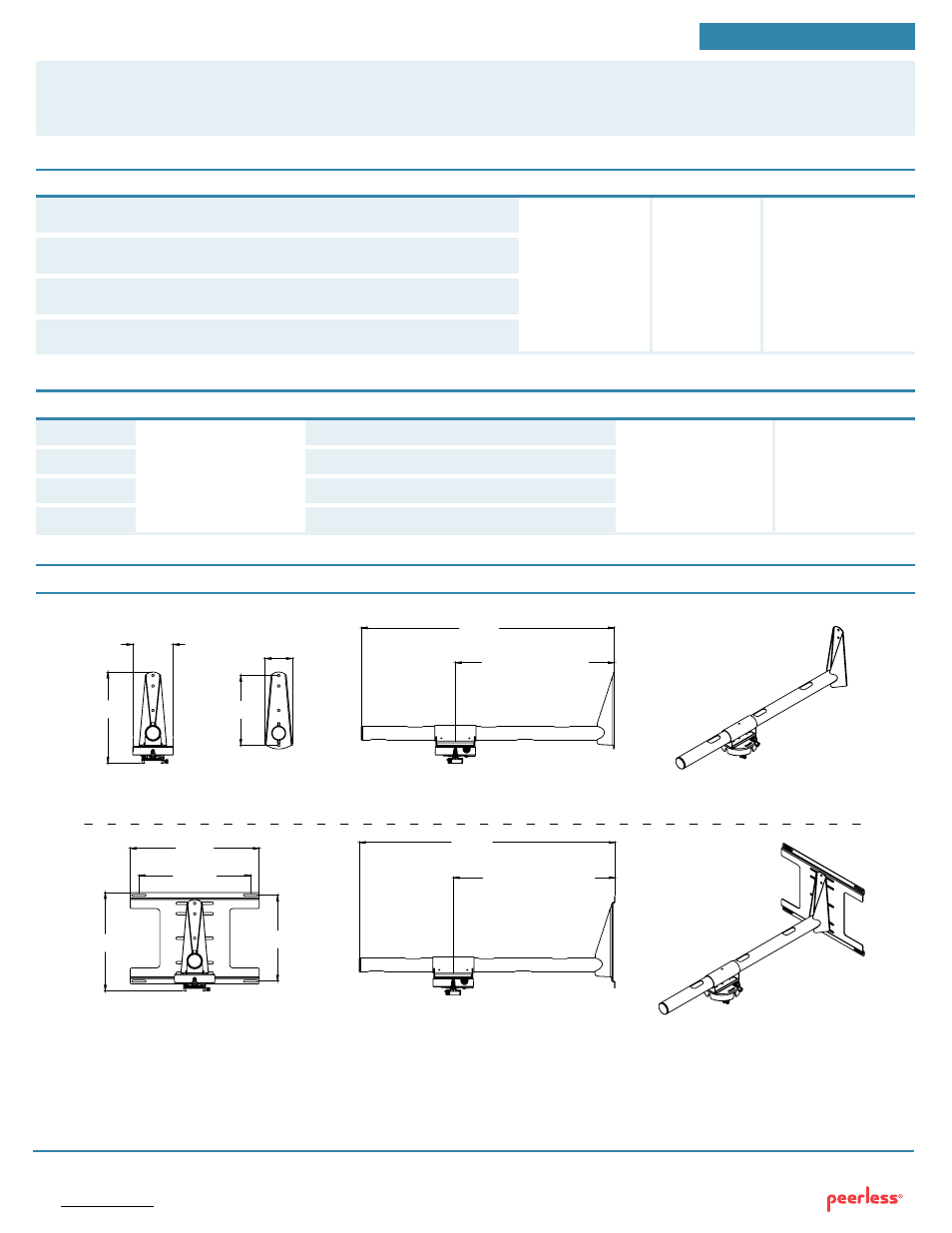

IsoMetrIC vIeW
psta-028
baCK vIeW Front vIeW
Front vIeW
sIDe vIeW
sIDe vIeW
pstK-028
IsoMetrIC vIeW
13.06"
(332mm)
5.78"
(147mm)
36.20"
(919mm)
33.00" (838mm) EXTENDED
6.00" (152mm) RETRACTED
12.31"
(313mm)
18.50in
(470mm)
14.12"
(359mm)
16.00"
(406mm)
36.61"
(930mm)
33.42" (849mm) EXTENDED
6.42" (163mm) RETRACTED
3.93"
(100mm)
10.00"
(254mm)
