3

Modbus Card Quick Guide

V.2.5

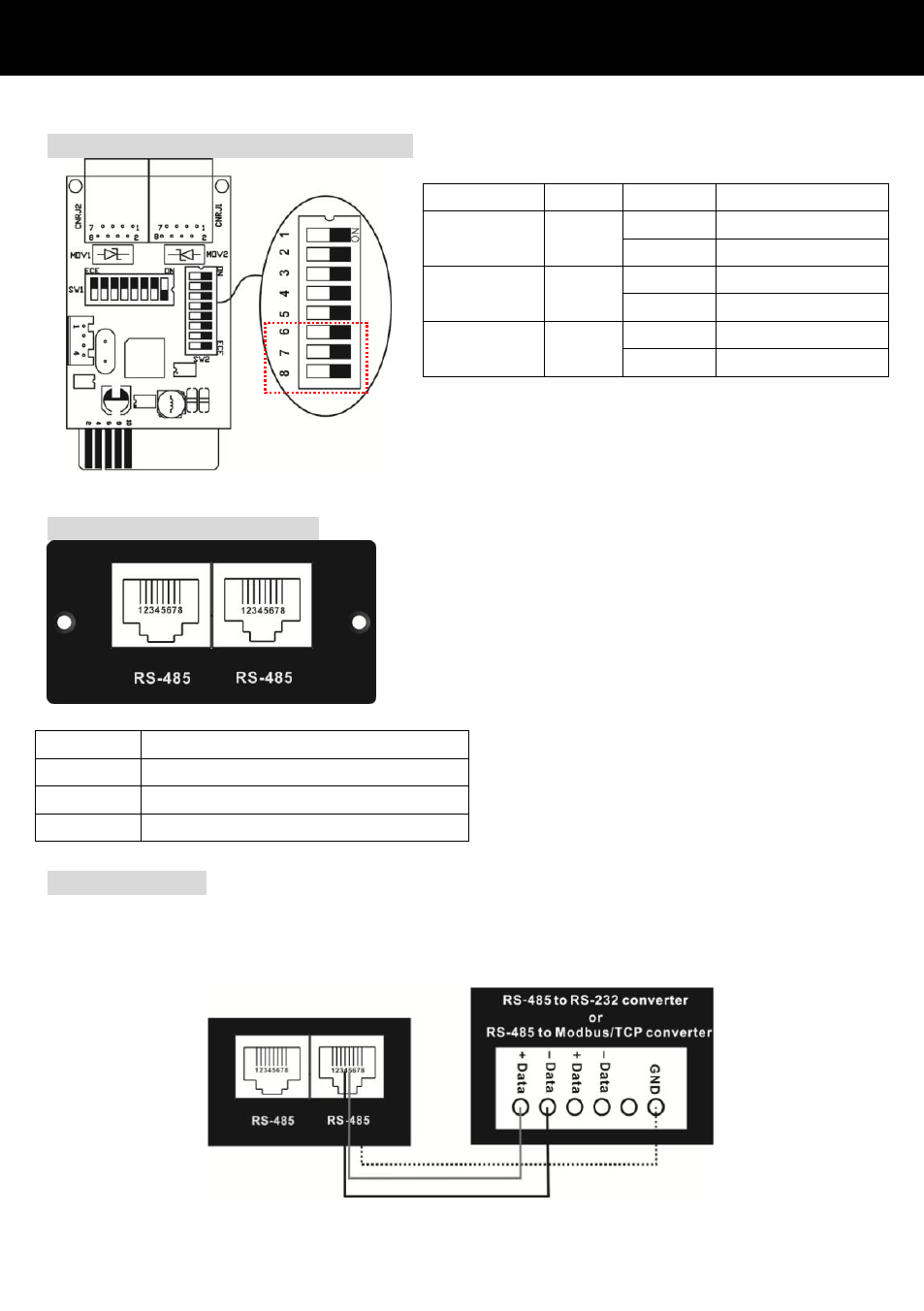

4.3 RS-485 Resistance Configuration

4.4 Interface Configuration

RS-485 Pin Configuration
Pin

Function

4

RS-485 - B

5

RS-485 - A

8

GND


4.5 Connection
First, please use one RS485 to RS 232 converter or RS-485 to Modbus/TCP converter as media
converter between Modbus card and computer. Please follow below chart for wiring connection
between RJ45 and media converter:

Wiring connection between RJ45 and media converter

Function

Bit #

Setting

Meaning

Push up
resistance

# 6

ON

Enable (Default)

OFF

Disable

Push down
resistance

# 7

ON

Enable (Default)

OFF

Disable

Terminate
resistance

# 8

ON

Enable (Default)

OFF

Disable
