TO ASSEMBLE BASSINET

ATTENTION:

Playard must be fully assembled and securely

locked before installing or using the bassinet

feature. (See To Assemble Playard section)
You will need to remove the mattress from the

bottom of the Playard to use inside your Bassinet.

1. Position the Bassinet over and down into the

fully assembled Playard. Secure in place by

pushing down firmly on each plastic support

clip until all are snapped into place (Fig. 18).

2. Assemble Mattress Support Tubes (if

equipped) by inserting the two (2) male tubes

into the two (2) female tubes (Fig. 19).

3. Insert both, assembled, Mattress Support

Tubes into the loops provided on the bottom

of the Bassinet (Fig. 20).

NOTE: The printed WARNING label should

be facing toward the inside of the Bassinet so

that it is readable.

4. Place the Mattress into the Bassinet with the

padded side facing upward (Fig. 21)

NOTE: Velcro® tabs underneath the Mattress

secure it in place.

TO REMOVE BASSINET

1. Remove Mattress from Bassinet.
2. Remove Canopy.
3. Unsnap all clips and lift Bassinet.

ASSEMBLY

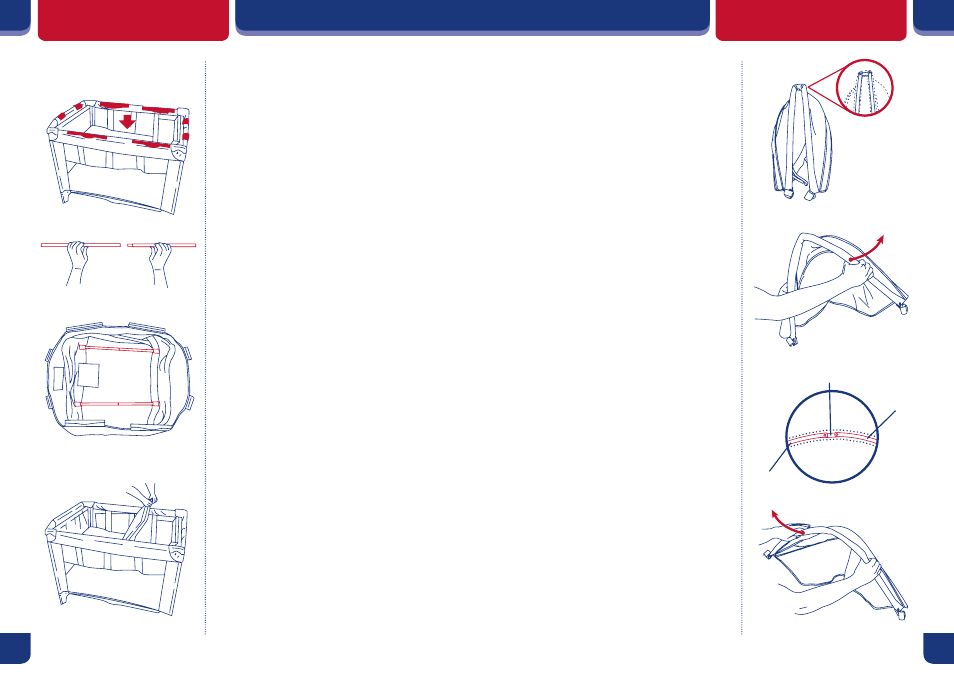

Fig. 18

Fig. 19

Fig. 20

Fig. 21

TO ASSEMBLE CANOPY

ATTENTION:

If the equipped Canopy comes in "U" shape

(Fig. 22), you need to assemble the Canopy before

attach to the playard. If the Canopy comes in "C"

shape, skip to step 3.

1. Open Canopy as seen in Fig. 23, make

opening adjustments at the top of Canopy by

aligning the inner center strap with the two

outer straps. (Fig 24.)

2. Open Canopy completely and feel the top

center of the Canopy to ensure that the straps

are aligned correctly so the Canopy fits on the

Playard. (Fig 25.)

ASSEMBLY

Inner center strap

Outer strap

Fig. 24

Fig. 23

Fig. 25
