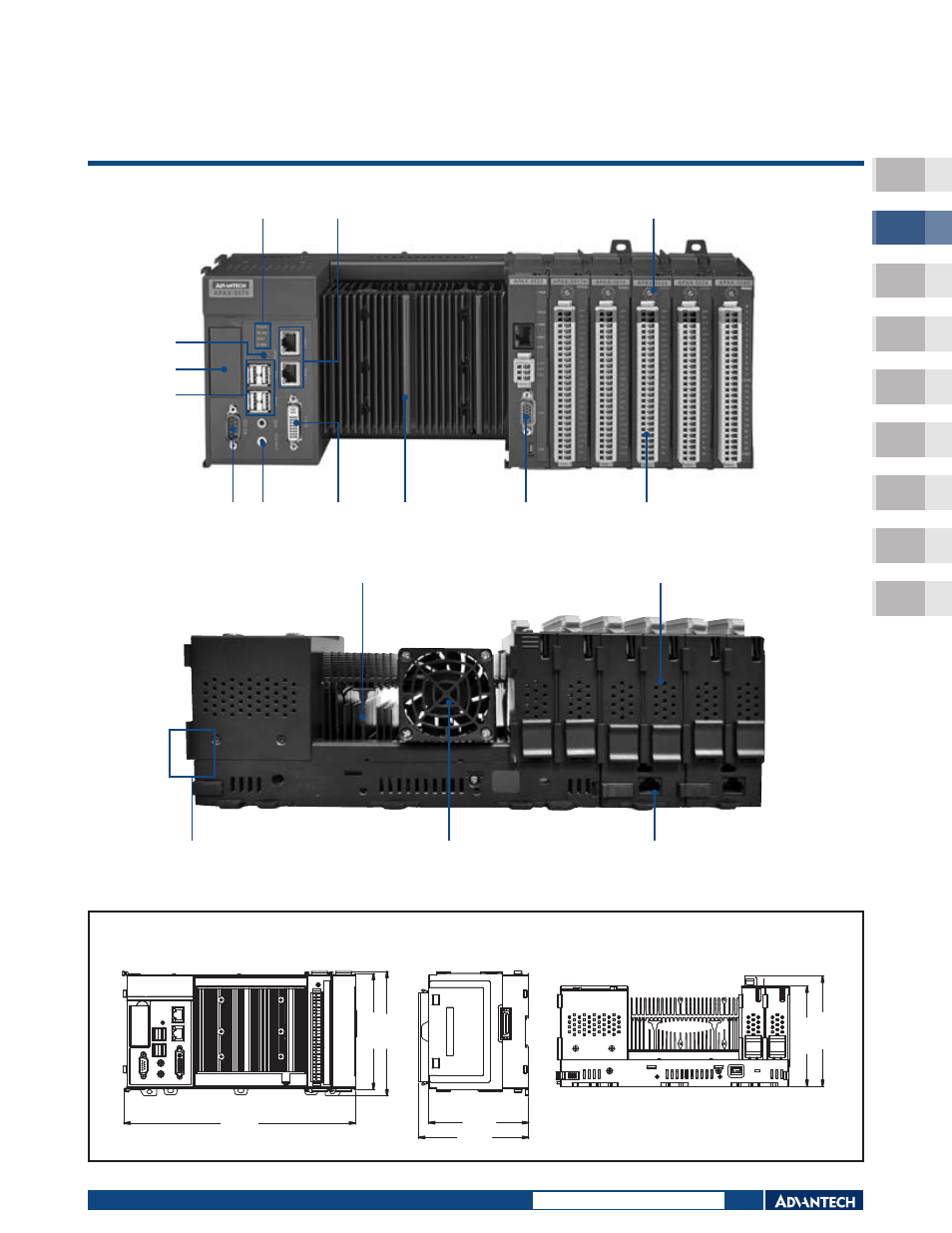

APAX-5570XPE
APAX-5571XPE
Rotary ID Switch
I/O Modules
APAX-5520KW or APAX-5620KW
for dual-controller architecture
Heatsink
DVI-I Display
Audio
RS-232
USB
SD Card Slot and
Battery
Reset Button
Diagnostic LEDs
LAN1
LAN
Dimensions
Unit: mm
Backplane (with 1 expansion port)
Fan (APAX-5571XPE only)
Power Input and RS-422/485 Terminal
I/O Modules
Heatsink
263.49
125.30
113.90
132.00
141.50
125.30
113.90
bottom side
