Advantech APAX-5060 User Manual
Specifications, Ordering information

20-22
PC-based Controllers & I/O Modules
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
195 g
Power Consumption 2 W @ 24 V
DC
(typical)
Status Display
LED per channel
On: Logic level 1
Off: Logic level 0
Relay Output
Channels
12
Relay Type
Form A (SPST)
Contact Rating
5 A @ 250 V
AC
/30 V
DC
(Resistive load)
Switching Capacity and Lifetime of the
Contact (For Resistive Load)
VDE:
30,000 operations (5 A @ 250 V
AC
,
10 operations/minute at 8° C)
70,000 operations (5 A @ 30 V
DC
,
10 operations/ minute at 85° C)
UL:
60,000 operations (5 A @ 250 V
AC
)
100,000 operations (5 A @ 30 V
DC
)
Mechanism: 20,000,000 operations
(no load, 300 operations/min)
Contact Resistance 30 m
W (max.)
Insulation Resistance 1 G
W (min.) at 500 V
DC
Protection
2,500 V
DC
Isolation Between Channels and
Backplane
Environment
Operating
-10 ~ 60° C
Temperature
(when mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Ordering Information
APAX-5060
12-ch Relay Output Module
APAX-5001
1-slot Backplane Module
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module
APAX-5060
APAX-5046
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
165 g
Power Consumption 2.5 W @ 24 V
DC
(typical)
Status Display
LED per channel
On: Logic level 1
Off: Logic level 0
Digital Output
Channels
24 (Sink Type)
Voltage Range
8 ~ 35 V
DC
Rated Current Output 0.5 A (per channel, at signal
"1")
Leakage Current
0.1 mA (at signal "0")
Switch Rate:
Resistive load: 300 Hz (max.)
Inductive load: max. 20 Hz
(max.)
Lamp load: max. 200 Hz
(5W lamp and under 50
W,
24 V)
Protection
2,500 V
DC
Isolation Between Channels and
Backplane
Short Circuit Protection
Thermal Shutdown Protection
Environment
Operating
-10 ~ 60° C
Temperature
(when mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Ordering Information
APAX-5046
24-ch Digital Output Module
APAX-5001
1-slot Backplane Module
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module

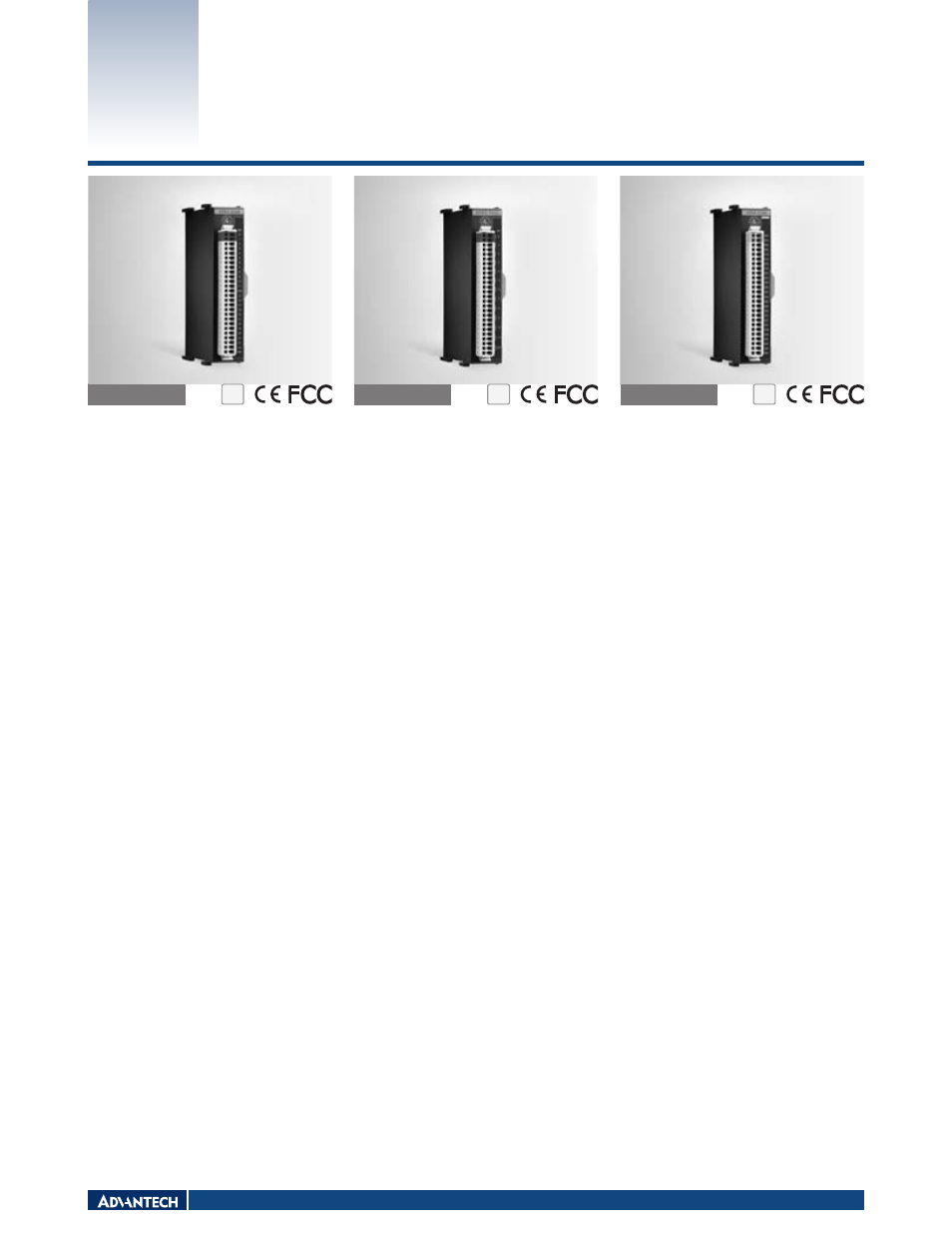

APAX-5046
APAX-5060
APAX-5080
24-ch Digital Output Module
12-ch Relay Output Module
4/8-ch High Speed Counter Module
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
170 g
Power Consumption 2.5 W @ 24 V
DC
(typical)
Status Display
LED per channel
(for DI, DO channel)
On: Logic level 1
Off: Logic level 0
Counter/Frequency Input
Channels and Mode 8 (Up and Frequency mode)
4 (Pulse/Direction, Up/Down,
A/B phase mode)
Counting Range
32-bit + 1-bit overflow/
underflow
Minimum Pulse Width 1 μs
Counter Frequency
1 MHz (max.)
Input Voltage
For "0" signal: 0 ~ 3 V
DC
For "1" signal: 10 ~ 30 V
DC
Digital Input
Channels
4
Type
Source Load
Input Voltage
For "0" signal: 0 ~ 3 V
DC
For "1" signal: 10 ~ 30 V
DC
Digital Output
Channels
4 (Sink Type)
Output Voltage Range 8 ~ 35 V
DC
Rated Output Current 0.5 A (per channel)
Protection
2,500 V
DC
Isolation Between Channels and
Backplane
Over Voltage Protection (For DI and counter
channel)
Short Circuit Protection (For DO channel)
Thermal Shutdown Protection (For DO channel)
Environment
Operating
-10 ~ 60° C
Temperature
(when mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non condensing)
Ordering Information
APAX-5080
4/8-ch High Speed Counter
Module
APAX-5001
1-slot Backplane Module
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module
APAX-5080
RoHS
COMPLIANT
2002/95/EC
