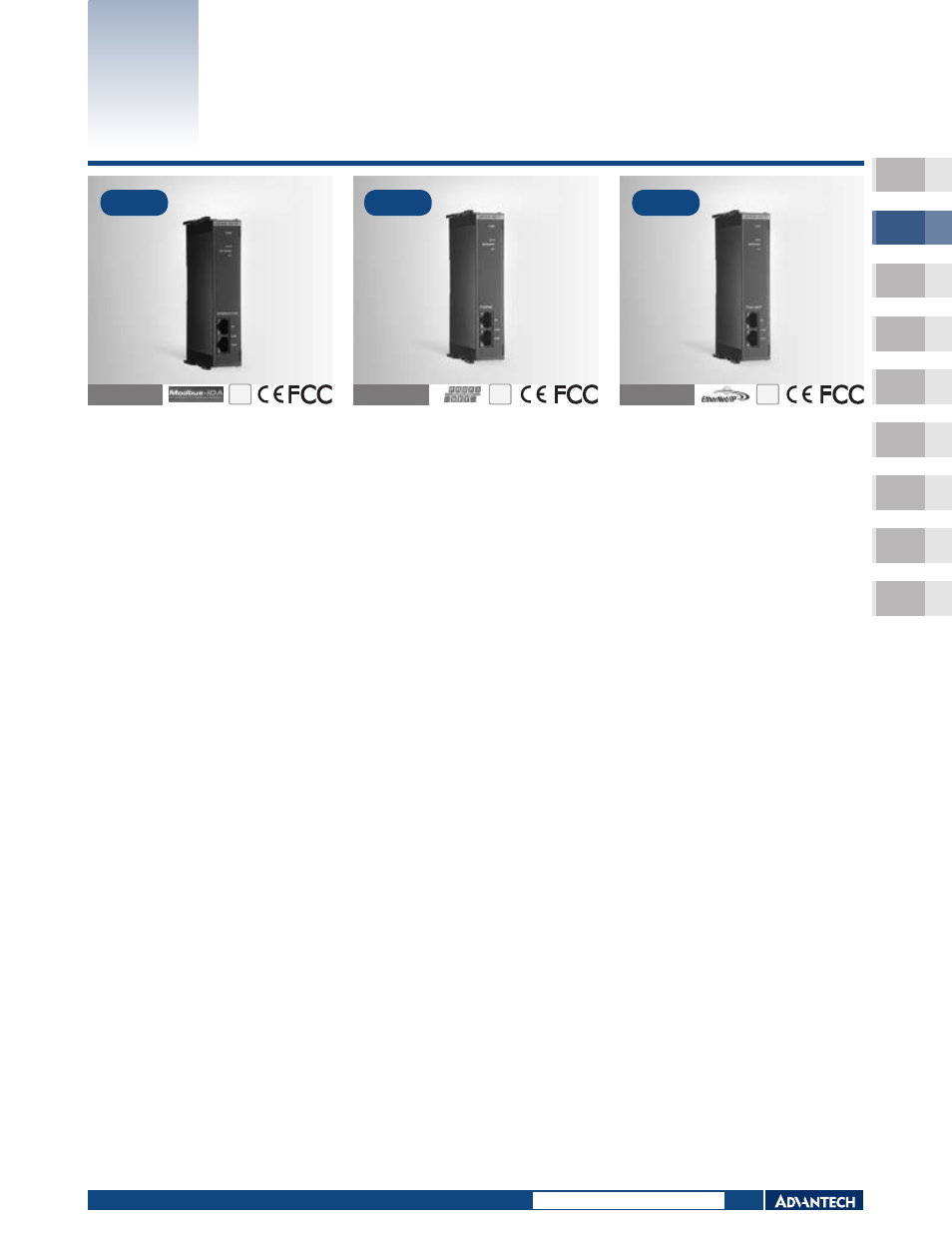

APAX-5071
APAX-5072
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
190 g
Connector
2 x RJ-45 (2-channel
switch, share same IP
address)
Power Consumption 2 W @ 5 V
DC
(typical)
Communication
Protocol
Modbus/TCP
Connected
32 (max.)*
I/O Modules
Digital Signals
2048 (max.)
Analog Signals
512 (max.)
Data Transfer Rates 10/100 Mbps
Topology
Line or star
Isolation Protection 1,500 V
AC
Environment
Operating
-10 ~ 55° C
Temperature
(mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Shock Protection
10 G @ wall mount, half
sine, 11 ms
(Confirms to IEC 60068-
2-27)
Vibration Protection 1 Grms @ 5 ~ 500 Hz
(Random, operating, 1 hr/
axis)
2 G @ 5 ~ 500 Hz (Sine,
non-operating, 1 hr/axis)
(Confirms to IEC 60068-2-
64 and IEC 60068-2-6)
Ordering Information
APAX-5070
Modbus/TCP
Communication Coupler
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module
APAX-5070
APAX-5071
APAX-5072
Modbus/TCP Communication Coupler
Profinet Communication Coupler
Ethernet/IP Communication Coupler
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
180 g
Connectors
2 x RJ-45 (2-channel
switch, share same IP
address)
Power Consumption 2 W @ 5 V
DC
(typical)
Communications
Protocol
Profinet
Connected
32 (max.)*
I/O Modules
Digital Signals
2048 (max.)
Analog Signals
512 (max.)
Data Transfer Rates 100 Mbps
Topology
Line or star
Environment
Operating
-10 ~ 55° C
Temperature
(mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Shock Protection
10 G @ wall mount, half
sine, 11 ms
(Confirms to IEC 60068-
2-27)
Vibration Protection 1 Grms @ 5 ~ 500 Hz
(Random, operating, 1 hr/
axis)
2 G @ 5 ~ 500 Hz (Sine,
non-operating, 1 hr/axis)
(Confirms to IEC 60068-2-
64 and IEC 60068-2-6)
Ordering Information
APAX-5071
Profinet Communication
Coupler
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module
Specifications
General
Certifications
CE, FCC class A
Dimensions
30 x 139 x 100 mm
(W x H x D)
Enclosure
ABS+PC
Weight
180 g
Connectors
2 x RJ-45 (2-channel
switch, share same IP
address)
Power Consumption 2 W @ 5 V
DC
(typical)
Communications
Protocol
Ethernet/IP
Connected I/O
32 (max.)*
Modules
Digital Signals
2048 (max.)
Analog Signals
512 (max.)
Data Transfer Rates 10/100 Mbps
Topology
line or star
Isolation Protection 1,500 V
AC
Environment
Operating
-10 ~ 55° C
Temperature
(mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Shock Protection
10 G @ wall mount, half
sine, 11 ms
(Confirms to IEC 60068-
2-27)
Vibration Protection 1 Grms @ 5 ~ 500 Hz
(Random, operating, 1 hr/
axis)
2 G @ 5 ~ 500 Hz (Sine,
non-operating, 1 hr/axis)
(Confirms to IEC 60068-2-
64 and IEC 60068-2-6)
Ordering Information
APAX-5072
Ethernet/IP Communication
Coupler
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX
Expansion Module
NEW
NEW
NEW
APAX-5070
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
*: APAX DI/O modules can use ID number 0 ~ 31, while AI/O modules and counter modules can only use ID numbers 0 ~ 15
