Specifications
General
Certifications
CE, FCC class A
Dimensions (W x H x D) 30 x 139 x 100 mm
Enclosure
ABS+PC
Weight
160 g
Power Consumption
2 W @ 24 V
DC
(typical)
Status Display
LED per channel
On: Logic level 1
Off: Logic level 0
Digital Input
Channels
24
Points per Common
12
Type
Sink or Source Load
Input Voltage
Rated Value: 24 V
DC
For "0" signal: - 5 ~ 5 V
DC
For "1" signal: 15 ~ 30 V
DC
and -15 ~ -30 V
DC
Input Impedance
10 k
W
Input Delay
From logic level 0 to 1: 0.2 ms
From logic level 1 to 0: 0.2 ms
Operating Frequency
3 kHz
Input Filter
3 ms
Protection
2,500 V
DC
Isolation Between Channels and Backplane
Over Voltage Protection
Environment
Operating Temperature -10 ~ 60° C (when mounted vertically)
Storage Temperature -40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Ordering Information

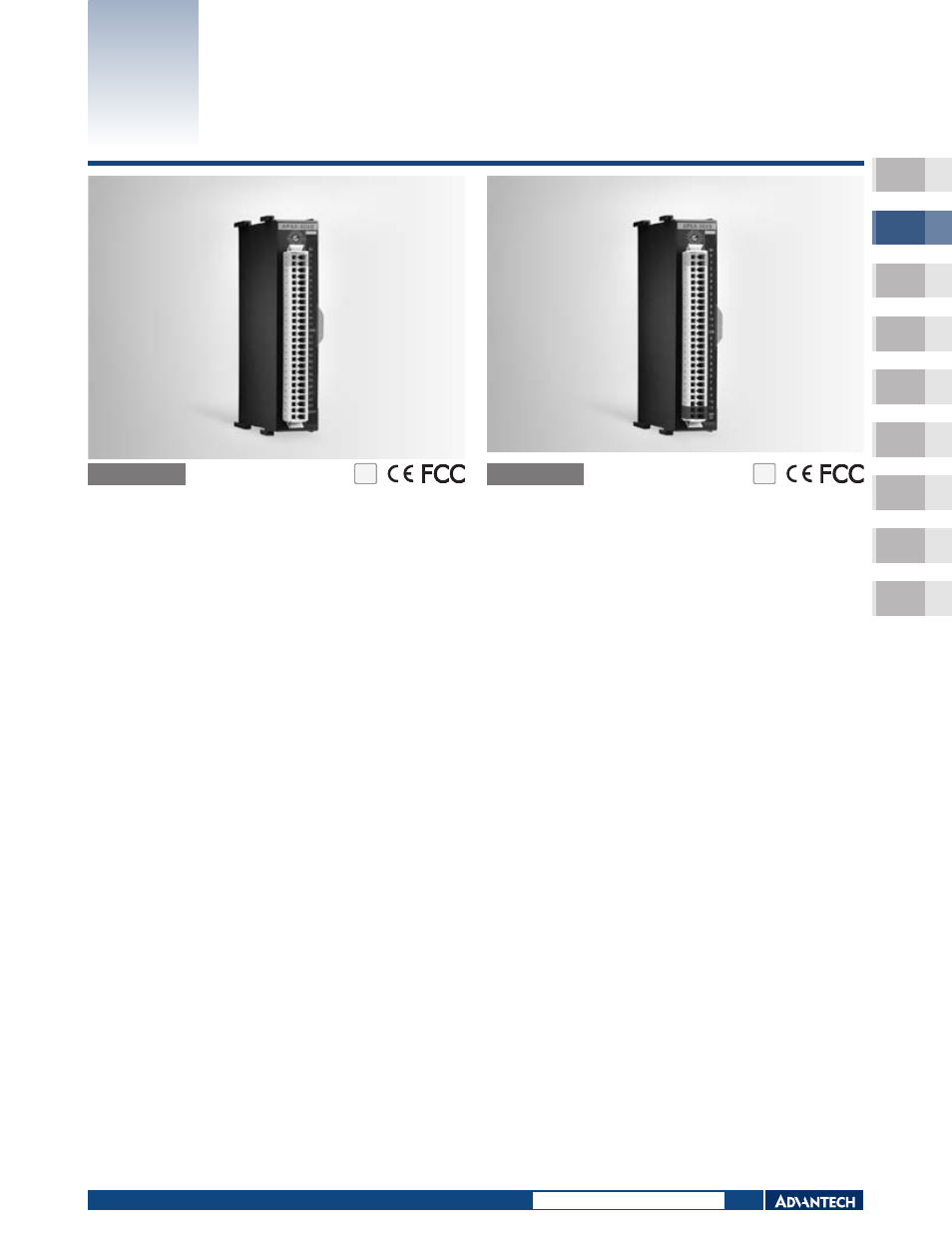

APAX-5040
24-ch Digital Input Module
APAX-5001
1-slot Backplane Module
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX Expansion Module
APAX-5040
APAX-5040
APAX-5045
24-ch Digital Input Module
24-ch Digital Input/Output Module
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
Specifications
General
Certifications
CE, FCC class A
Dimensions (W x H x D) 30 x 139 x 100 mm
Enclosure
ABS+PC
Weight
165 g
Power Consumption
2.5 W @ 24 V
DC
(typical)
Status Display
LED per channel
On: Logic level 1
Off: Logic level 0
Digital Input
Channels
12
Points per Common
12
Type
Sink or Source Load
Input Voltage
Rated Value: 24 V
DC
For "0" signal: - 5 ~ 5 V
DC
For "1" signal: 15 ~ 30 V
DC
and -15 ~ -30 V
DC
Input Impedance
10 K
W
Input Delay
From Logic level 0 to 1: 0.2 ms
From Logic level 1 to 0: 0.2 ms
Operating Frequency
3 kHz
Input Filter
3 ms
Digital Output
Channels
12 (Sink)
Voltage Range
8 ~ 35 V
DC
Rated Current Output
0.5 A (per channel, at signal "1")
Permitted Current Output Max. 0.75 A (at signal "1")
Leakage Current
0.1 mA (at signal "0")
Switch Rate:
Resistive load: 300 Hz (max.)
Inductive load: max. 20 Hz (max.)
Lamp load: max. 200 Hz (5W lamp and under 50
W, 24 V)
Protection
2,500 V
DC
Isolation Between Channels and Backplane
Over Voltage Protection (for DI channel)
Short Circuit Protection (For DO channel)
Thermal Shutdown Protection (For DO channel)
Environment
Operating Temperature -10 ~ 60° C (mounted vertically)
Storage Temperature
-40 ~ 70° C
Relative Humidity
5 ~ 95% (non-condensing)
Ordering Information
APAX-5045
24-ch Digital Input/Output Module
APAX-5001
1-slot Backplane Module
APAX-5002
2-slot Backplane Module
APAX-5343E
Power Supply for APAX Expansion Module
APAX-5045
