General Description
The MAX2130 broadband, low-distortion, low-noise,
two-output amplifier performs preamp, loop-out, and
buffer functions in TV tuner applications. The device
integrates functions typically achieved with discrete
components into the space-saving 8-pin µMAX-EP
package. The MAX2130 provides a gain of +15dB with
a noise figure less than 3.2dB over the 44MHz to
878MHz frequency range. The MAX2130 features an
externally adjustable bias control, set with a single
resistor, that allows the user to meet minimum linearity
requirements while reducing current consumption. The
device operates from a +5V single supply and only
requires 93mA of supply current when nominally
biased.
________________________Applications
DVB-T Digital Broadcast Receivers
Digital/Terrestrial TV Tuners
Set-Top Boxes
Cable Modems
Analog TV Tuners
Features
♦ +5V Single-Supply Operation
♦ 44MHz to 878MHz Operating Frequency Range
♦ Guaranteed 7.4dB (min) Input Return Loss Over
Frequency Range
♦ LNA Performance at I
CC = 93mA (R BIAS = 15k Ω)
15dB Gain
2.8dB Noise Figure
+17.5dBm Input IP3
+27dBm Input IP2
+2.7dBm Input 1dB Compression Point
♦ Loop-Out Amplifier Performance at I
CC = 93mA
(R BIAS = 15k
Ω)
8.7dB Gain
4.2dB Noise Figure
+17dBm Input IP3
+29dBm Input IP2
-0.5dBm Input 1dB Compression Point
♦ Programmable Linearity vs. Supply Current
MAX2130
Broadband, Two-Output, Low-Noise
Amplifier for TV Tuner Applications
________________________________________________________________ Maxim Integrated Products 1
MAX2130
47pF 1000pF 10 µF
V CC
V CC
IN
BIAS
OUT1
GND
GND
OUT2
INPUT
0.1 µF
DAC
V ADJ
R ADJ
R BIAS
15k
1.2V
220pF 1000pF
V
CC
0.1 µF
LNA
OUTPUT
0.1 µF
LOOP-OUT
OUTPUT
OPTIONAL: DYNAMIC
LINEARITY ADJUSTMENT CIRCUIT
CHOKE
MURATA
BLM11A221S
GND

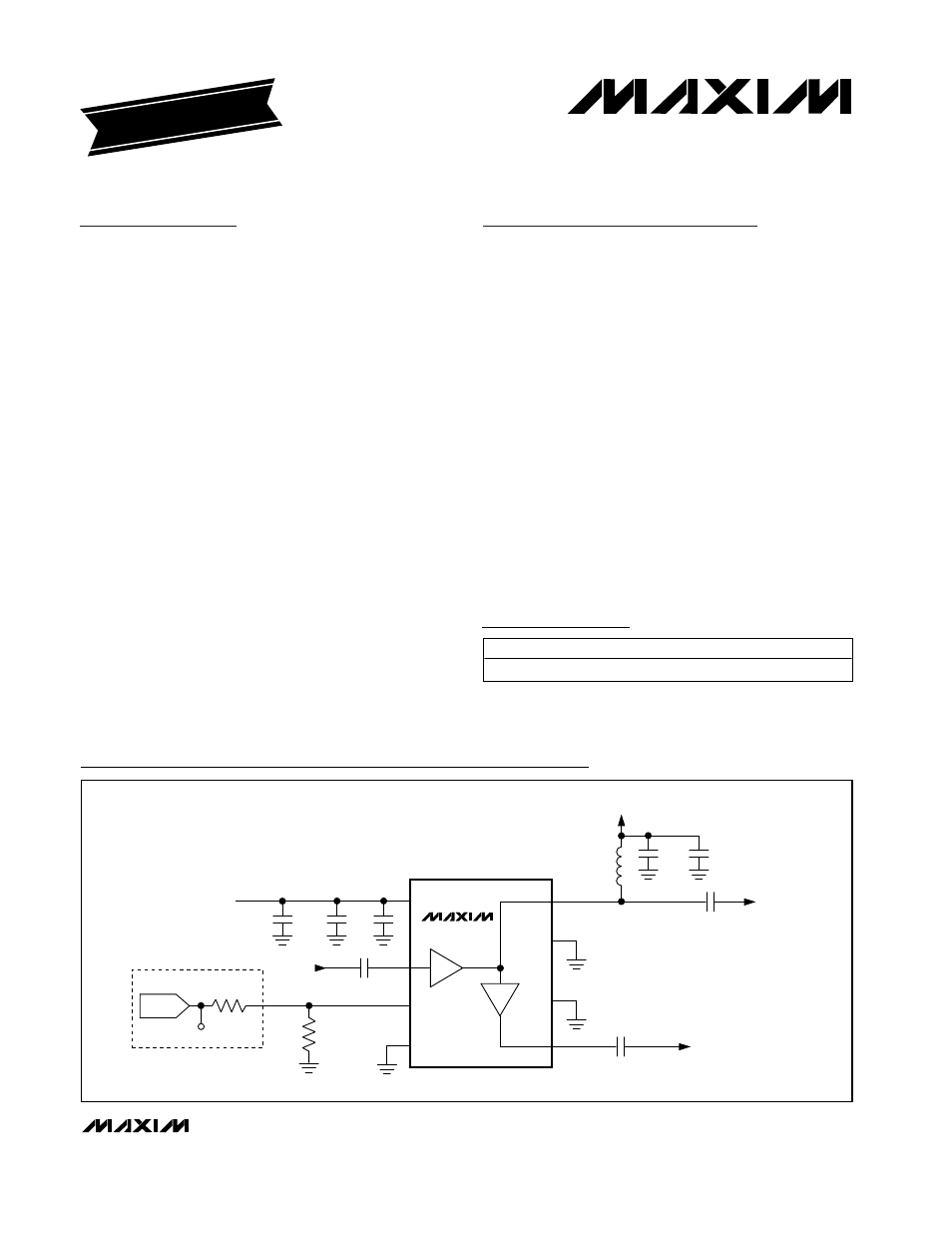

Typical Operating Circuit
19-1806; Rev 0; 10/00
Ordering Information
*Exposed paddle
Pin Configuration appears at end of data sheet.
PART TEMP. RANGE PIN-PACKAGE
MAX2130EUA -40 °C to +85°C 8 µMAX-EP*
EVALUATION KIT
AVAILABLE
