Max2203 rms power detector, General description, Applications

General Description
The MAX2203 RMS power detector is designed to
operate from 800MHz to 2.0GHz. The device is ideal for
wideband code-division multiple access (WCDMA),
cdma2000
®
, and high-speed downlink/uplink packet
access. The MAX2203 accepts an RF signal at the
input and outputs the same voltage regardless of the
peak-average of the input signal. The output voltage
and input power is linear in dB. The device has a
-24dBm to +3dBm detection range, and every dB
change in input power gives 35mV (typ) change in out-
put voltage.
The MAX2203 operates from a 2.5V to 4.2V supply and
is specified over the -40°C to +85°C extended tempera-
ture range. The device is available in a 6-bump WLP
package.
Applications
WCDMA, cdma2000, 1xEVDO
High-Speed Downlink Packet Access (HSDPA)
High-Speed Uplink Packet Access (HSUPA)
Features
♦ -24dBm to +3dBm Power-Detection Range
♦ 35mV/dB (typ) Log Detector
♦ 0.1dB (typ) RMS Accuracy from WCDMA
Modulation Change
♦ ±0.4dB Detection Error Due to Temperature
♦ +2.5V to +4.2V Single-Supply Operation
♦ Space-Saving 6-Bump WLP Package
MAX2203
RMS Power Detector
________________________________________________________________
Maxim Integrated Products
1
V
CC
A
1
2
+
RFIN/ENA
GND
OUT
FILT
GND
TOP VIEW
(BUMPS ON BOTTOM)
B
C
MAX2203

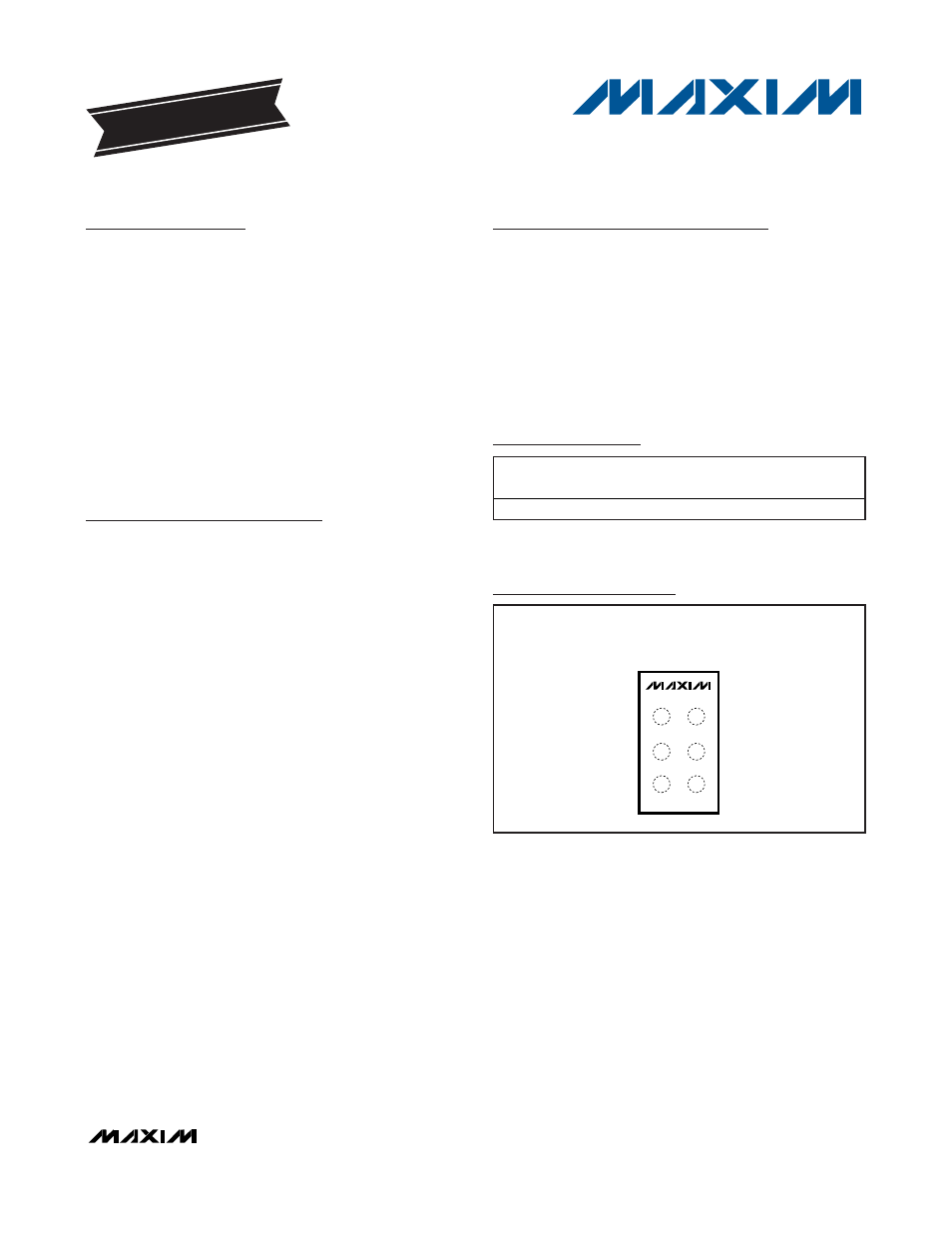

Pin Configuration
Ordering Information
19-4982; Rev 0; 10/09
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
EVALUATION KIT
AVAILABLE
PART
TEMP RANGE
PIN-
PACKAGE
TOP
MARK
MAX2203EWT+T10 -40
°C to +85°C 6
WLP
AA
+
Denotes a lead(Pb)-free/RoHS-compliant package.
T = Tape and reel.
Typical Operating Circuit appears at end of data sheet.
cdma2000 is a registered trademark of Telecommunications
Industry Association.
