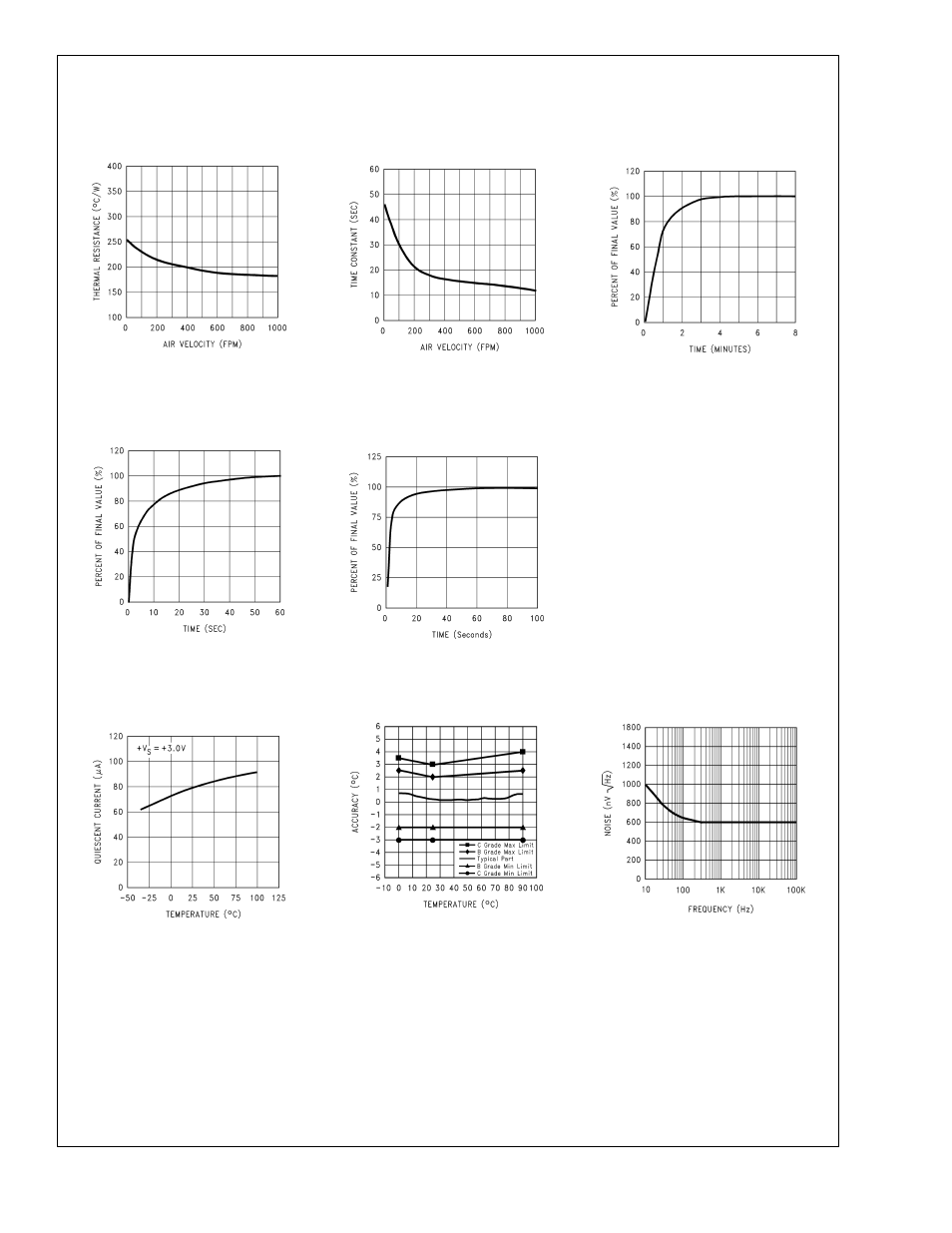

Typical Performance Characteristics
To generate these curves the LM62 was mounted to a printed
circuit board as shown in
Figure 2.
Thermal Resistance
Junction to Air
DS100893-3
Thermal Time Constant
DS100893-4
Thermal Response in
Still Air with Heat Sink
DS100893-5
Thermal Response
in Stirred Oil Bath
with Heat Sink
DS100893-6
Thermal Response in Still
Air without a Heat Sink
DS100893-8
Quiescent Current
vs. Temperature
DS100893-9
Accuracy vs Temperature
DS100893-10
Noise Voltage
DS100893-11
LM62
www.national.com
3
